Fuel Tank

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

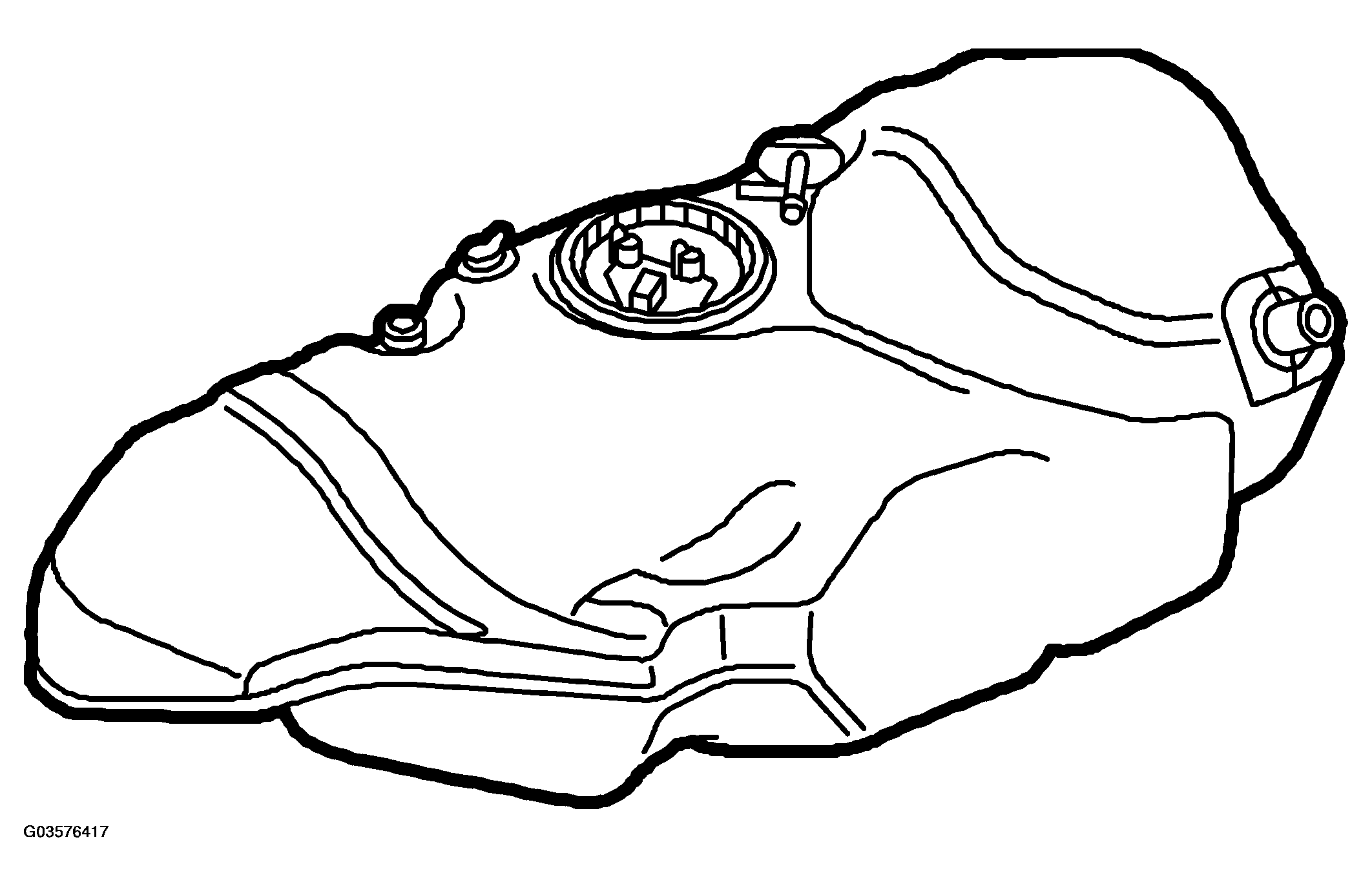

Fig 1: View Of Fuel Tank
G03576417Courtesy of SAAB-SCANIA OF AMERICA, INC.

The tank volume is 64 liters. All the components are welded except the pressure sensor and the fuel pump.
