DTC P1455: EVAP Tank Pressure Sensor - Serious Leakage In System And Malfunctional Fuel Level Sensor: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

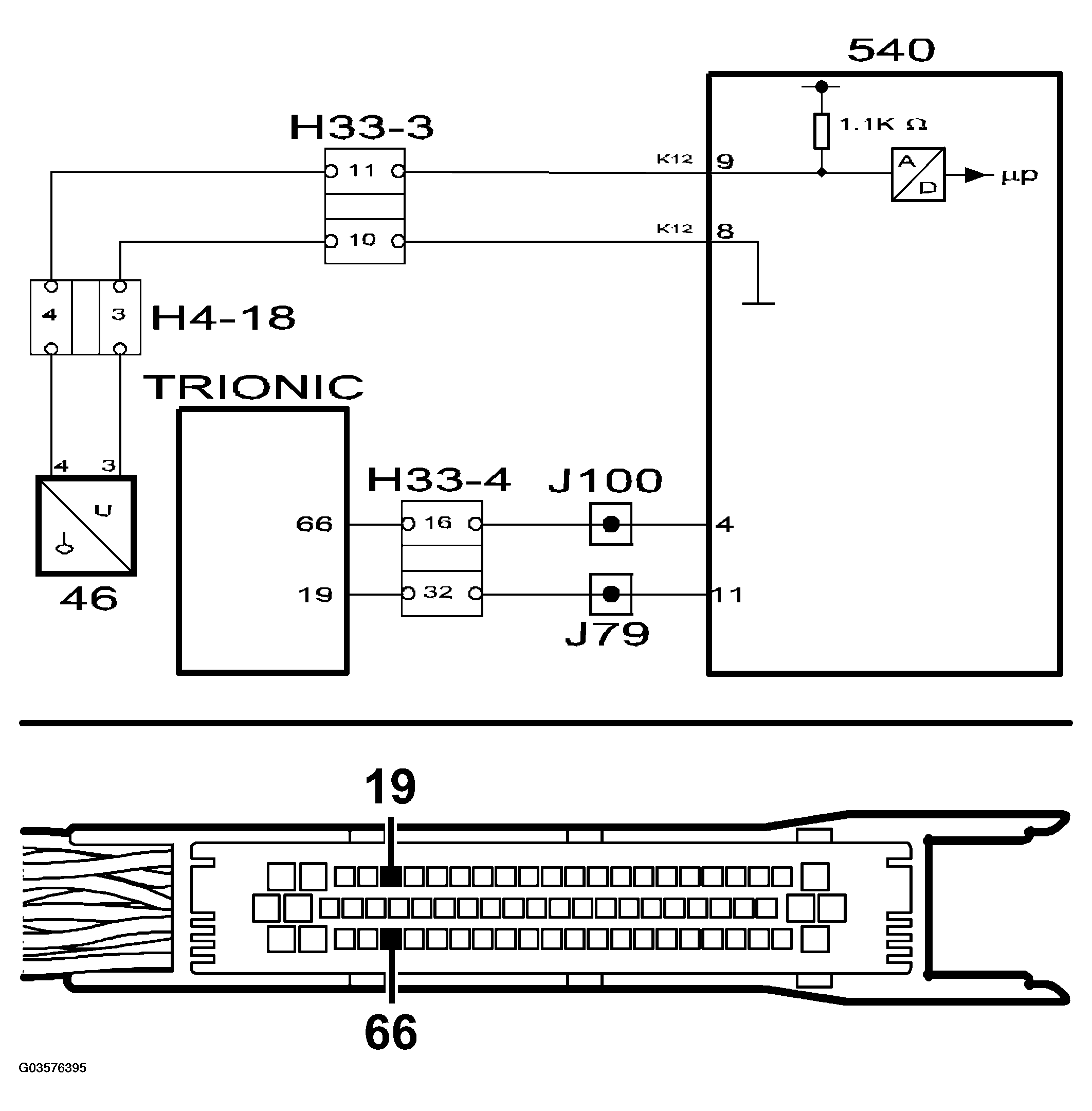

Fig 1: Tank Pressure Sensor Malfunction Circuit Diagram (Serious Leakage)
G03576395Courtesy of SAAB-SCANIA OF AMERICA, INC.

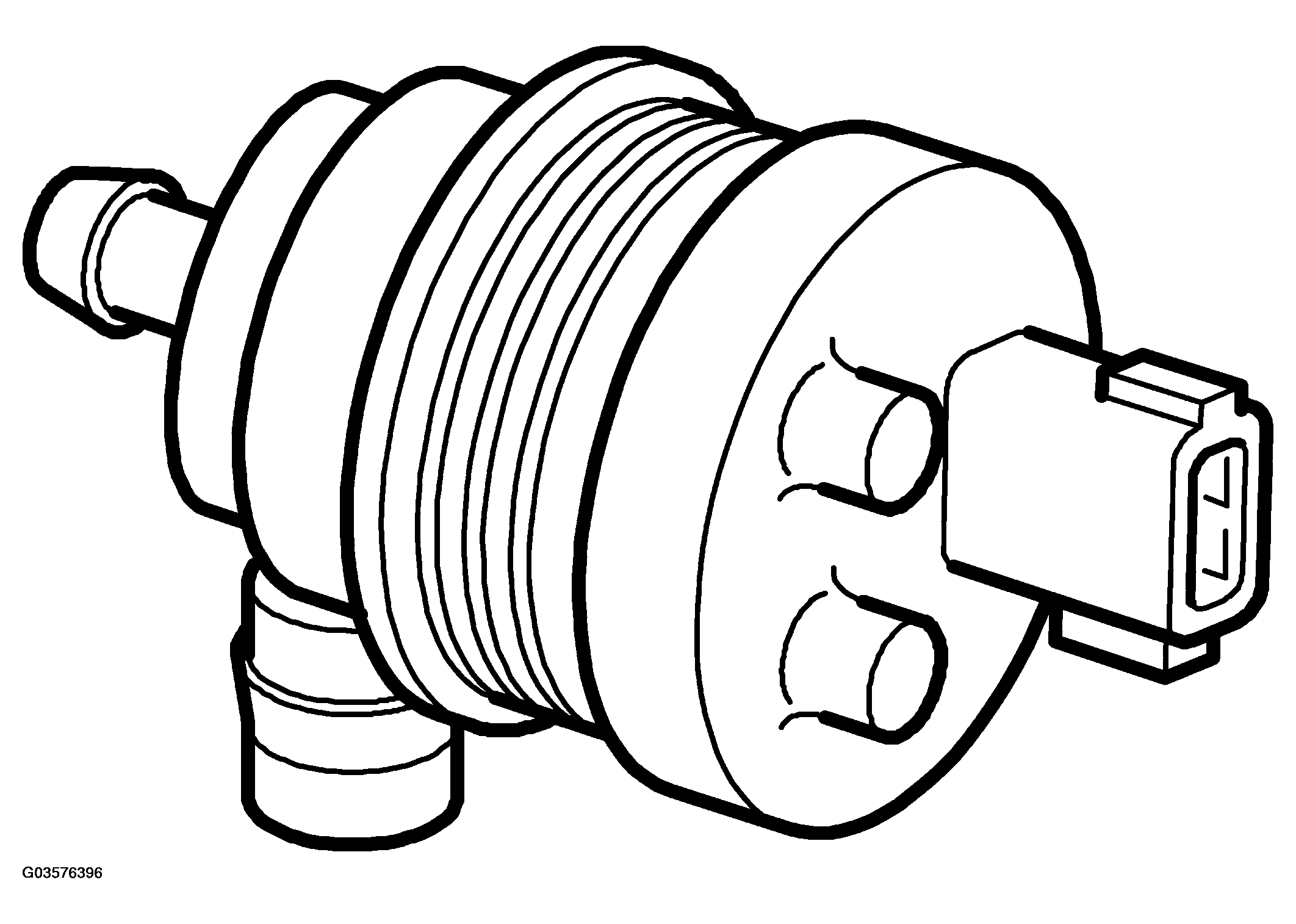

Fig 2: View Of EVAP Tank Pressure Sensor
G03576396Courtesy of SAAB-SCANIA OF AMERICA, INC.
