Fault symptoms: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

CHECK ENGINE comes on after two driving cycles.

Possible smell of petrol.

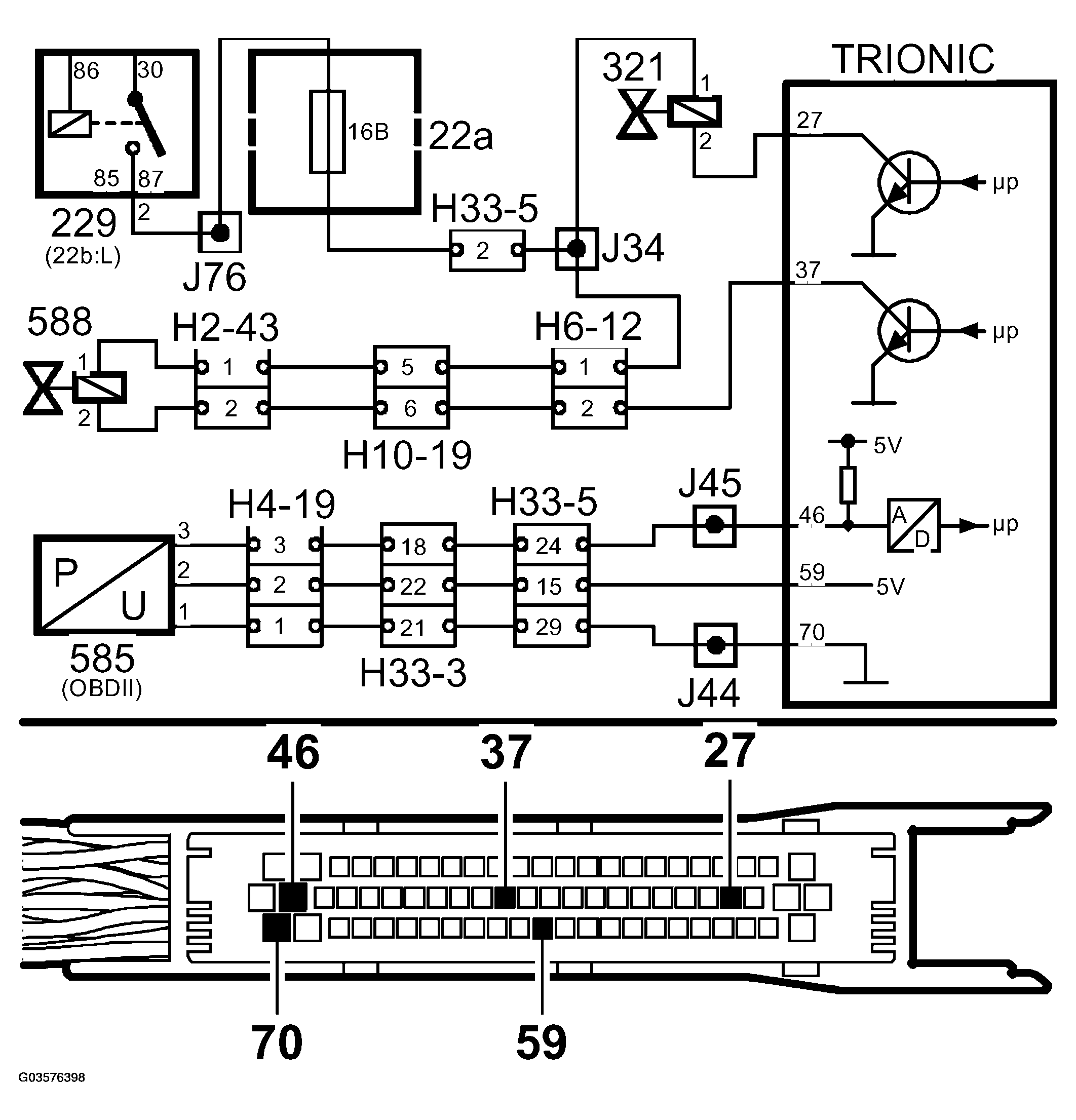

Fig 1: Circuit Diagram - System Leakage
G03576398Courtesy of SAAB-SCANIA OF AMERICA, INC.
