DTC P0453: EVAP Tank Pressure Sensor Circuit - Open/Short to B+: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

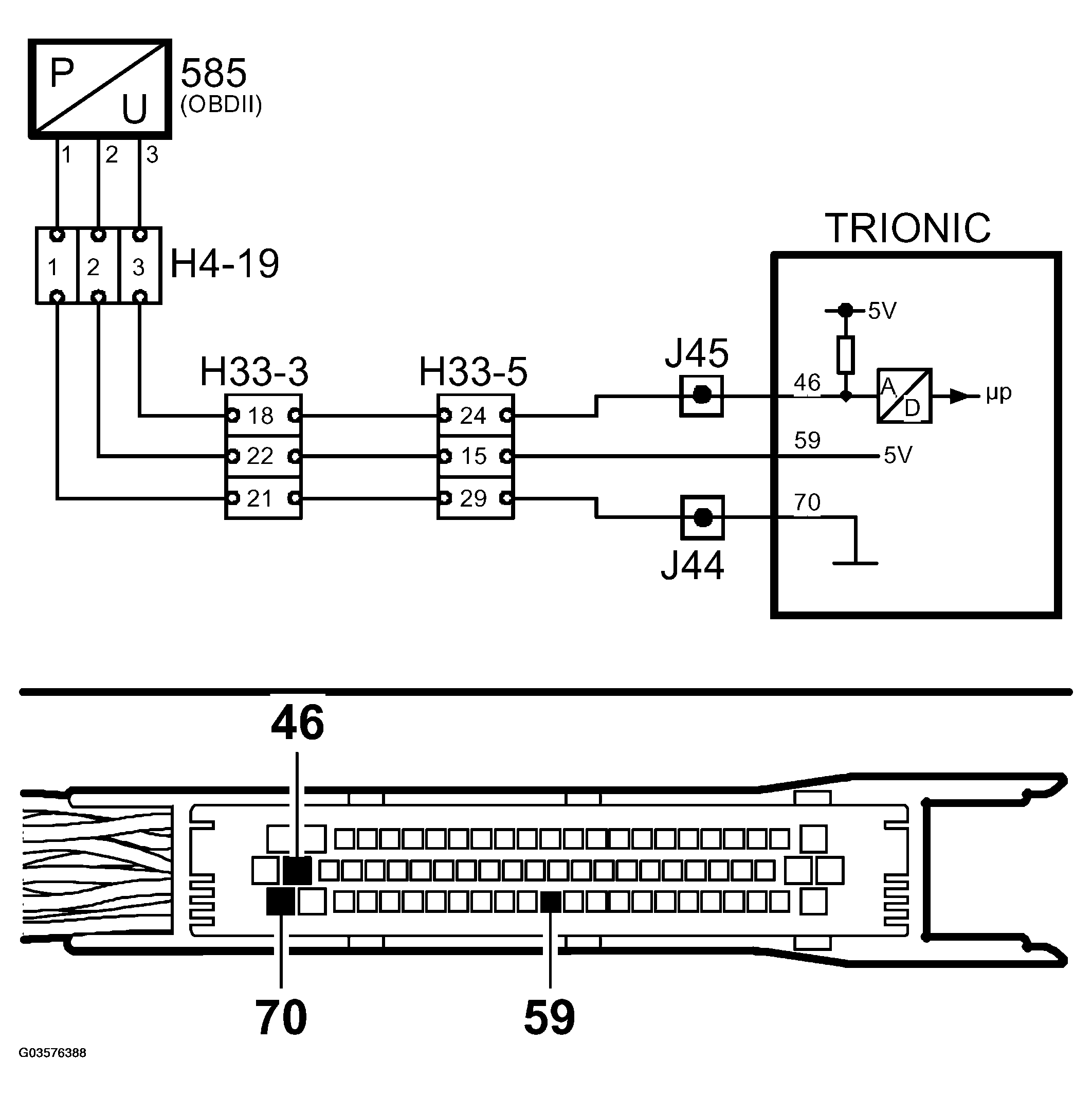

Fig 1: EVAP Tank Pressure Sensor Circuit Diagram (Short To B+)
G03576388Courtesy of SAAB-SCANIA OF AMERICA, INC.
