DTC P0452: EVAP Tank Pressure Sensor Circuit - Short to Ground: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

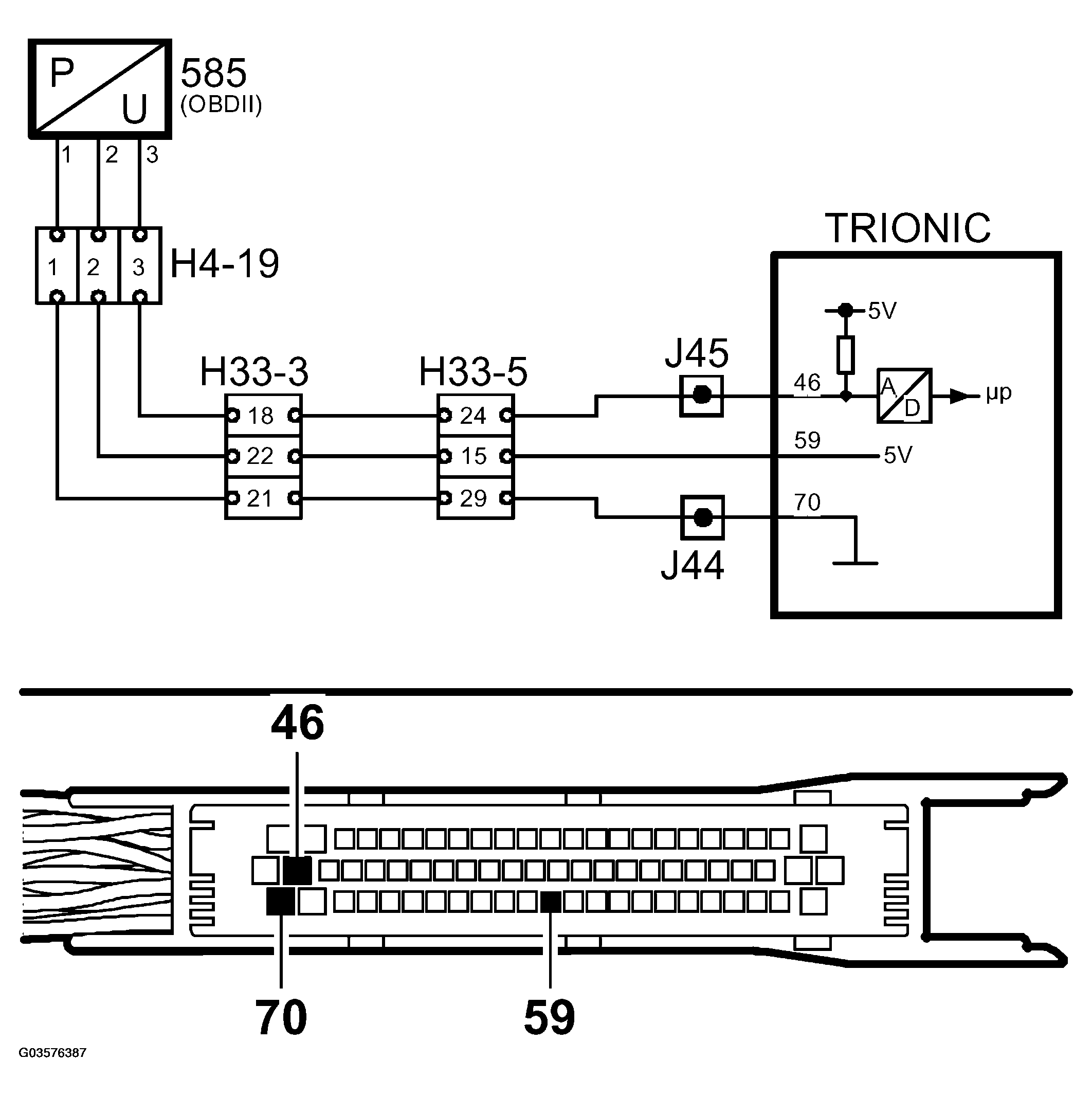

Fig 1: EVAP Tank Pressure Sensor Circuit Diagram (Short To Ground)
G03576387Courtesy of SAAB-SCANIA OF AMERICA, INC.
