DTC P0444: EVAP Purge Valve Circuit - Open/Short to Ground: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

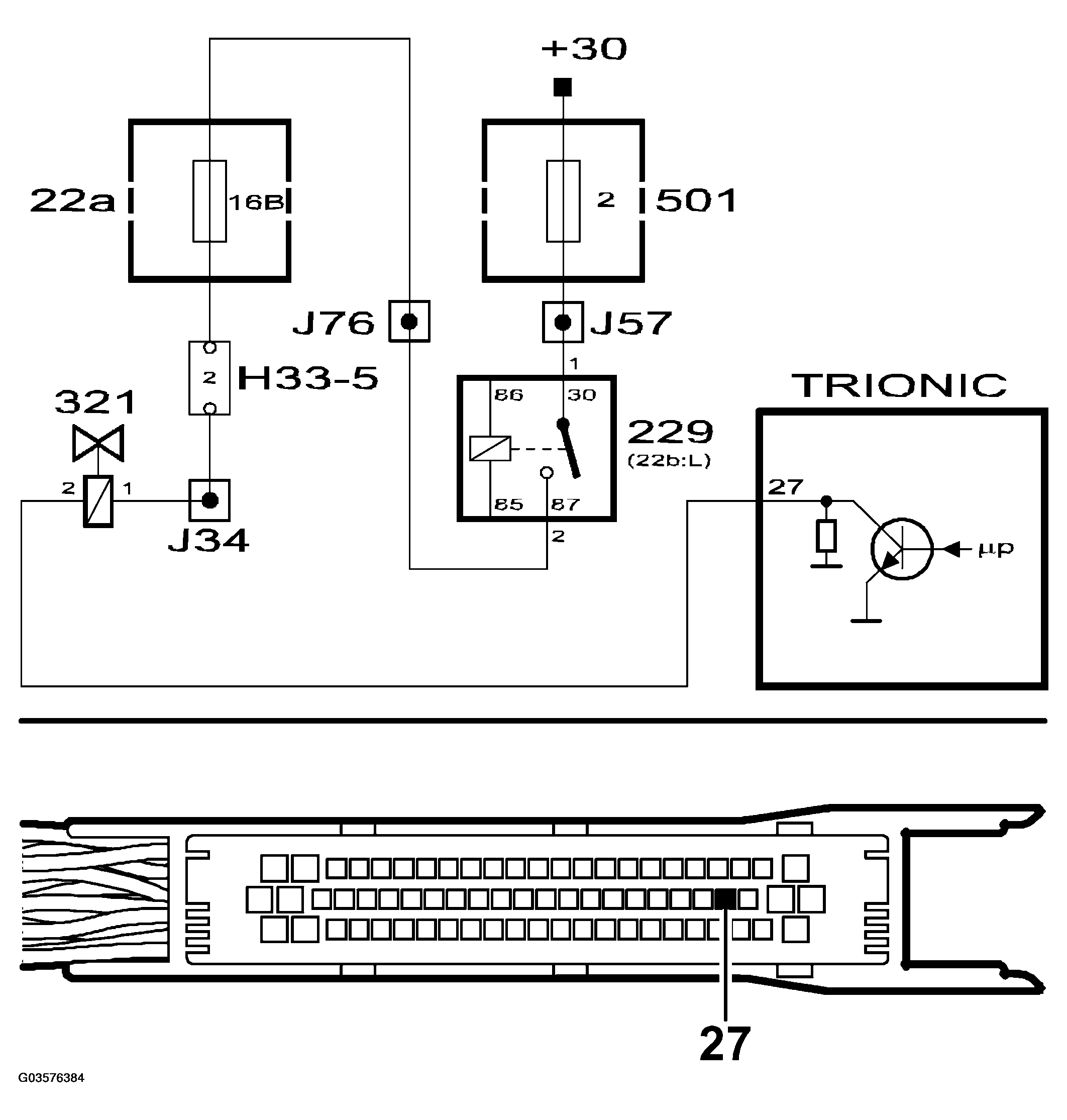

Fig 1: EVAP Purge Valve Circuit Diagram (Open/ Short To Ground)
G03576384Courtesy of SAAB-SCANIA OF AMERICA, INC.
