Purge Valve, EVAP Canister (321)

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

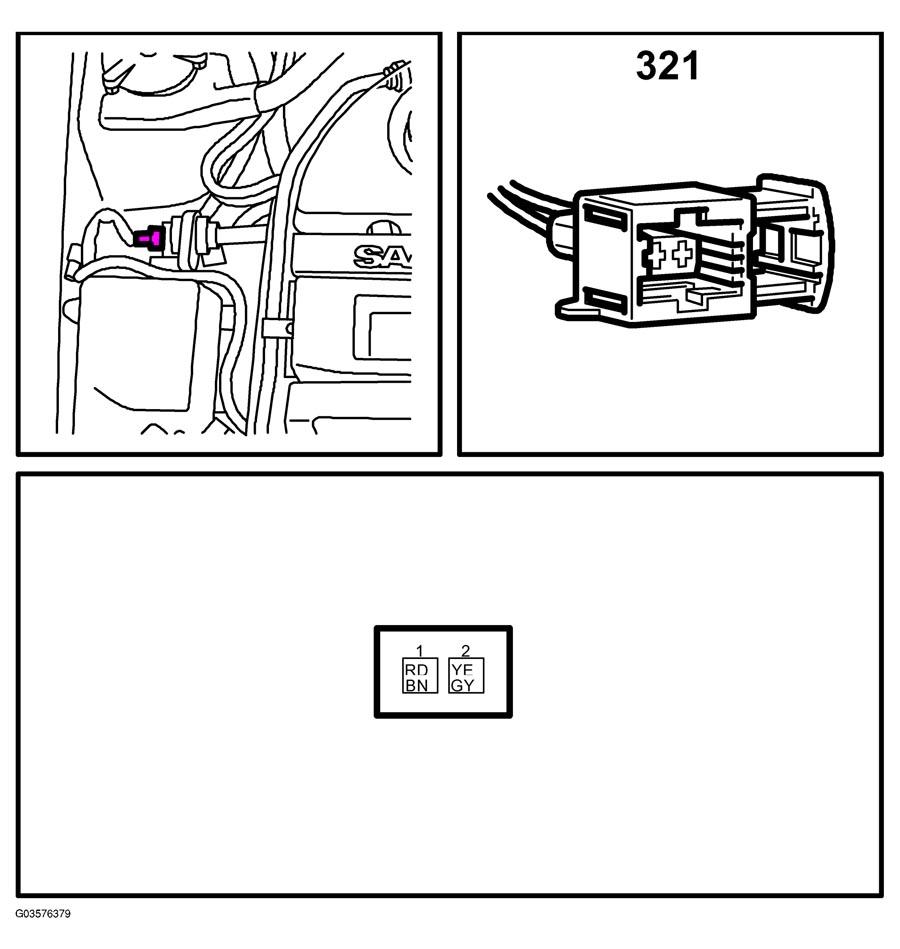

Fig 1: Identifying EVAP Canister Purge Valve Connector Pin-Outs
G03576379Courtesy of SAAB-SCANIA OF AMERICA, INC.
