To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the valve to the hose. Make sure that the opening for the cable is correctly positioned.
  2. Spray with Kontakt 61 and plug in the connector.
  3. Carefully lower the valve into the vent pipe.
    IMPORTANT: Be careful with the foam rubber filter so that it is not damaged or incorrectly positioned.
  4. Fit the cover.

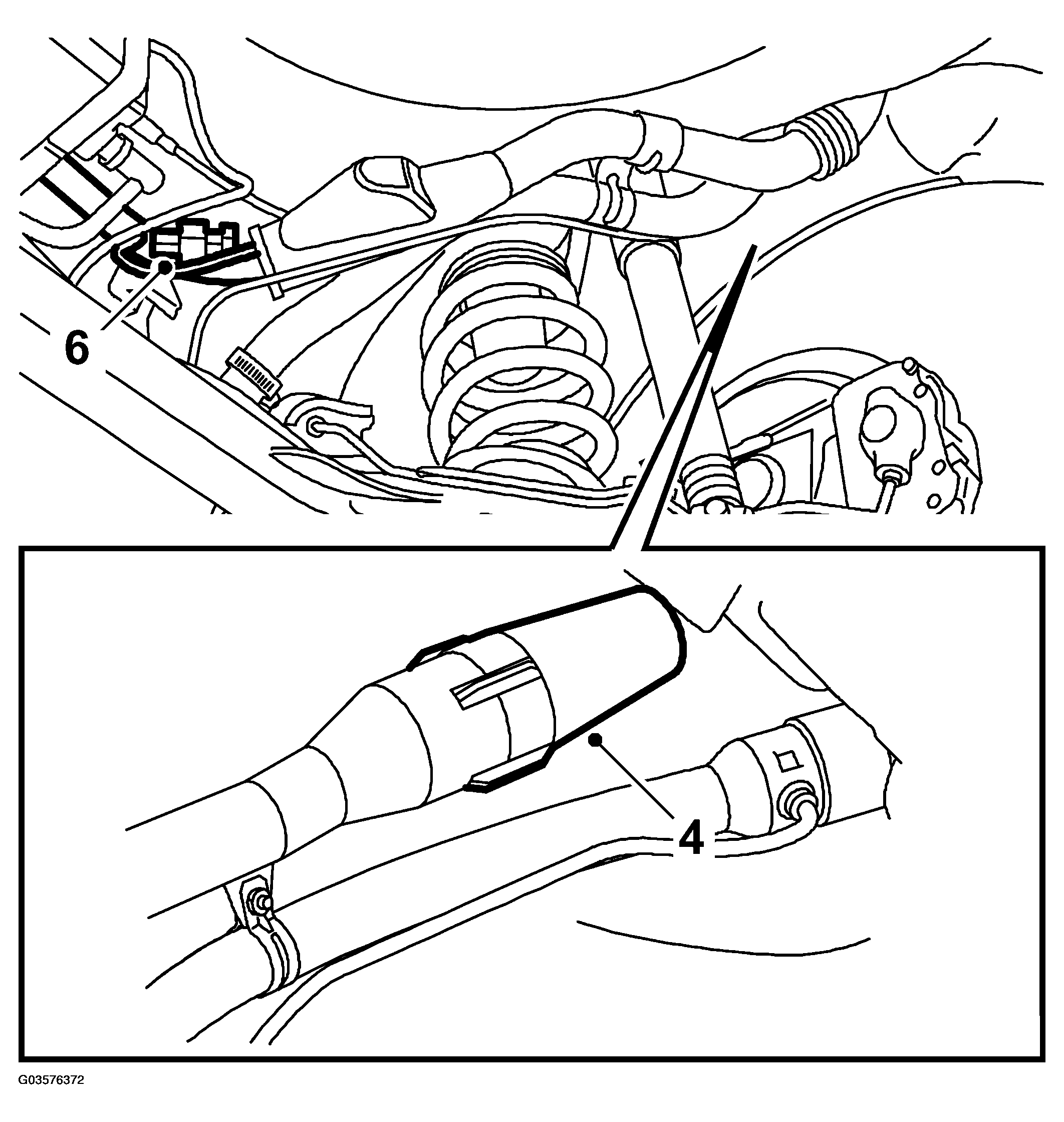

    Fig 1: Illustration For Steps 4 & 6
    G03576372Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Raise the car.
  6. Adjust and connect the shut-off valve hose to the EVAP canister.
  7. Lower the car to the floor.
