Solenoid Valve, EVAP Shut-Off: Dismantling

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the car.

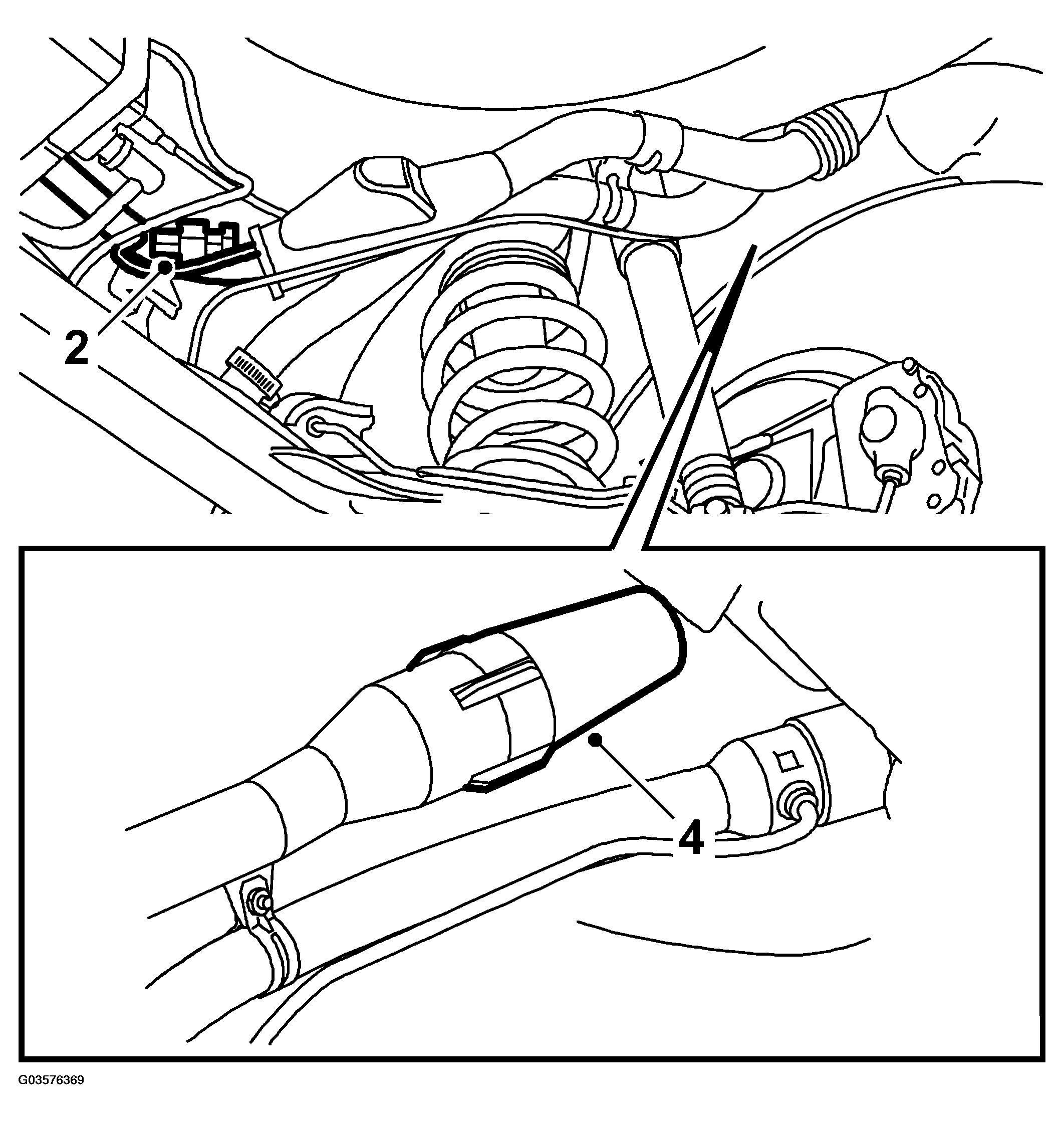

    Fig 1: Illustration For Steps 2 & 4
    G03576369Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the shut-off valve hose from the EVAP canister.
  3. Lower the car slightly.
  4. Clean (using compressed air is necessary) and remove the white cover over the shut-off valve.
  5. Unplug the connector and lift the valve upwards.

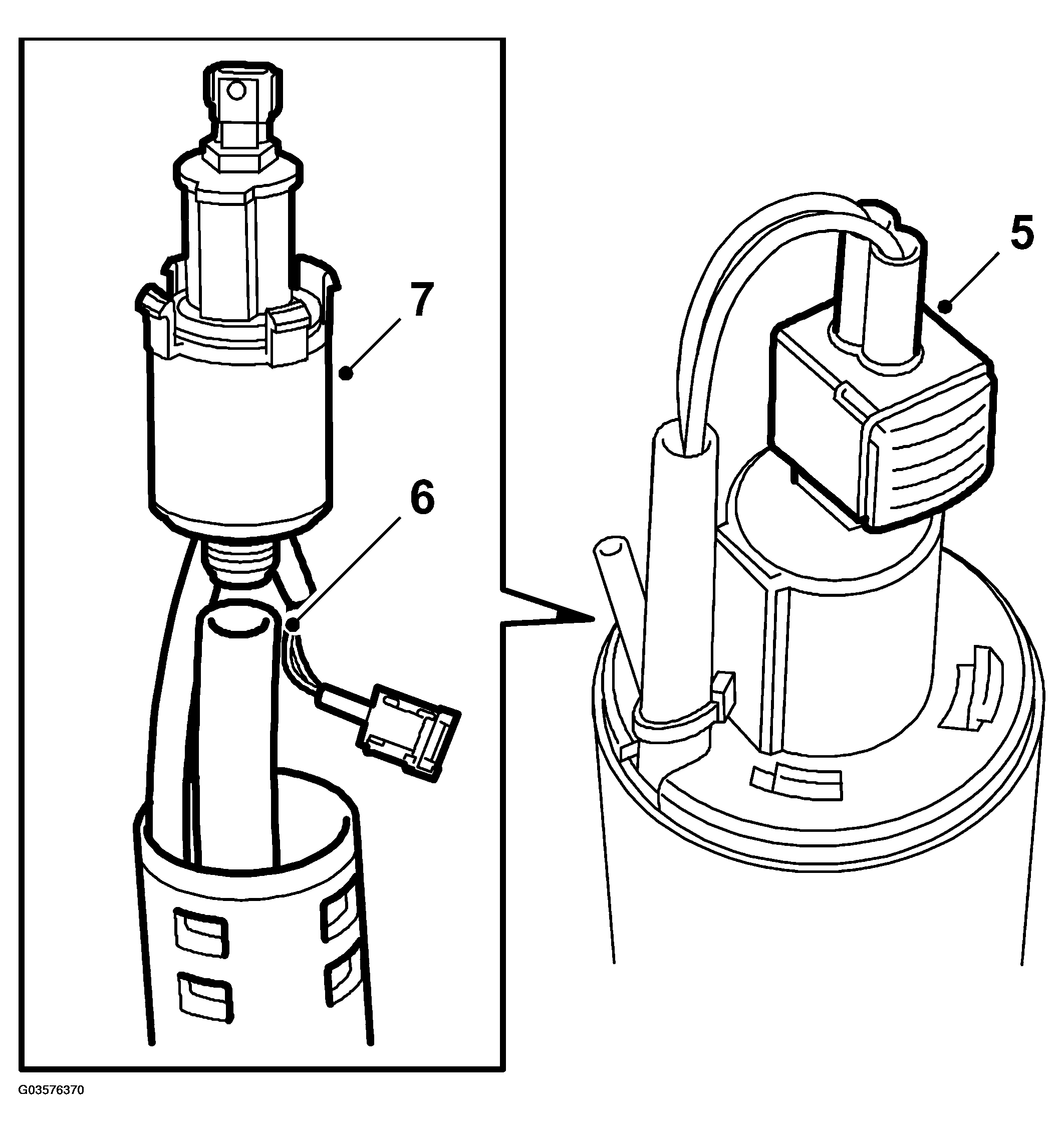

    Fig 2: Illustration For Steps 5-7
    G03576370Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the hose connection from the valve.
  7. Remove the valve.

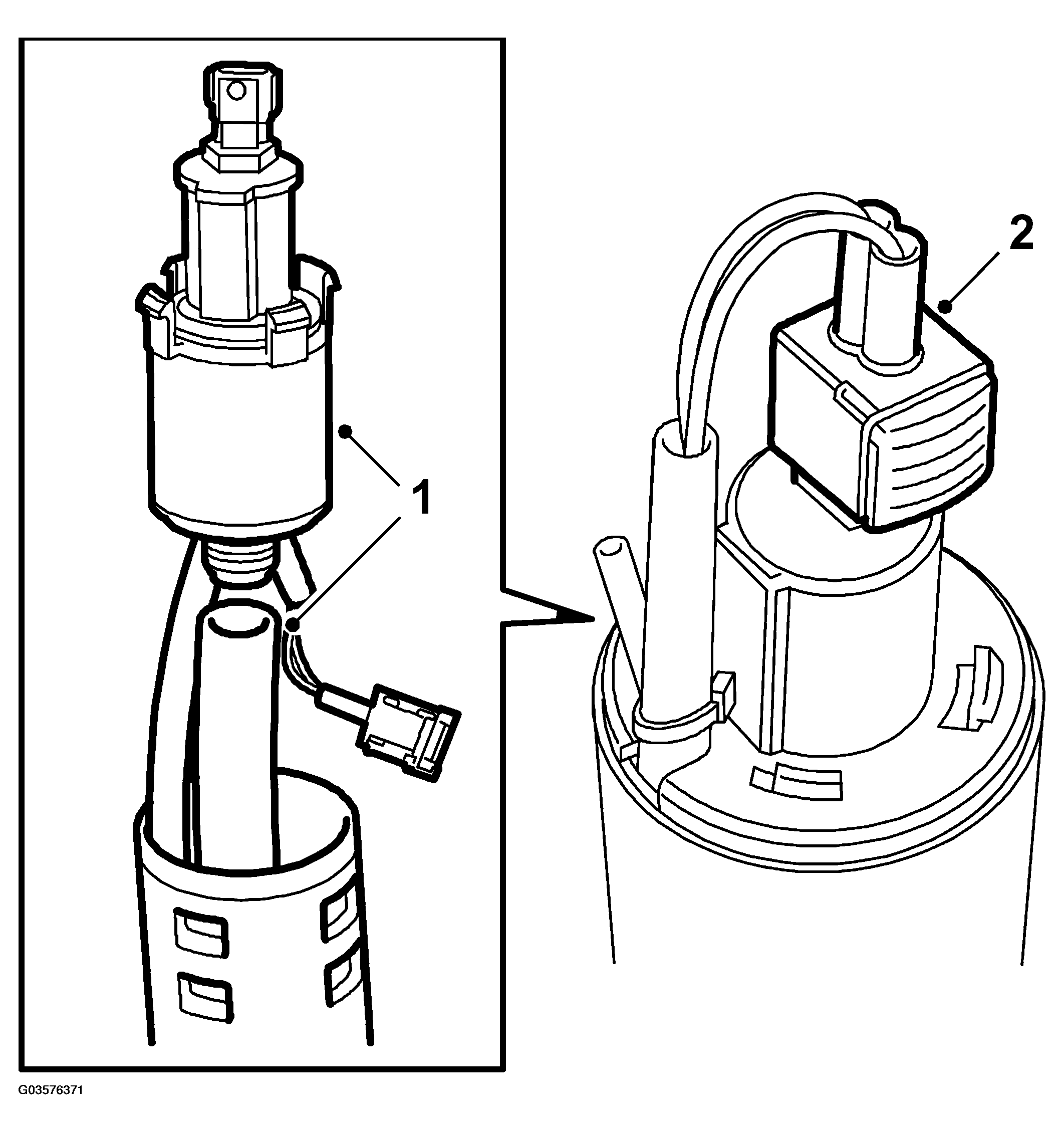

    Fig 3: Illustration For Steps 1-2
    G03576371Courtesy of SAAB-SCANIA OF AMERICA, INC.
