Hose, Fuel Filler Pipe: Dismantling

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the fuel level in the tank and, if necessary, drain to a lower level.

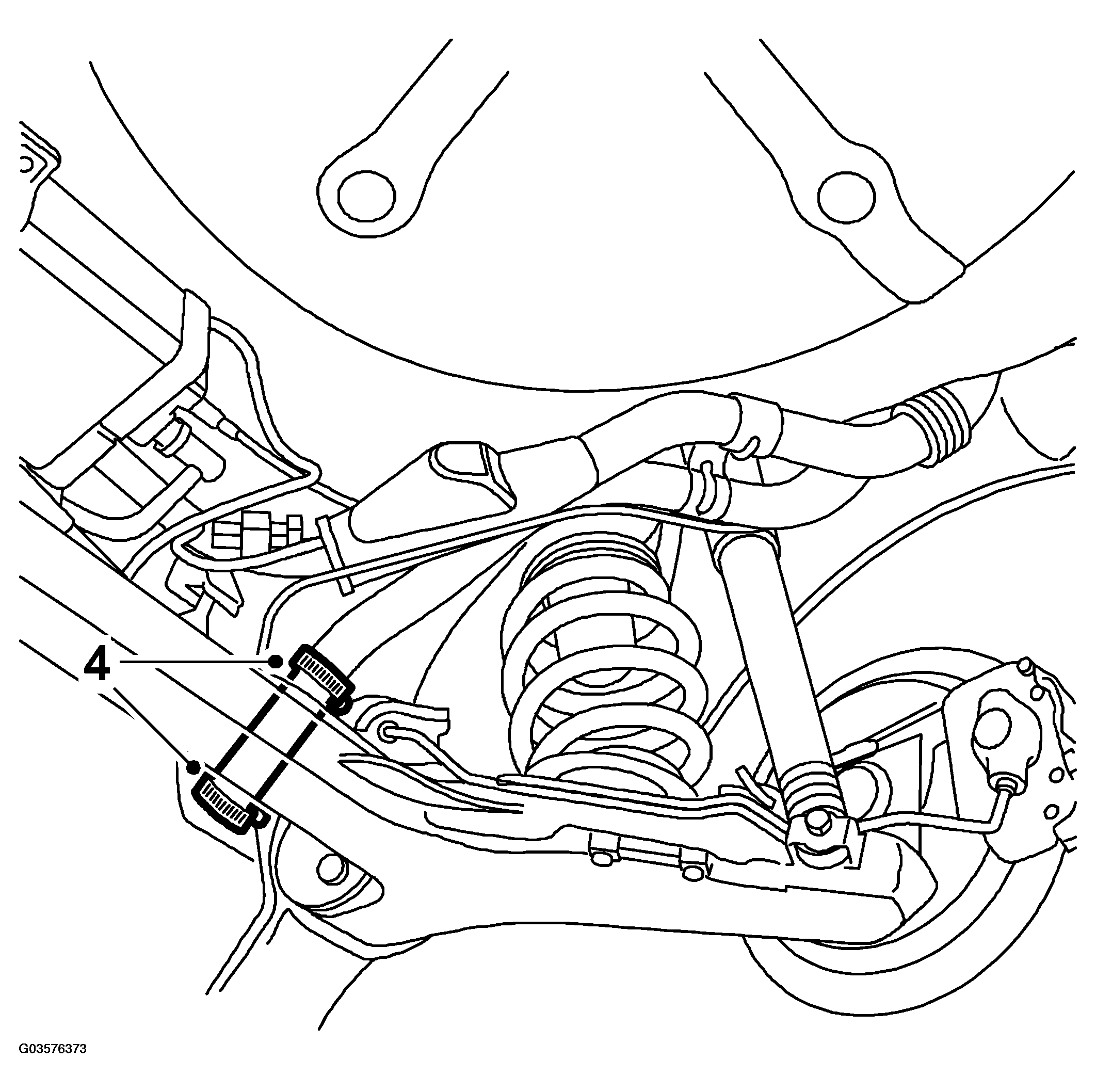

    Fig 1: Illustration For Step 4
    G03576373Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: The tank must never be drained by suction through the filler pipe as this will damage the non-return valve!
  2. Drive the car on to a lift and raise it.
  3. Raise the car.
  4. Undo the hose clamps and detach the hose from the tank and the filler pipe.
