To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

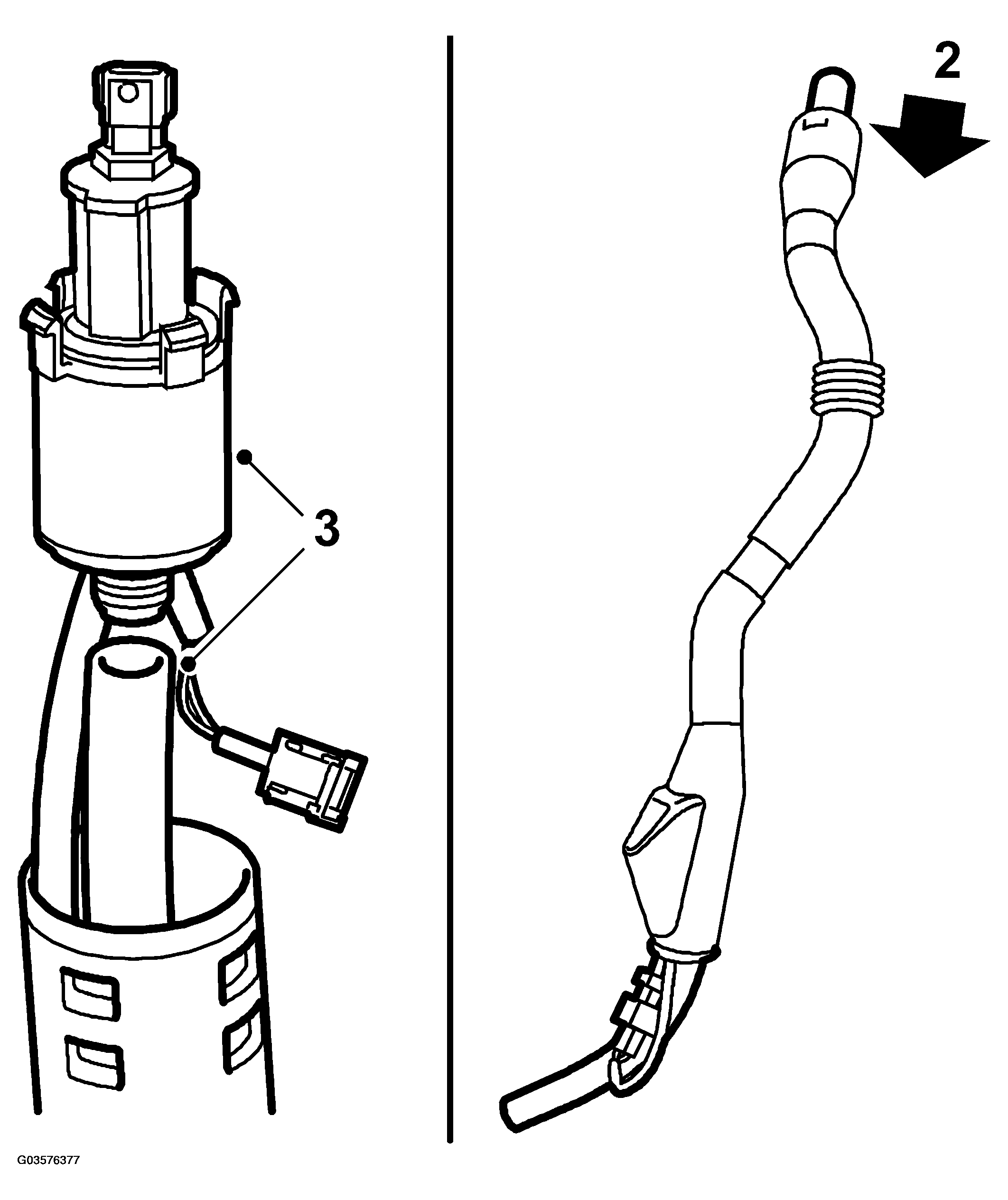

Fig 1: Illustration For Steps 2-3
G03576377Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Apply a thin coat of petroleum jelly (vaseline) to the end of the hose.
  2. Insert the hose into the vent pipe until approx. 10 cm is remaining, making sure the cable does not follow.
  3. Fit the shut-off valve with cable and insert the valve and hose the remaining distance.
  4. Fit the white cover.

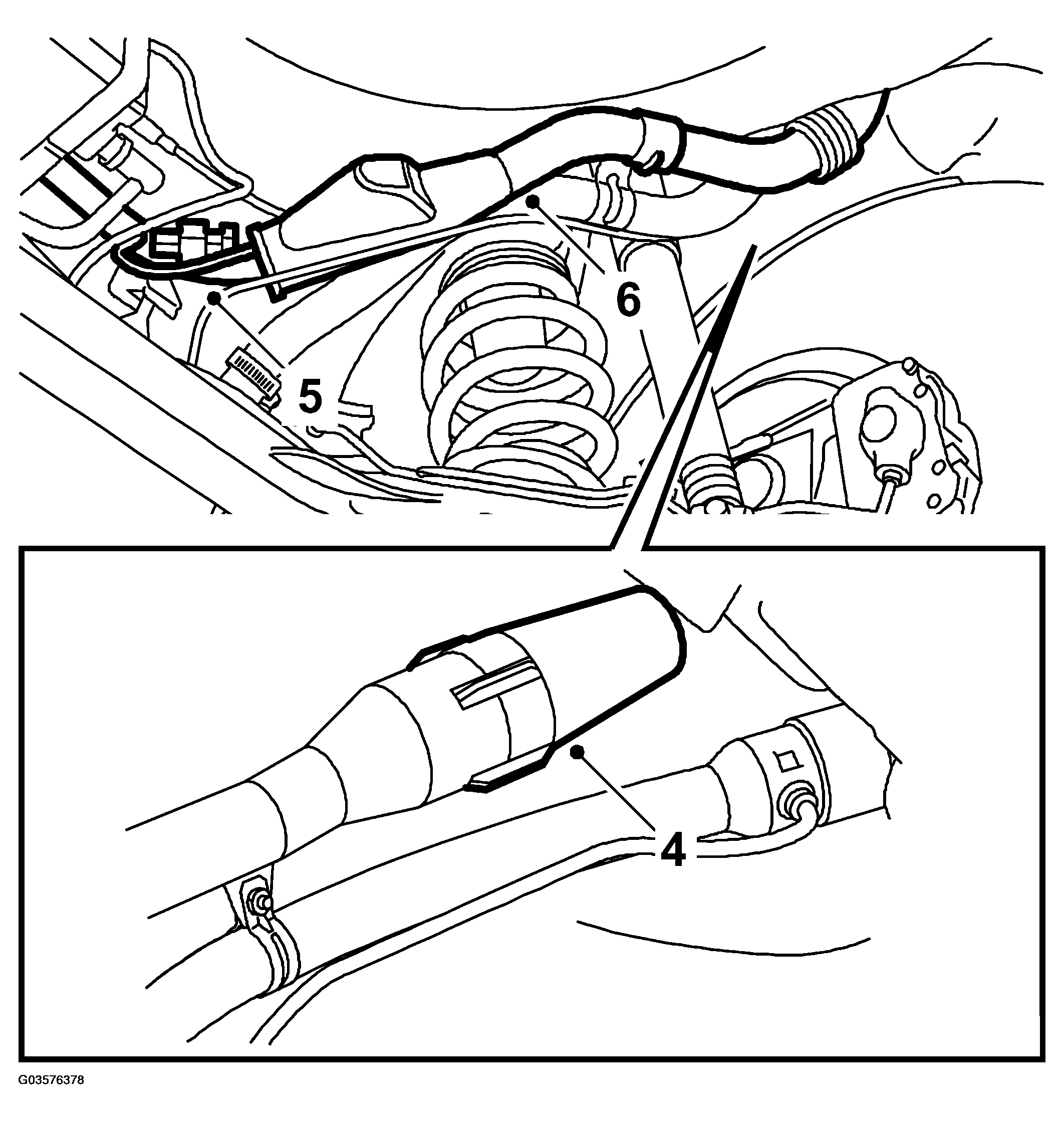

    Fig 2: Illustration For Steps 4-6
    G03576378Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Adjust the cables and fit the vent pipe's bottom seal.
  6. Fit the vent pipe on the car.
