Hose, EVAP Shut-Off Valve: Dismantling

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air vent pipe from the car.

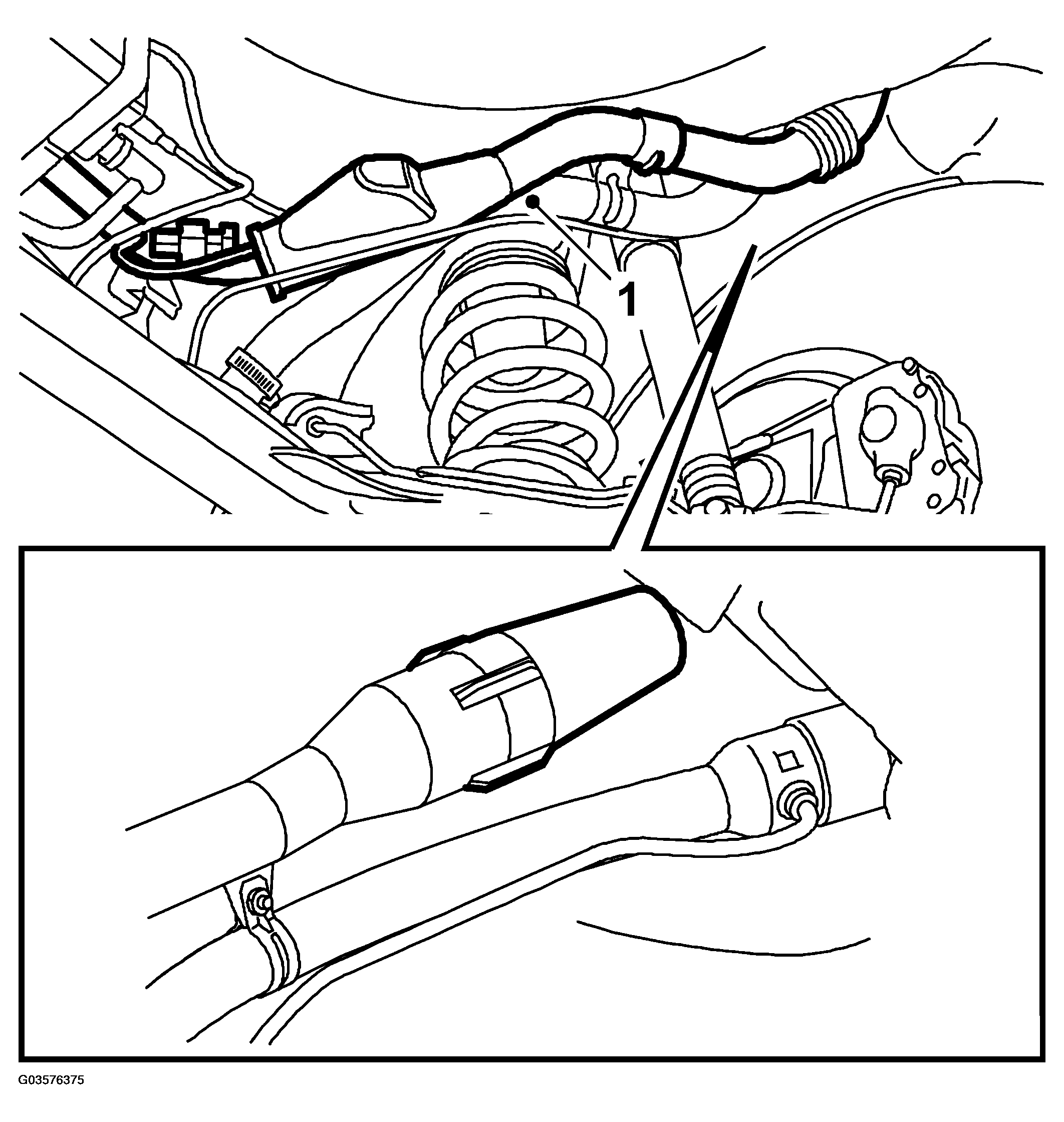

    Fig 1: Illustration For Step 1
    G03576375Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the shut-off valve and hose clamp from the hose.

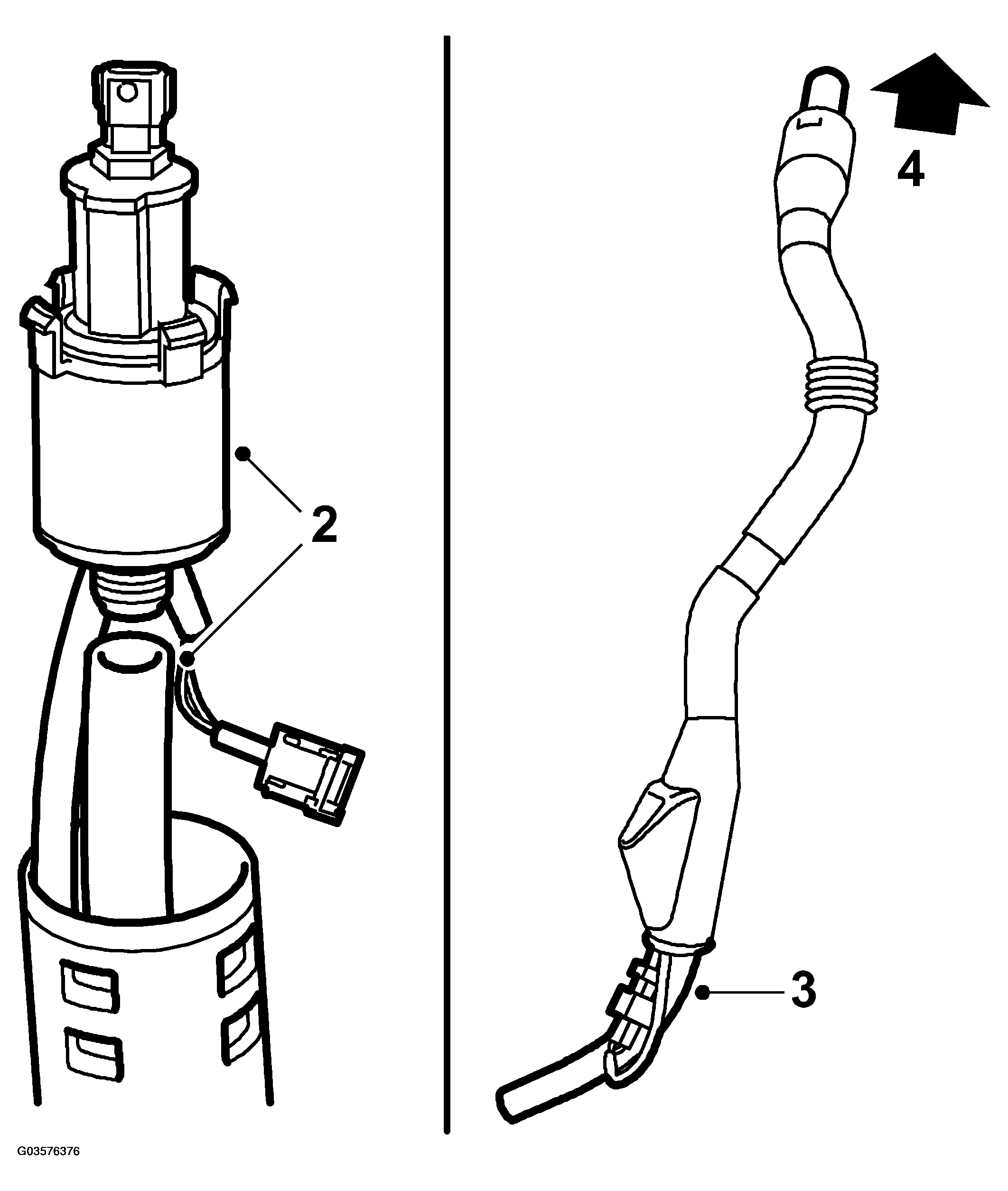

    Fig 2: Illustration For Steps 2-4
    G03576376Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the seal from the bottom end of the vent pipe.
  4. Hold on to the cable while pulling out the hose from the end of the shut-off valve.
