Fuel Filler Pipe: Dismantling

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the filler hatch and remove the fuel cap.

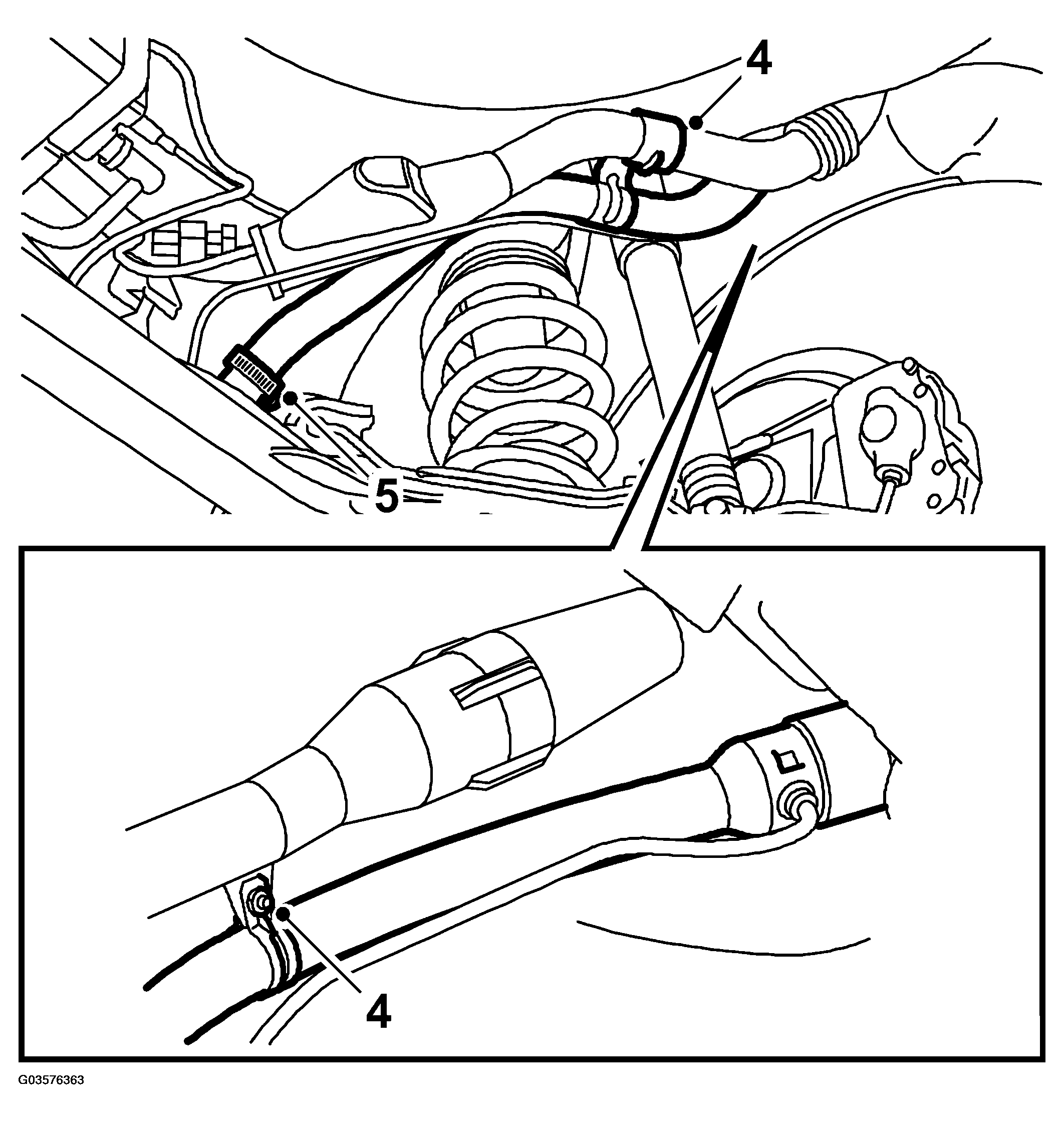

    Fig 1: Illustration For Steps 4-5
    G03576363Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Raise the car.
  3. Detach the quick-release coupling on the purge line to the filler pipe using tool 83 95 261.
  4. Undo the clamps securing the filler pipe and vent pipe. Remove the clamp on the filler pipe.
    IMPORTANT: Be careful with the retaining screw on the bottom clamp, as this is a plastic safety screw that must be replaced every time it is removed/fitted.
  5. Detach the filler pipe from the tank.
    NOTE: Clean the pipe connections etc. before removing.
  6. Lower the filler pipe.
