To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

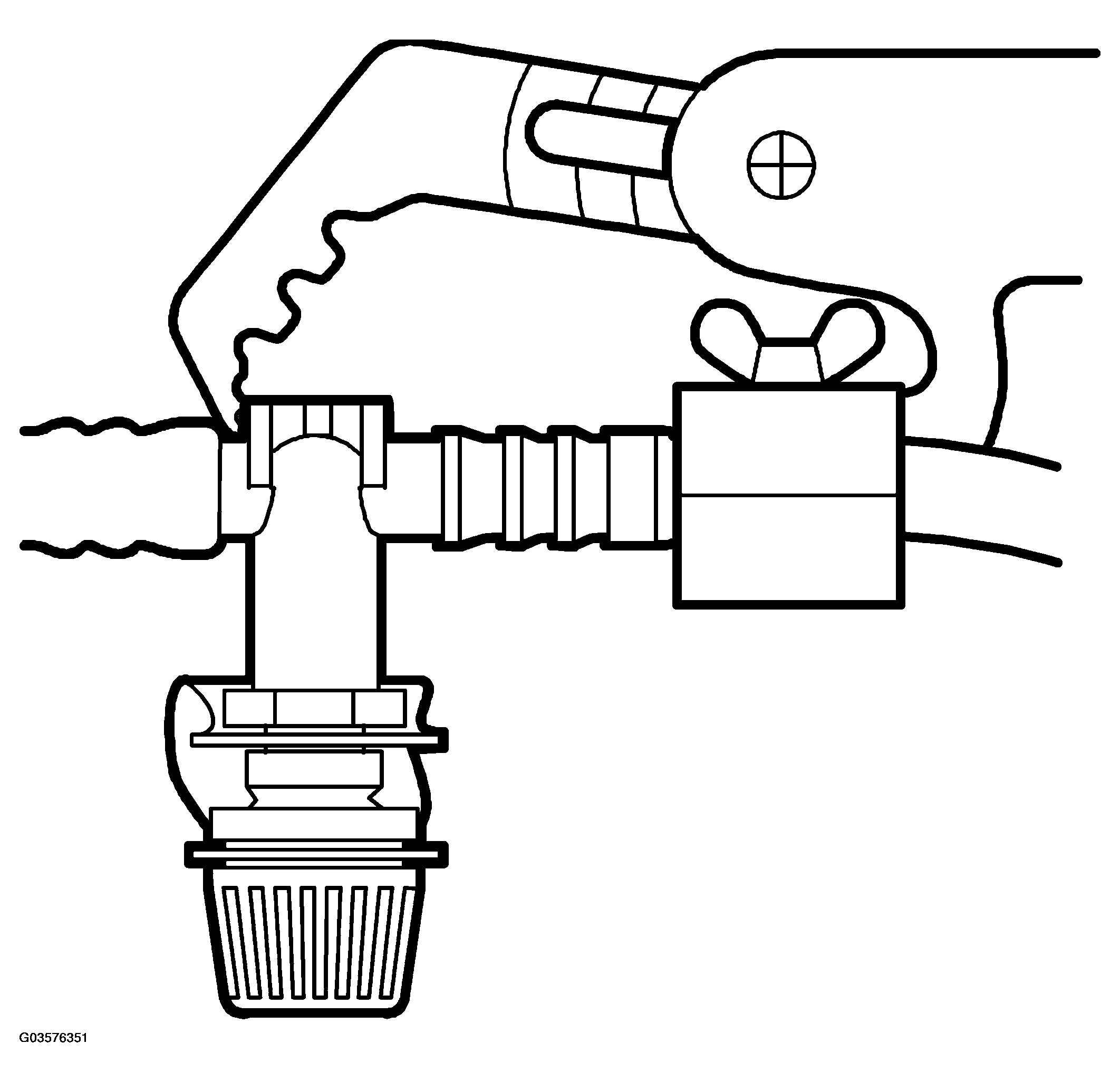

Fig 1: Detaching The Purge Line From The Securing Clip
G03576351Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Press the purge line on to the service port using tool 83 94 546 FITTING TOOL, FUEL LINE .
  2. Connect the service port to the rubber hose on the EVAP purge valve.

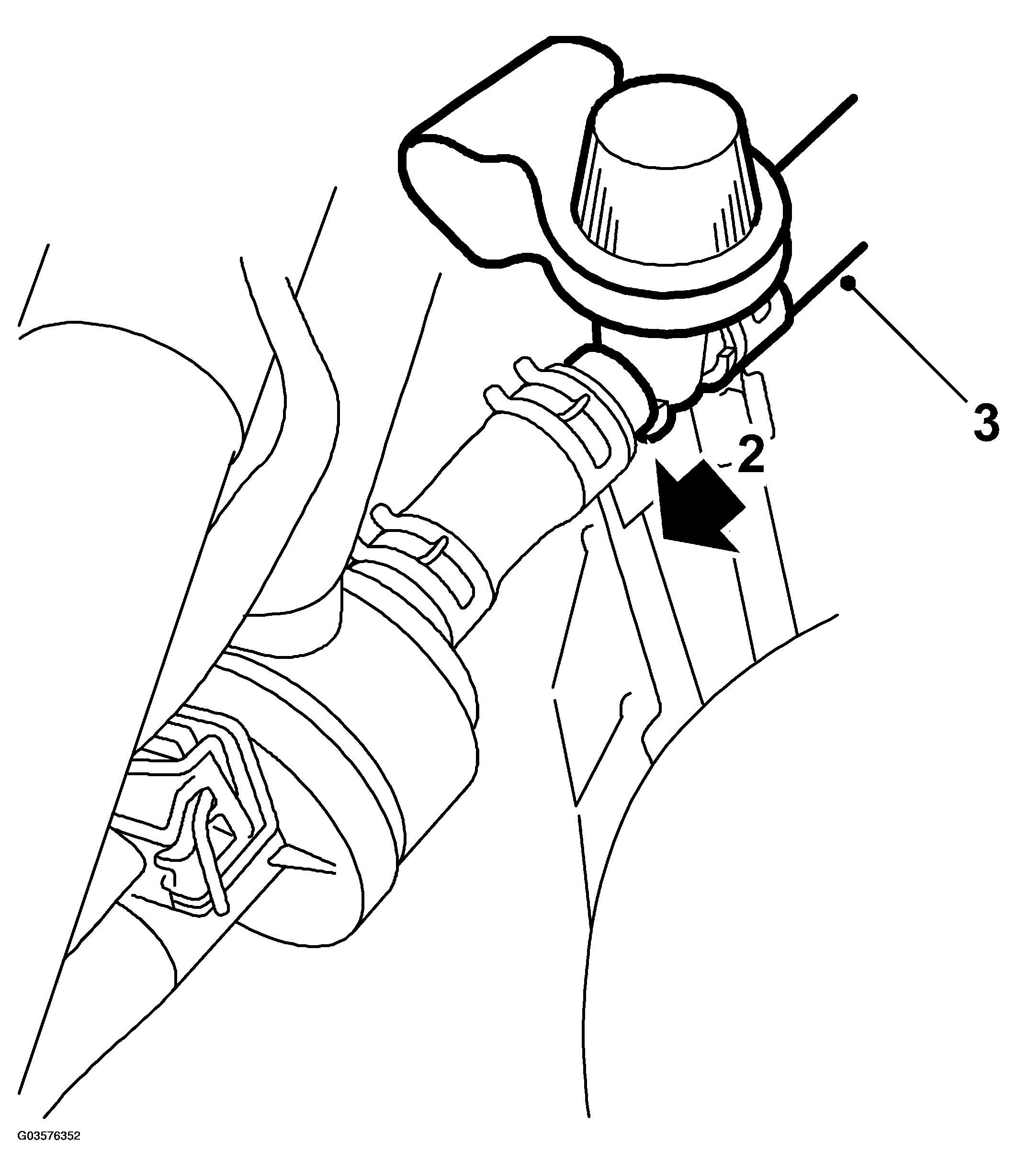

    Fig 2: Illustration For Steps 2-3
    G03576352Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Secure the purge line with the clip.
  4. Pressurize the system and check for any leaks in the service port installation.
