Changing The Service Port: Dismantling

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drive the car on to a lift and raise it.

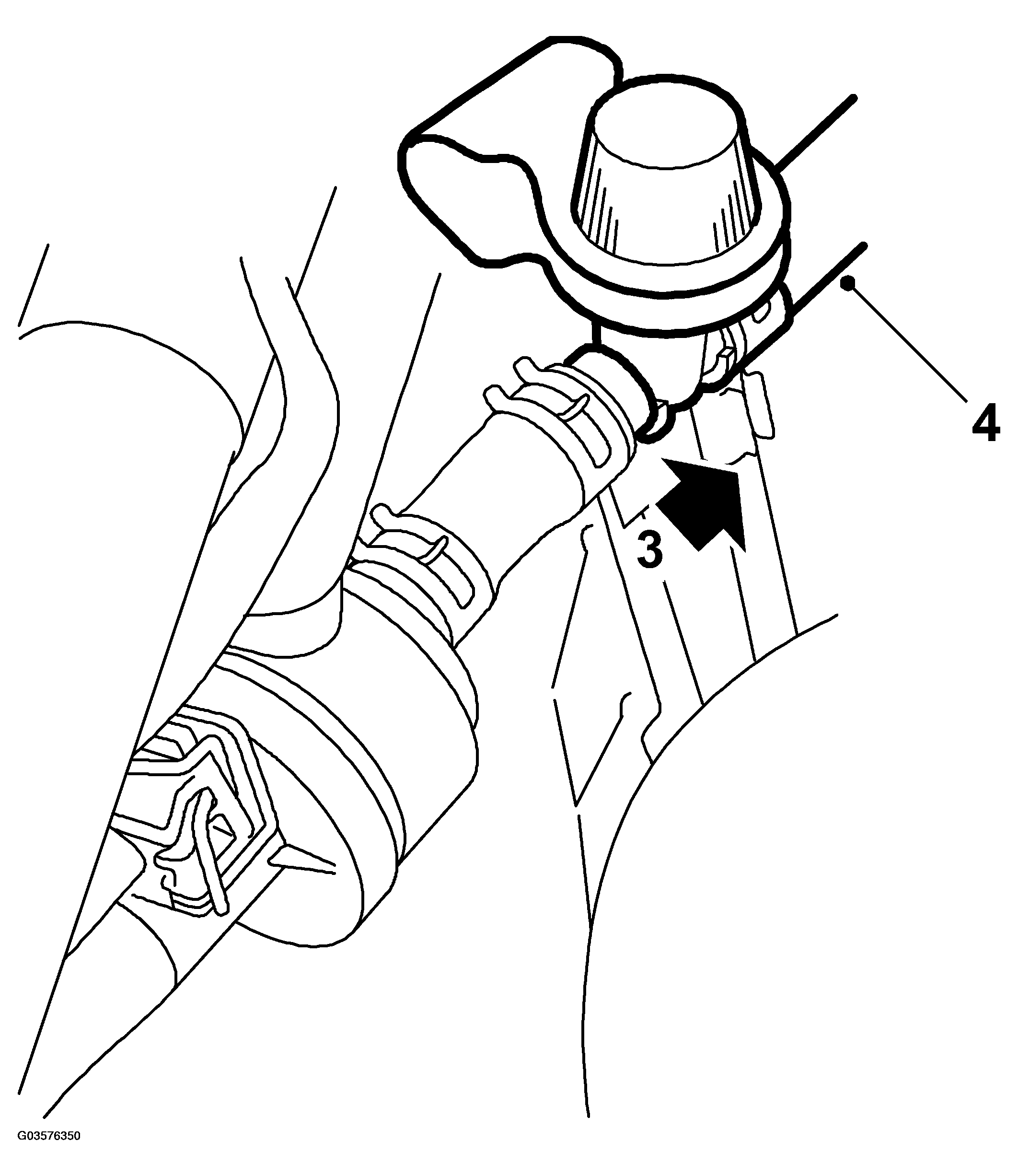

    Fig 1: Illustration For Steps 3-4
    G03576350Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Open the bonnet.
  3. Detach the purge hose with the service port from the rubber hose on the EVAP purge valve.
  4. Detach the purge line from the securing clip.
  5. Separate the service port from the line by carefully cutting off the purge hose with a sharp knife, scalpel, or similar tool.
    NOTE: Cut the line so that the piece cut off is as short as possible.
