System overview: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

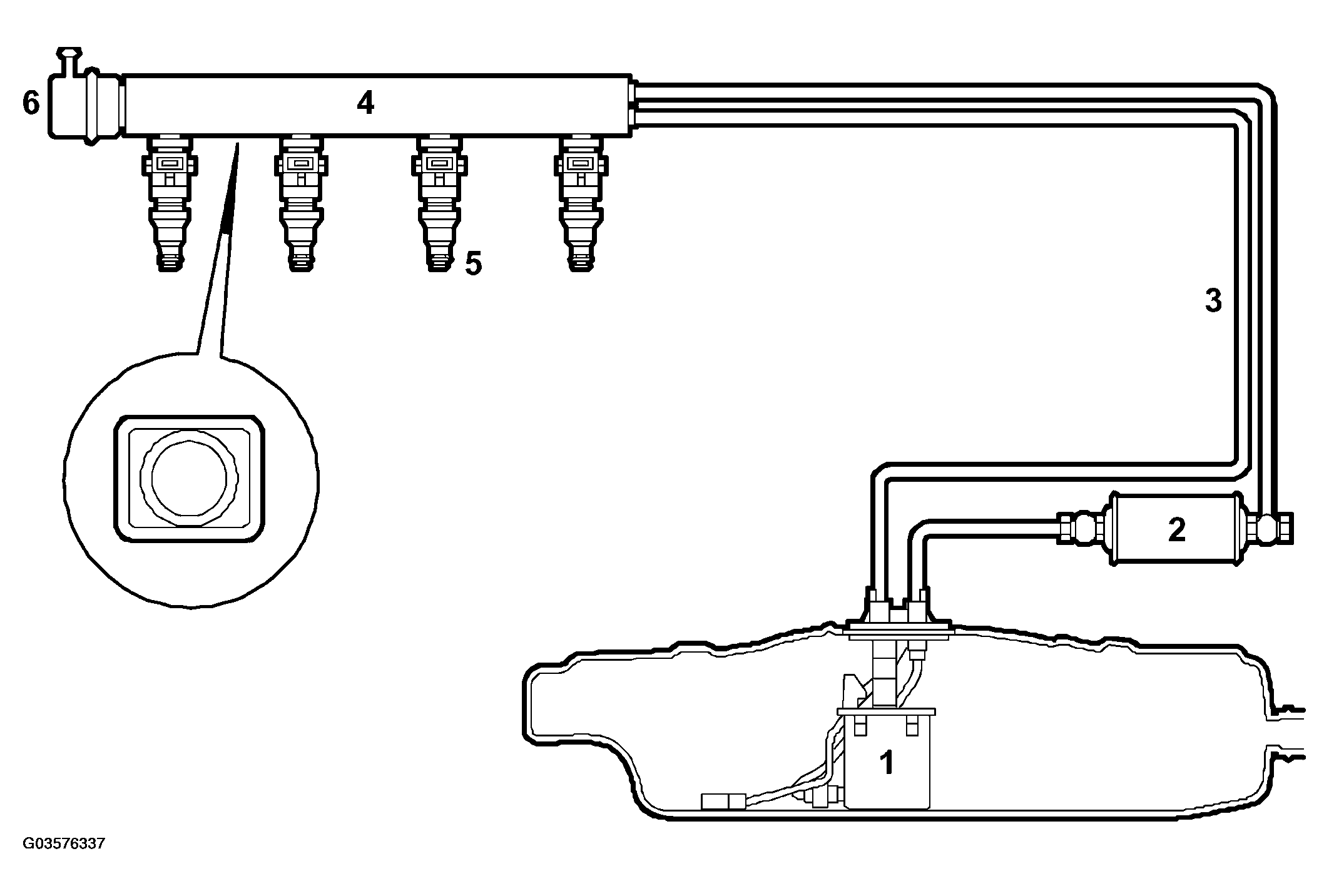

Fig 1: Illustration For Steps 1-5
G03576337Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel pump
  2. Fuel filter
  3. Fuel line
  4. Fuel rail
  5. Injector
  6. Pressure regulator
