Injectors (206)
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

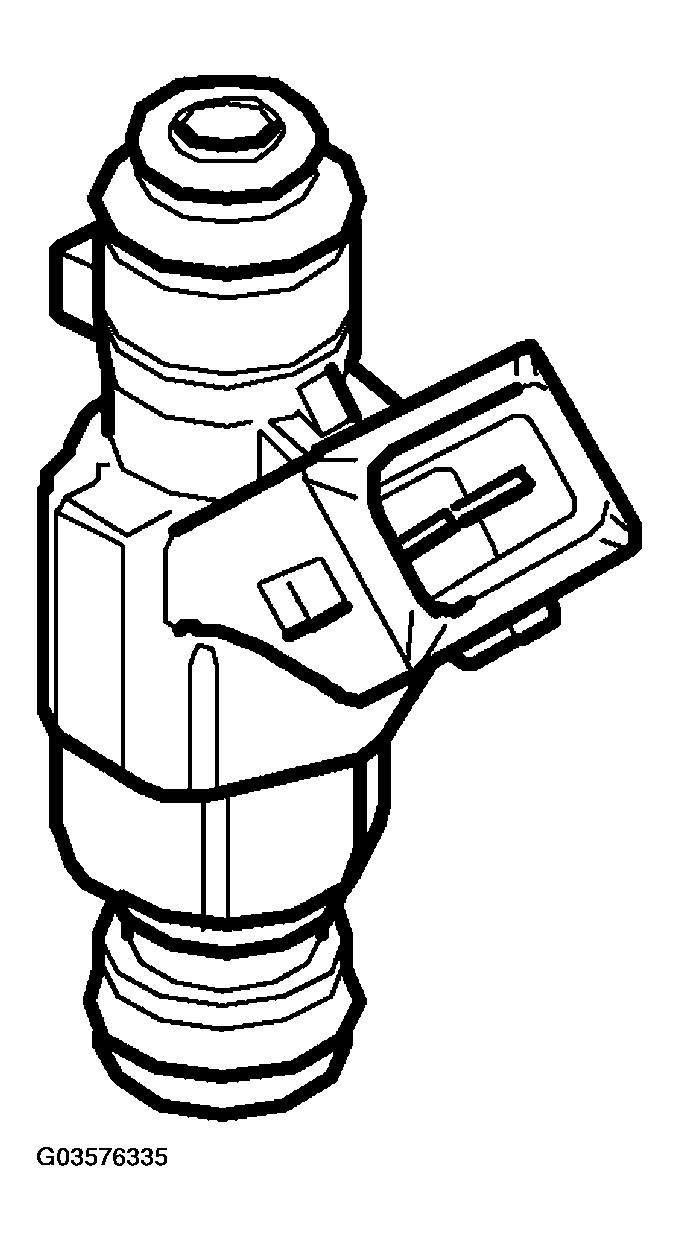

Courtesy of SAAB-SCANIA OF AMERICA, INC. INJECTORS SPECIFICATIONS
| Location |
On top of intake manifold |
| Engine type |
B205E/L/R, B235R |
| Type |
Bosch EV6E, brown |
| Version |
4-hole |
| Flow capacity |
176 +/- 10 ml/ 30 s |
| Maximum permissible difference between injectors |
20 ml |
