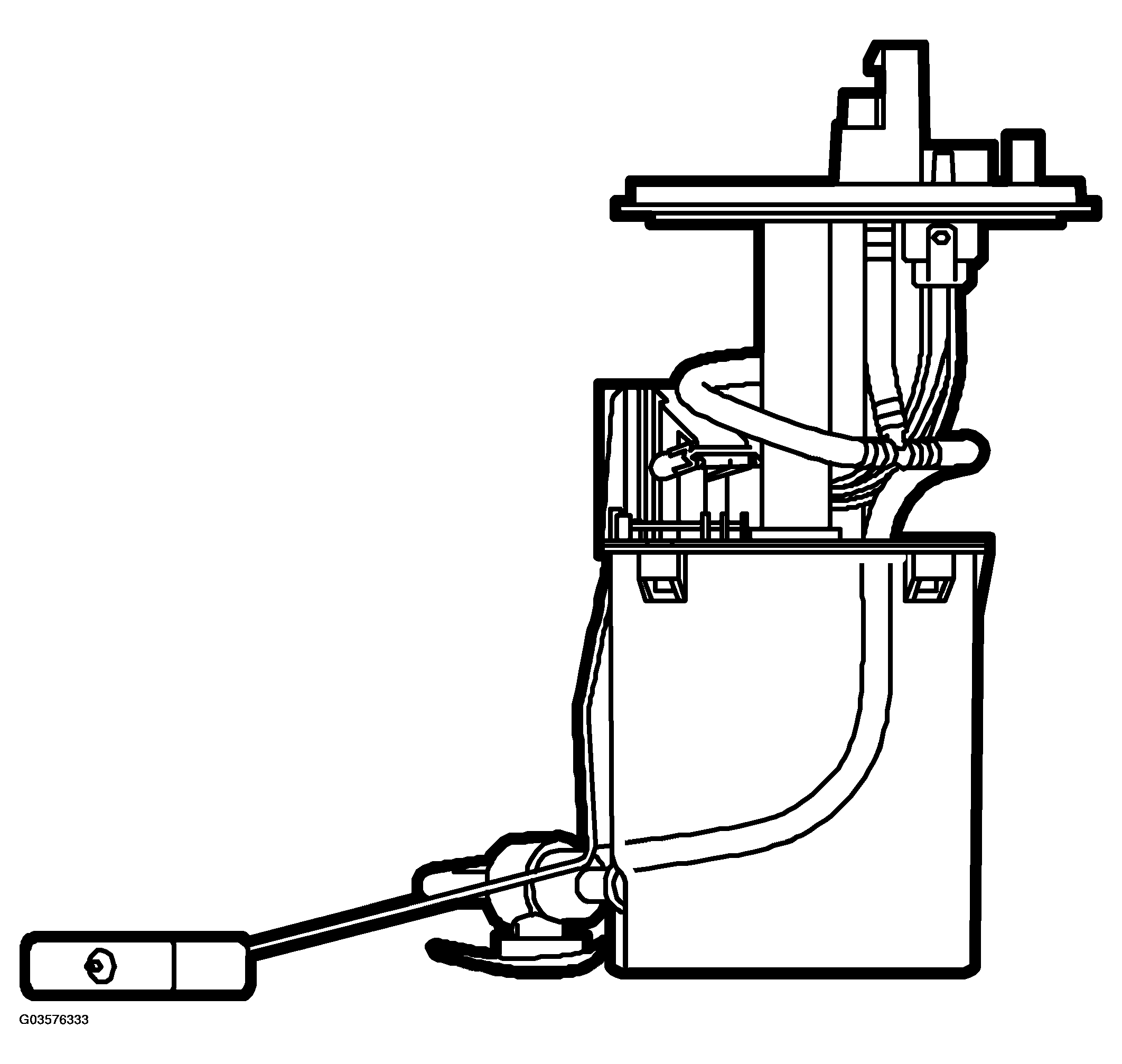

Fuel pump
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. FUEL PUMP SPECIFICATIONS
| Capacity at 3.0 bar (43 psi) back pressure |
l/30 s |
min. 0.7 |
| Fuel level sensor resistance with full tank |
Ohms |
390 +/- 6 |
| Fuel level sensor resistance with empty tank |
Ohms |
60 +/- 2.6 |
