To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

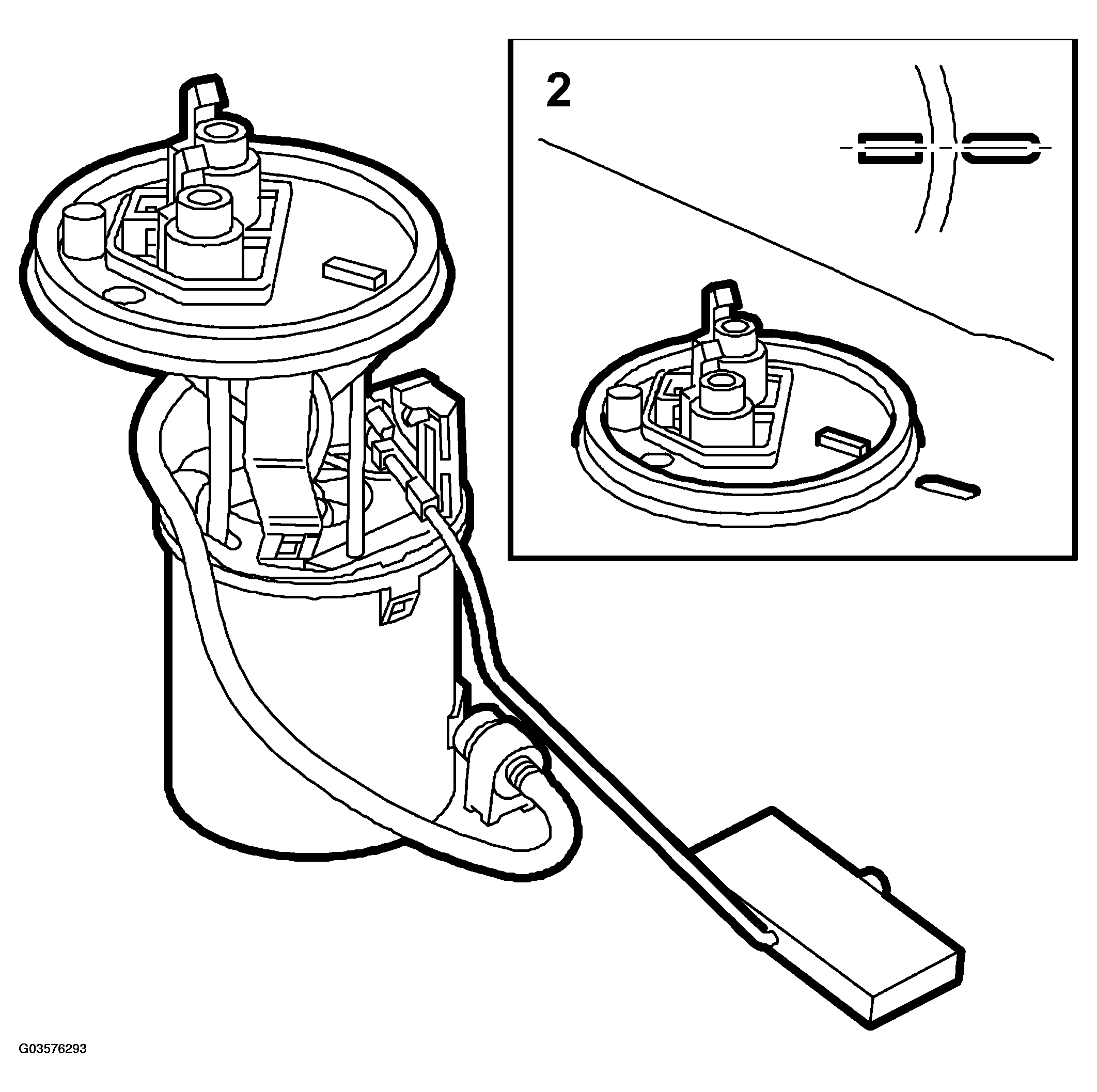

Fig 1: Illustration For Step 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit a new O-ring in the groove in the tank. Apply a thin layer of vaseline, part no. 30 06 665, or equivalent.
Carefully insert the pump in its correct position. Make sure the index marks on the tank and the fuel pump are aligned correctly.
Fit the screw ring.

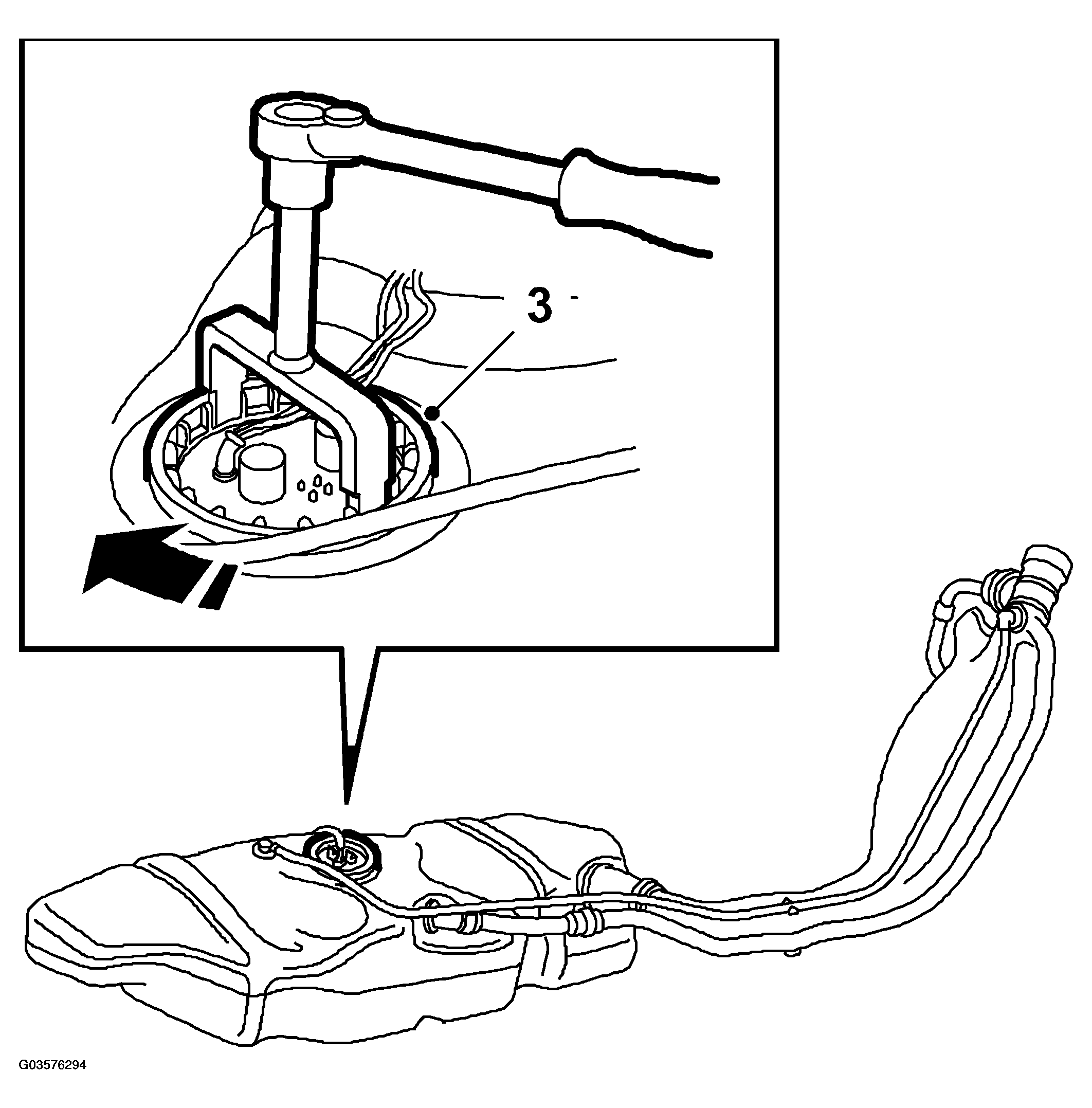

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Tightening torque 75 N.m (55 lbf ft)

IMPORTANT: Inspect the fuel line O-rings and replace as necessary.
Fit the tank. See FUEL TANK .
