Fuel pump: Dismantling

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

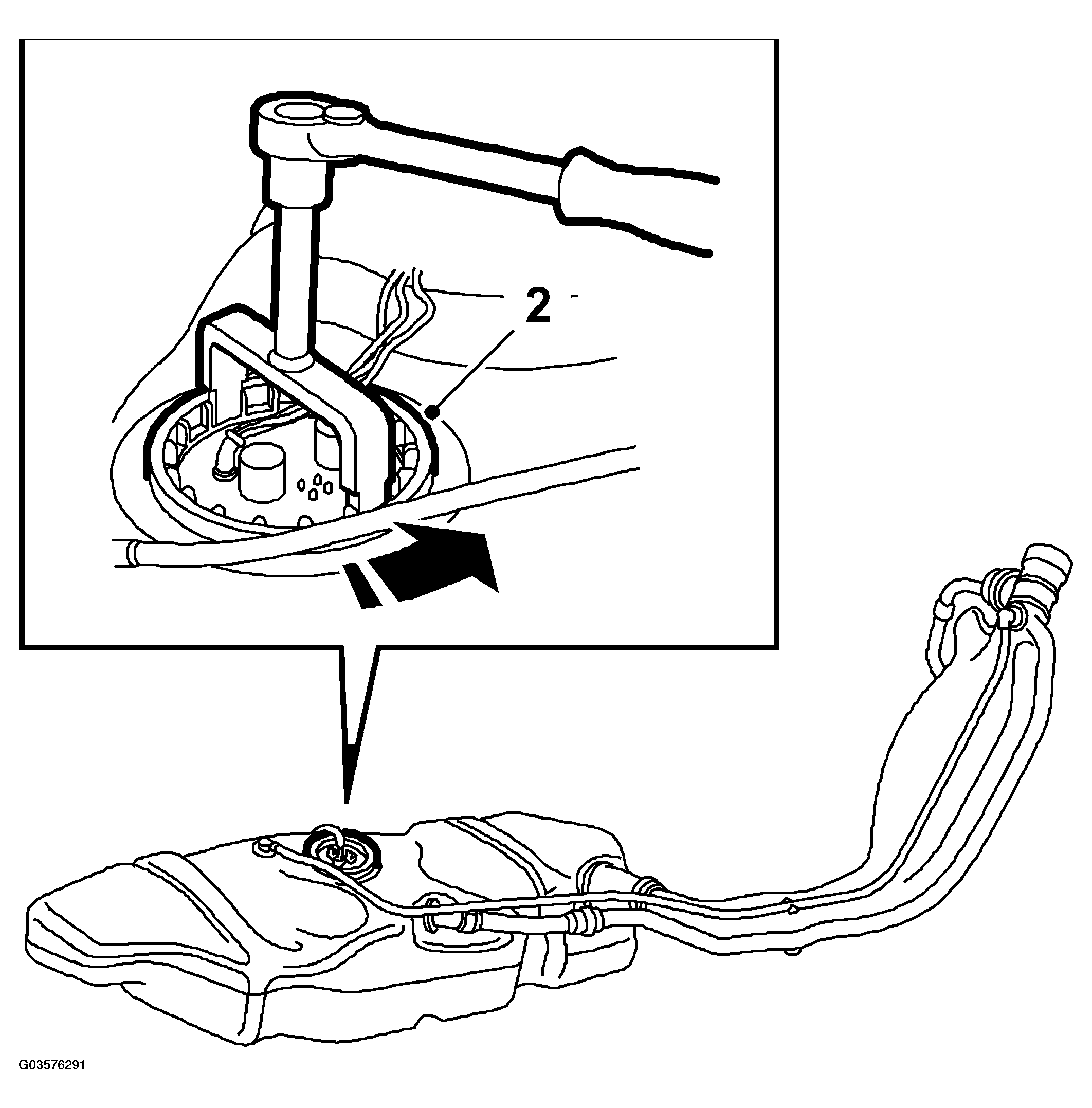

Fig 1: Illustration For Step 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the fuel tank. See FUEL TANK .
Remove the screw ring on top of the fuel pump. Use special tool no. 83 94 462.
Lift the pump until the top of it is about 50 mm above the fuel tank. Then, turn it about 80 degrees and carefully remove the pump.

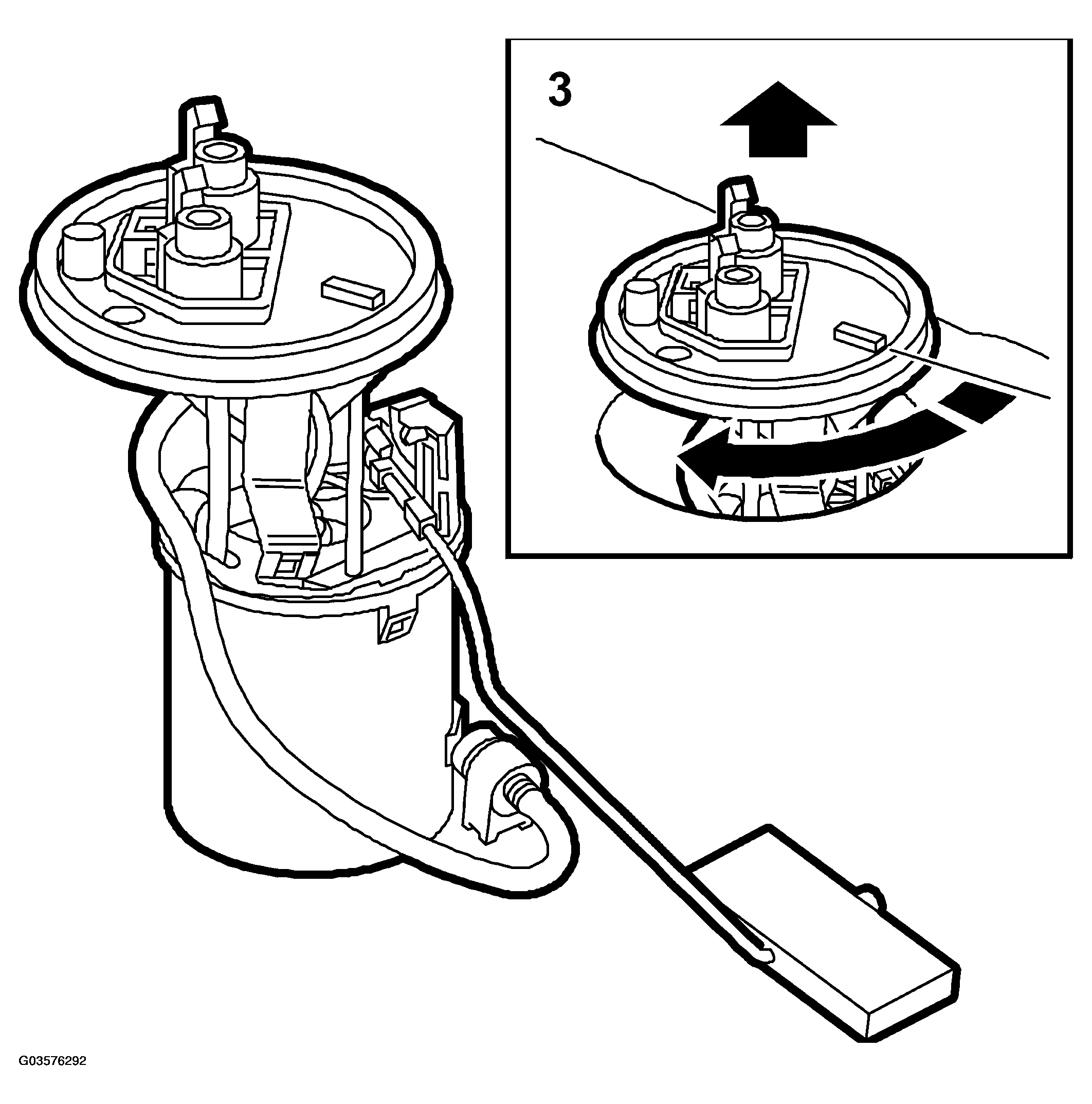

Fig 2: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
