To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the fuel pressure regulator O-ring with acid-free vaseline, part no. 30 06 665.
  2. Fit the regulator to the fuel rail and tighten the clamp.

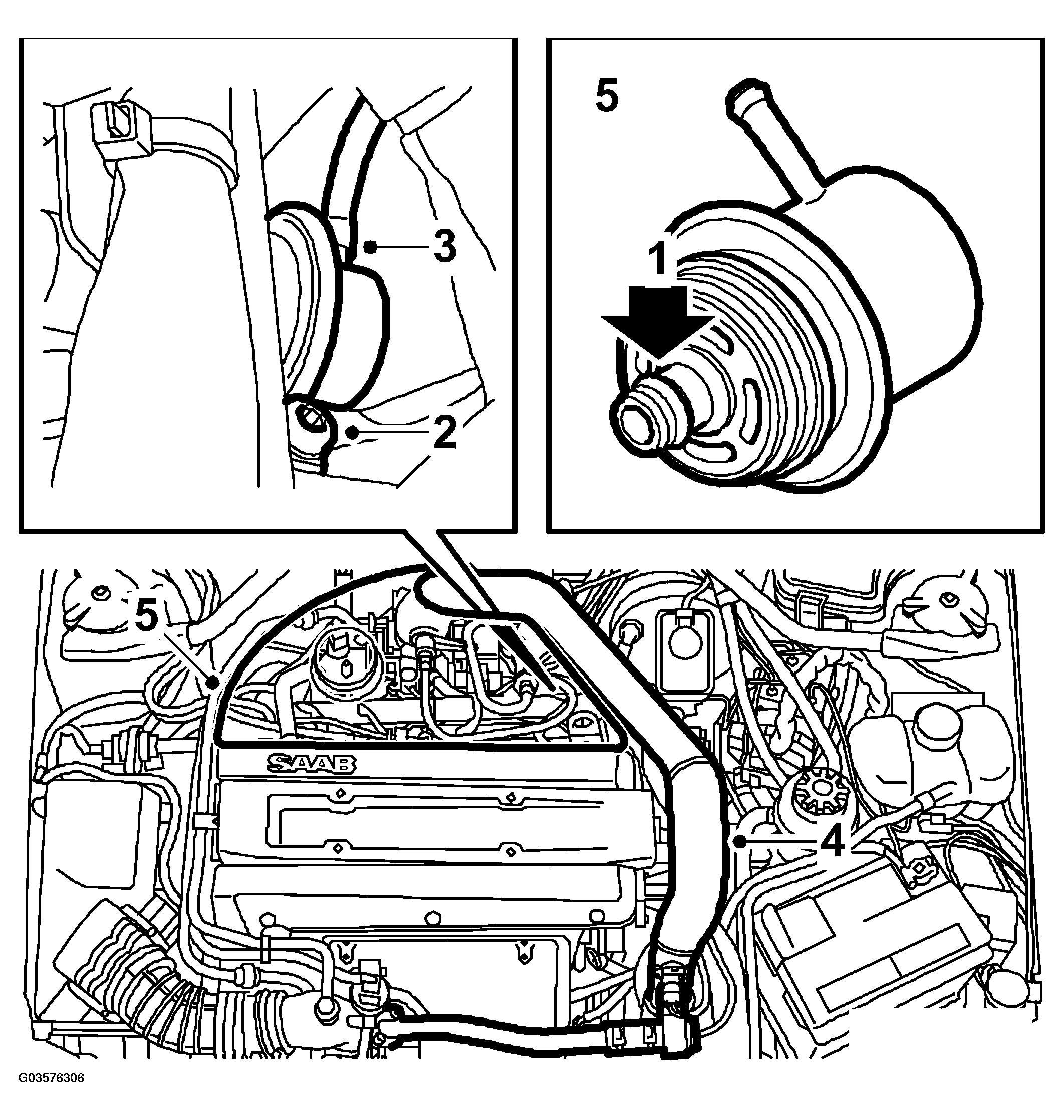

    Fig 1: Illustration For Steps 2, 3 & 5
    G03576306Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the regulator vacuum hose.
  4. Fit the charge air pipe with connector and hose.

    Man:  Connect the venturi hose to the charge air pipe.

  5. Start the engine and check for leaks.
  6. Fit the top engine cover.
