Pressure sensor, EVAP (585): Connection

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

CONNECTION

Pin No.	Signal type	Description
C	Power supply, 5 V	Connected to ECM pin 43(A).
A	Ground	Connected to ECM pin 32(A).
C	Signal	Connected to ECM pin 11(A).

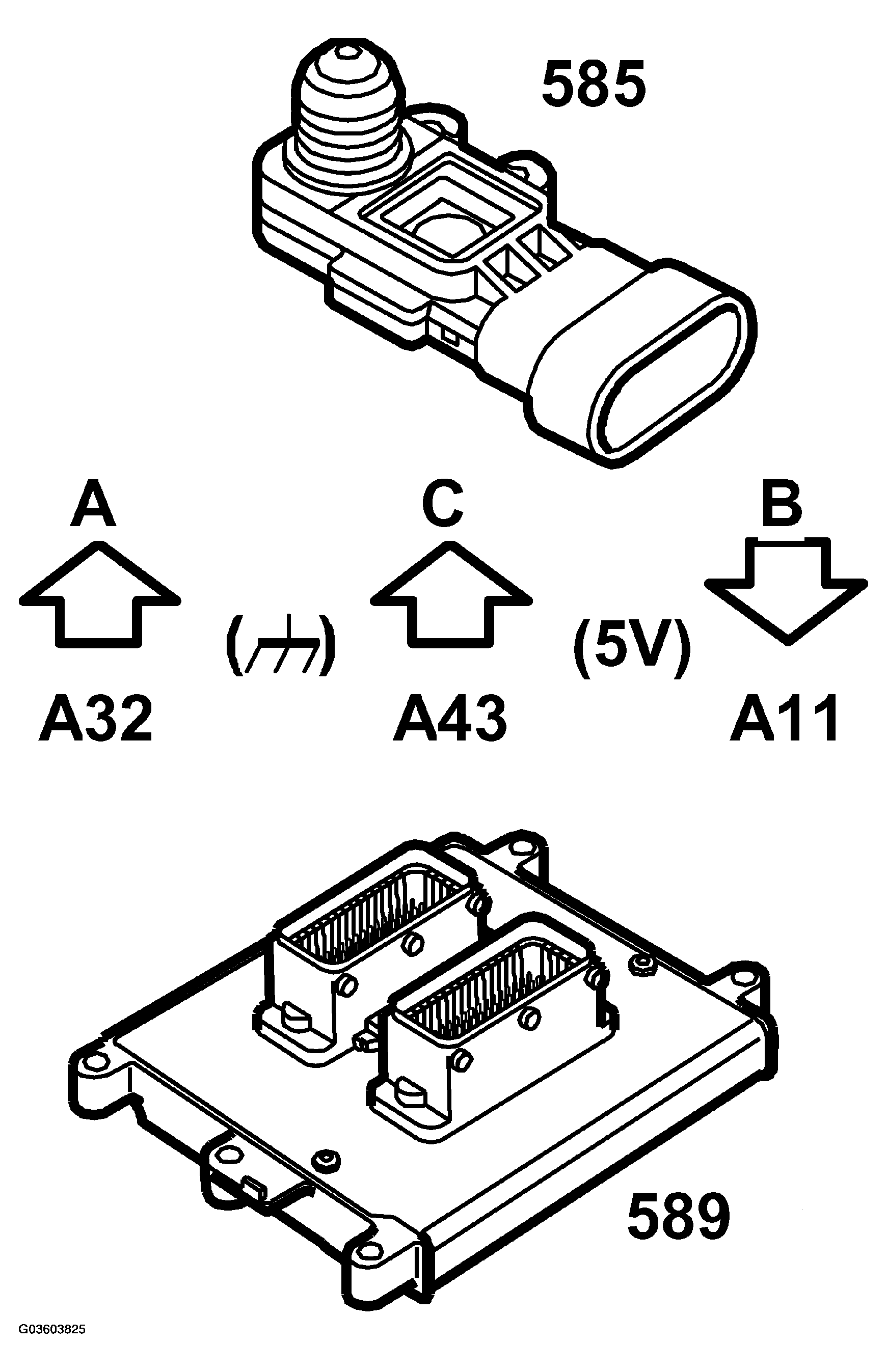

Fig 1: Identifying Pressure Sensor, EVAP Connection

Courtesy of SAAB-SCANIA OF AMERICA, INC.

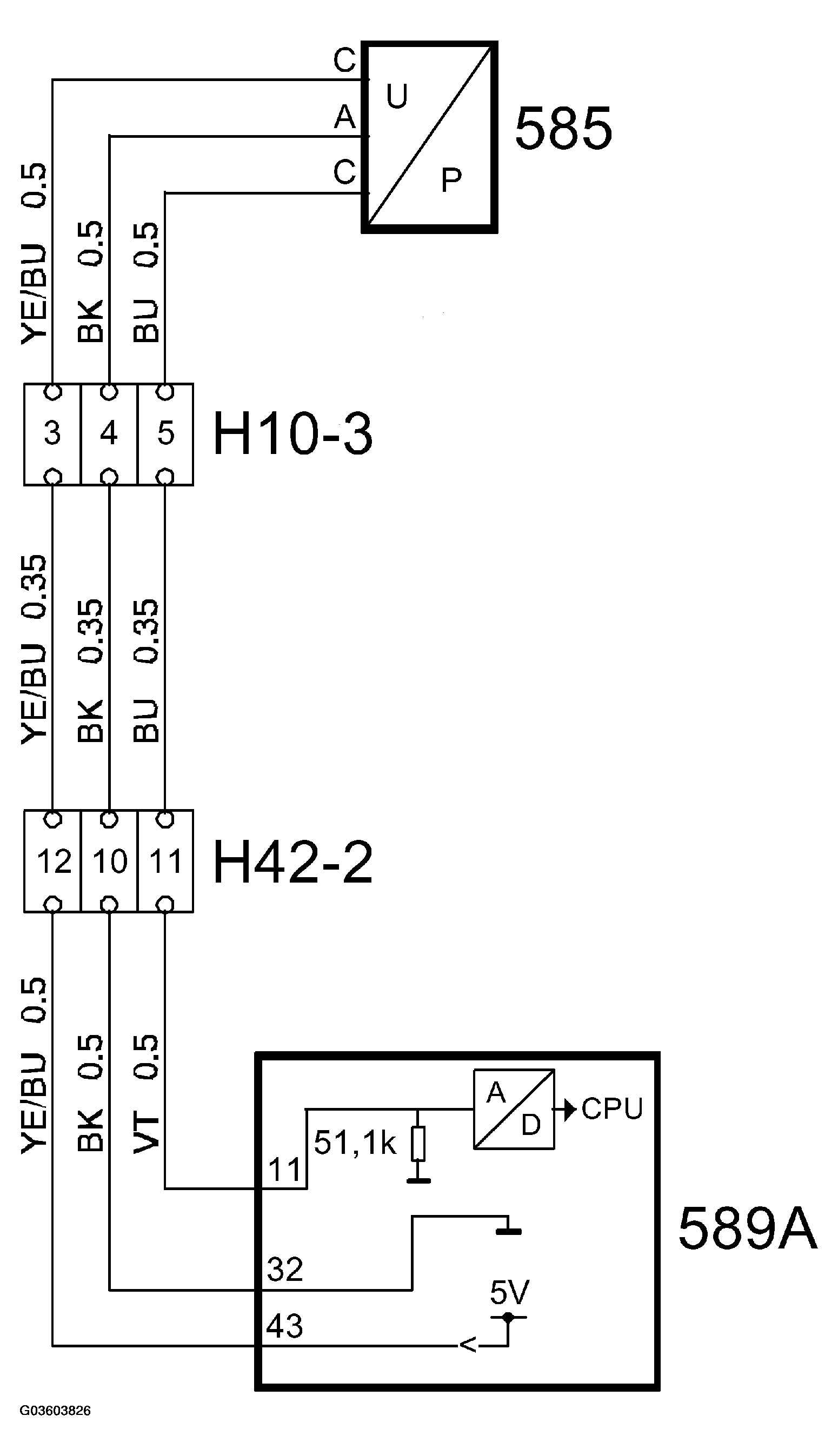

Fig 2: Pressure Sensor, EVAP Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Based on the pressure difference between the tank and atmosphere, the pressure sensor yields a proportional voltage to control module pin 11(A). The pressure sensor value is adapted to 0 kPa when the ignition is switched on provided coolant temperature is less than 40°C and fuel level is less than 50 liters.
