EVAP shut-off solenoid valve (588): Connection
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

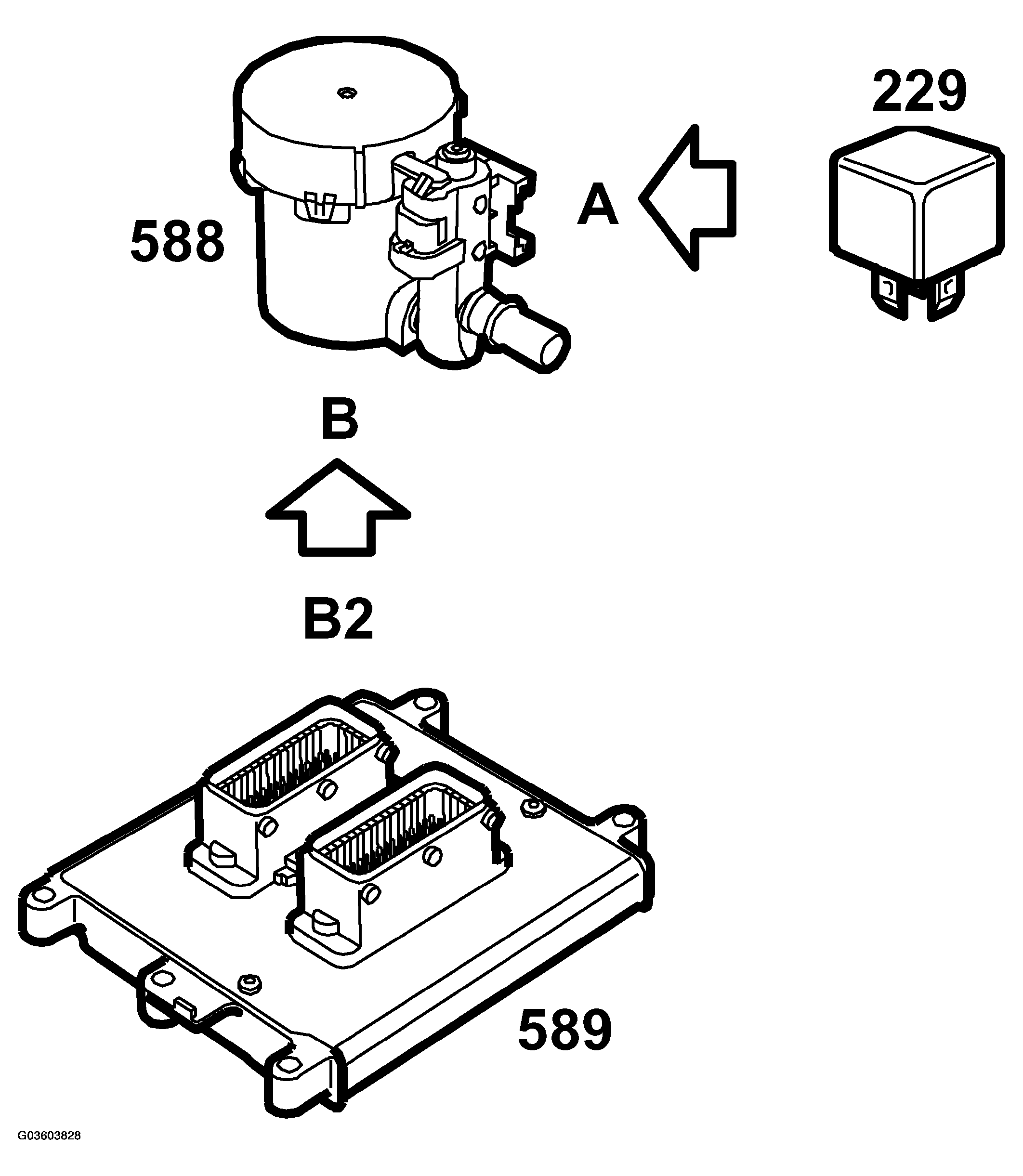

CONNECTION
| Pin No. |
Signal type |
Description |
| A |
Power supply, B+ |
Solenoid valve's power supply from the main relay. |
| B |
Control |

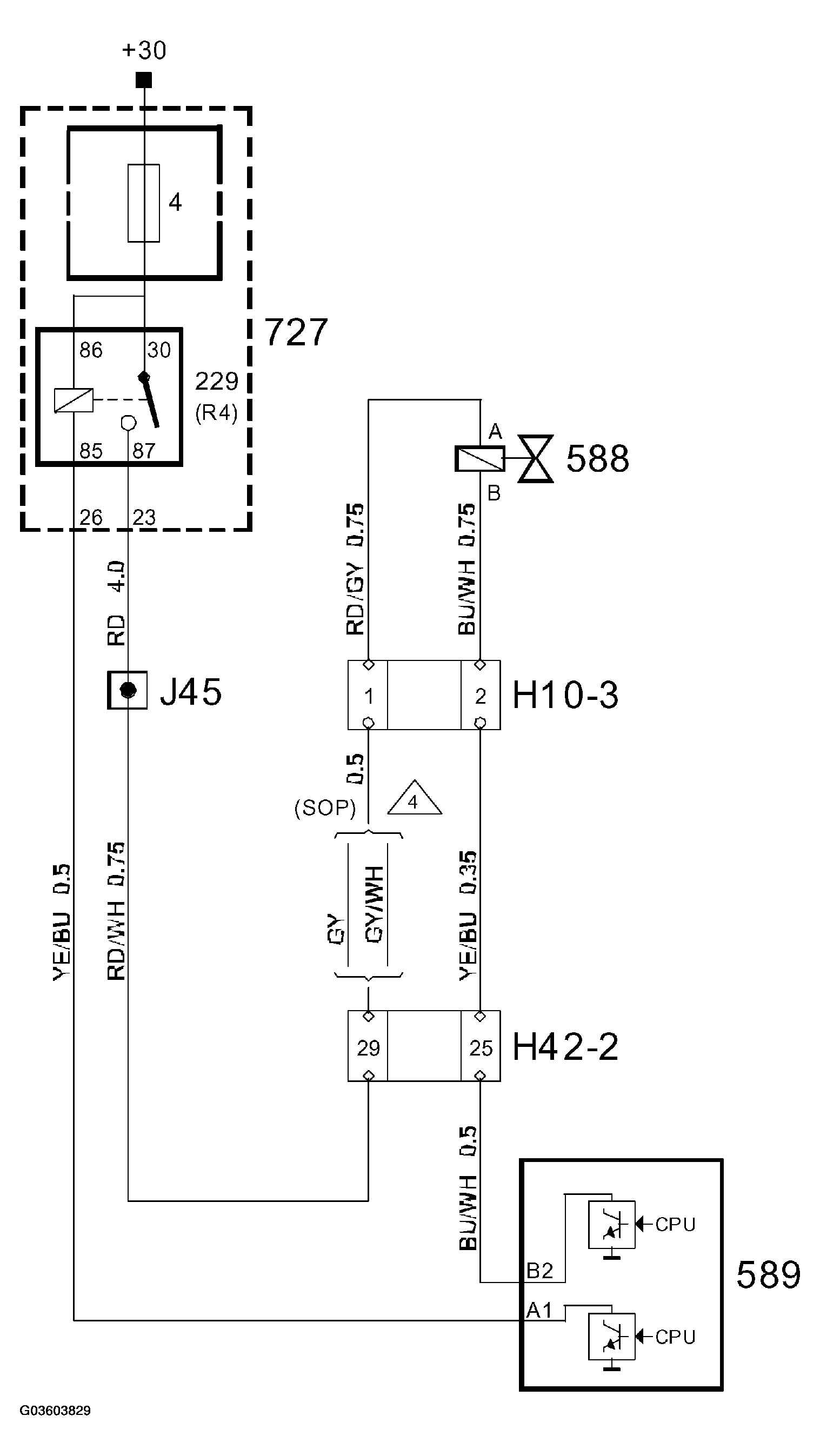

Solenoid valve's control lead. The solenoid valve is grounded by ECM pin 2(B). |
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
The shut -off valve is open when there is no power.
