Filler cap

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

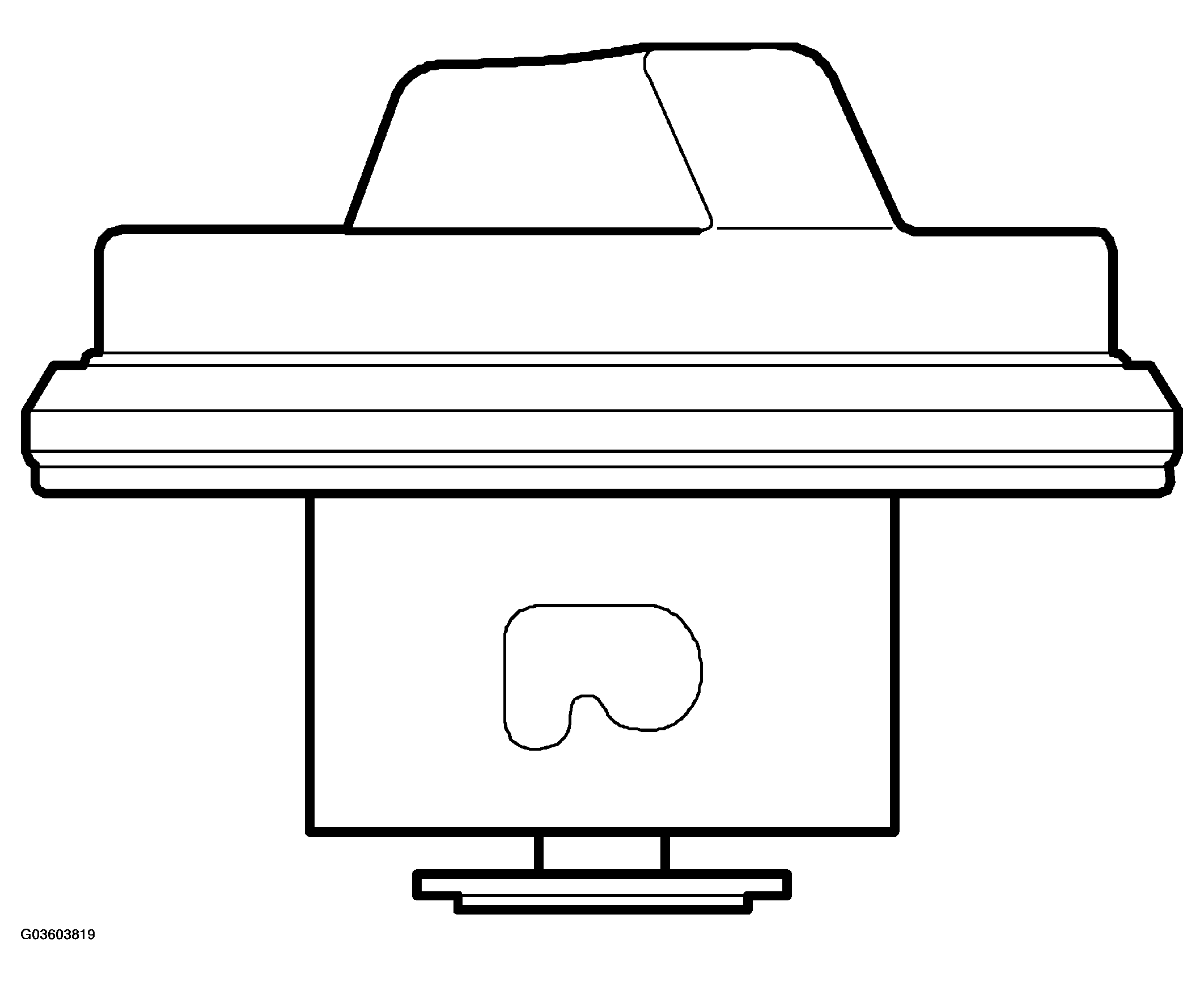

Fig 1: Identifying Filler Cap
G03603819Courtesy of SAAB-SCANIA OF AMERICA, INC.

The filler cap constitutes an important component in the tank integrity diagnosis. Trionic will generate a fault code if the tank integrity diagnosis indicates a leak.
