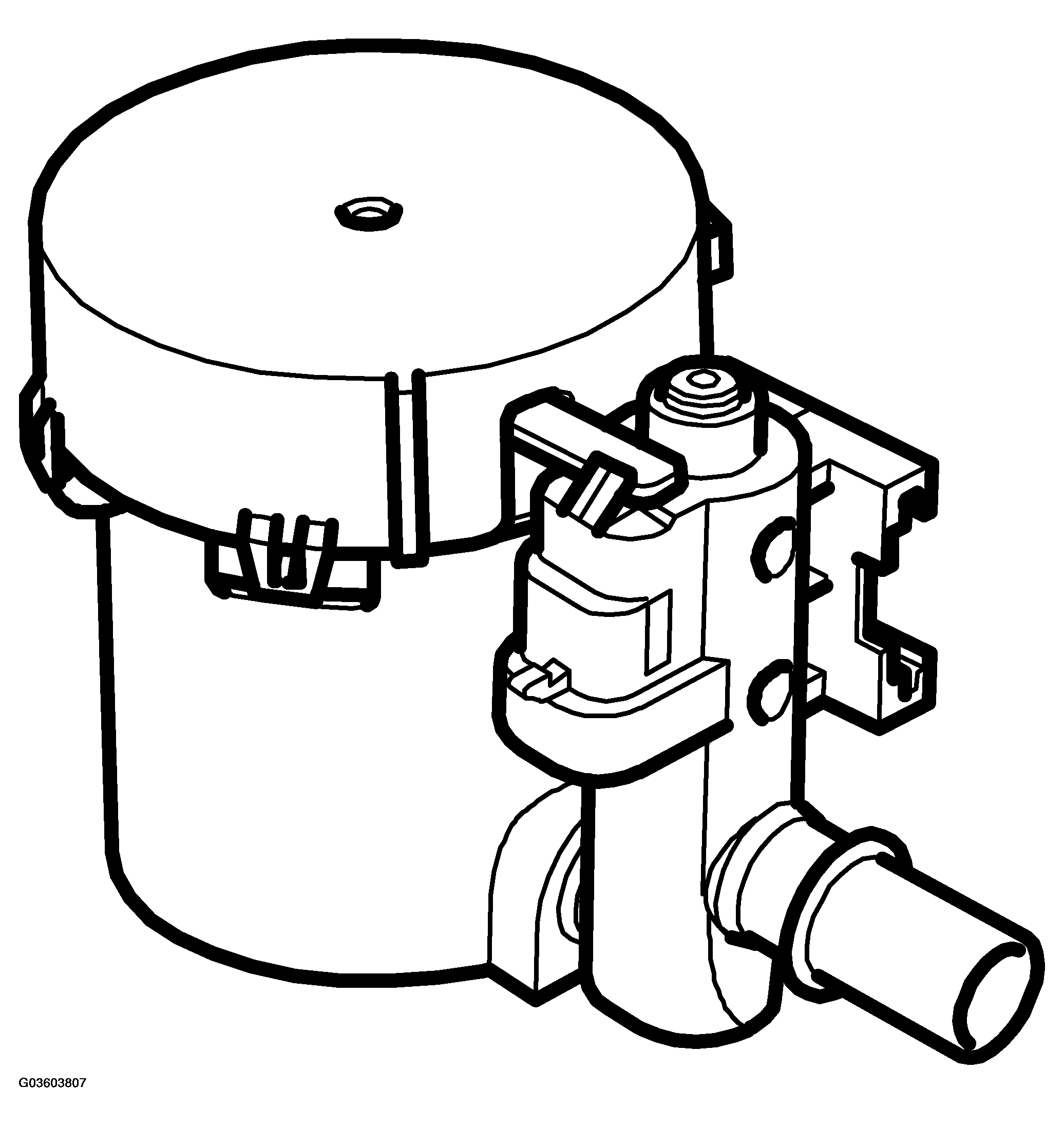

EVAP shut-off solenoid valve (588)
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. EVAP SHUT-OFF SOLENOID VALVE SPECIFICATION
| Type |
|
Pierburg |
| Characteristics |
|
Zero current open |
| Resistance at 20 °C (68 °F) |
Ohm |
24,5+/-1,5 |
| Power supply |
12 V |
|
