To remove

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper engine cover.

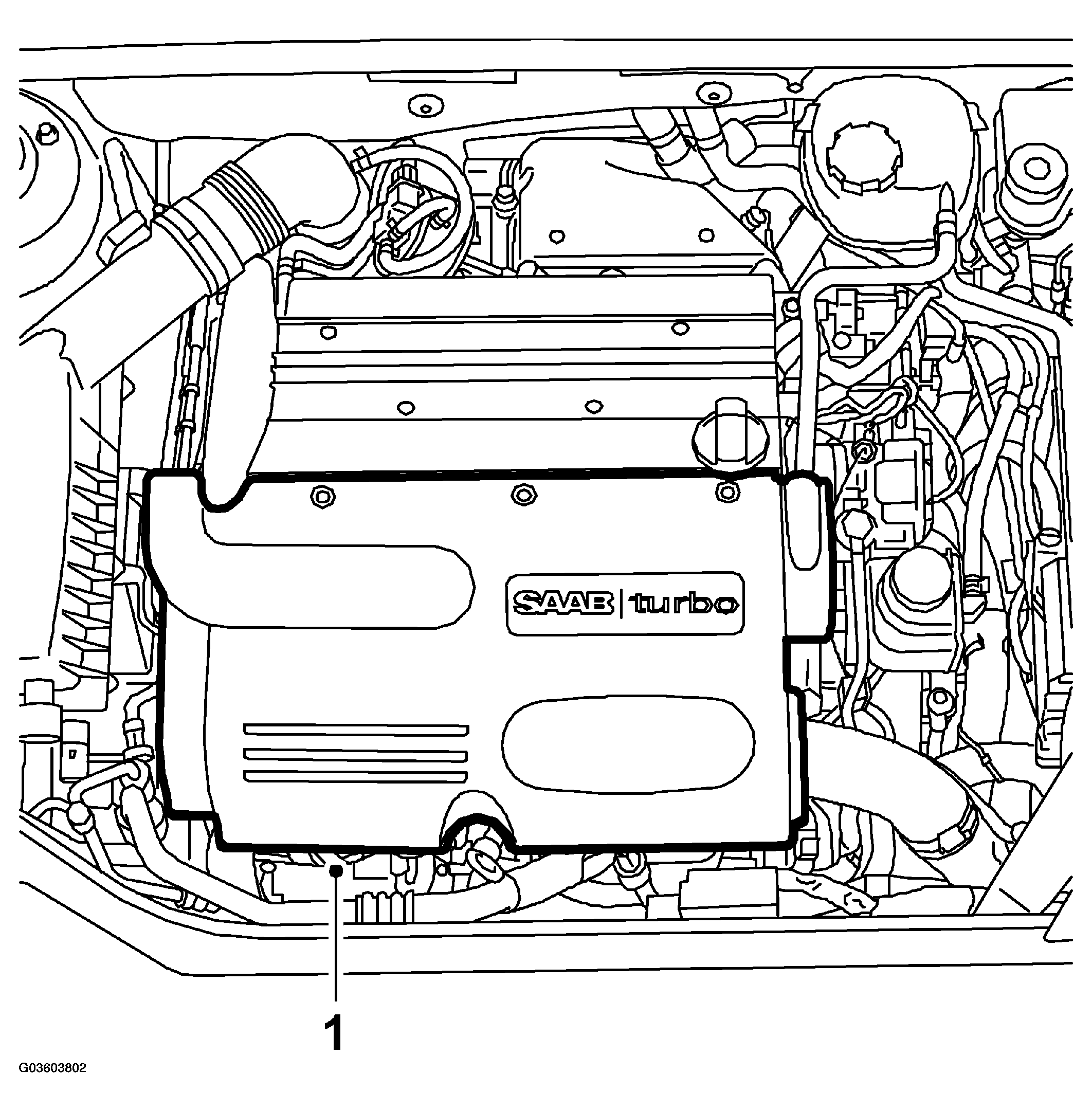

    Fig 1: Removing Upper Engine Cover
    G03603802Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector.

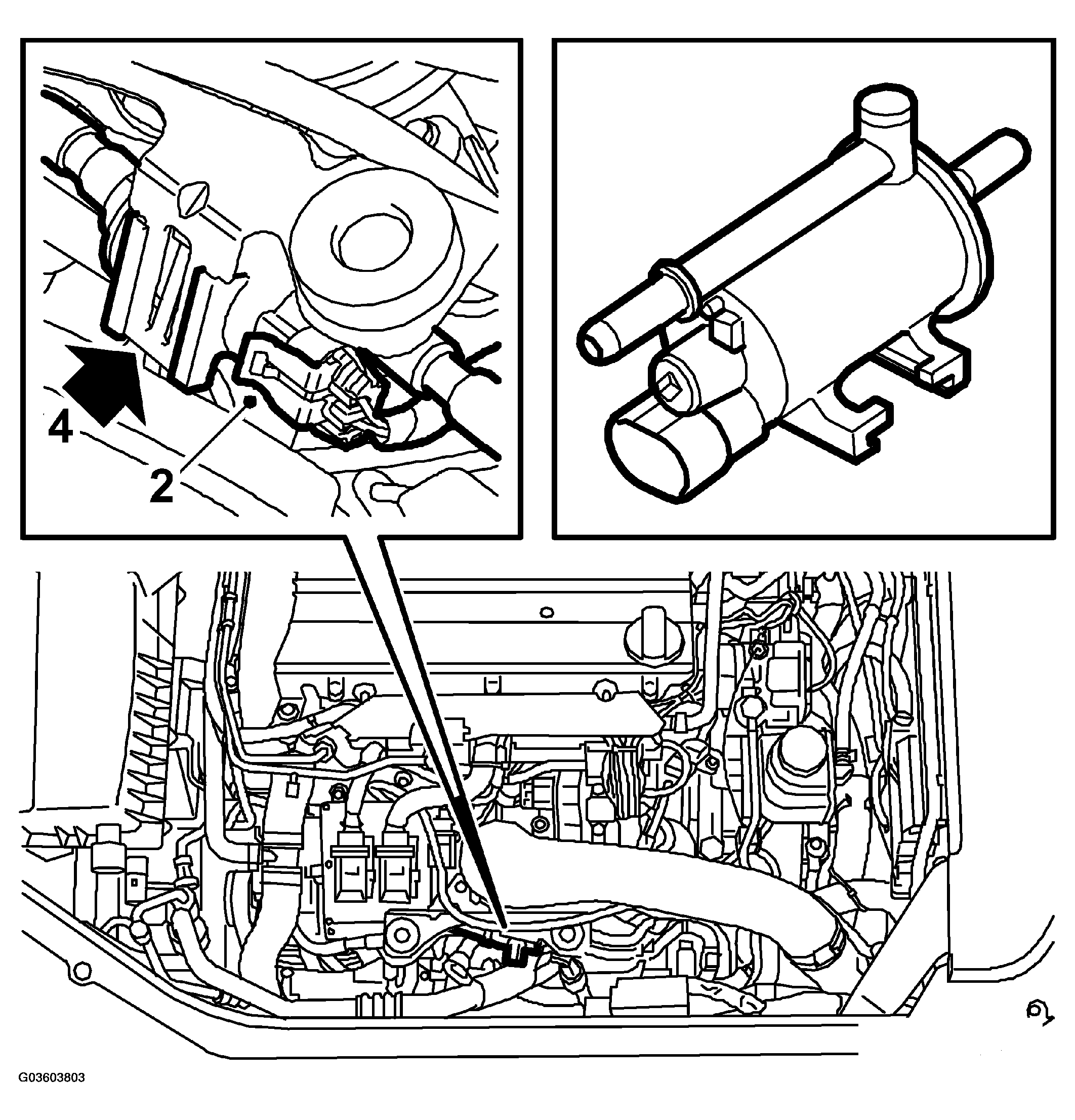

    Fig 2: Removing Valve From Bracket
    G03603803Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Press in the lock and the hose quick-release coupling from the valve (outlet hose to turbo inlet and intake manifold).
  4. Carefully bend up the bracket catch and remove the valve from the bracket.
  5. Press in the lock and disconnect the inlet hose quick-release coupling and remove the valve.
