To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the valve to the bracket and put in place the catch securing the valve.

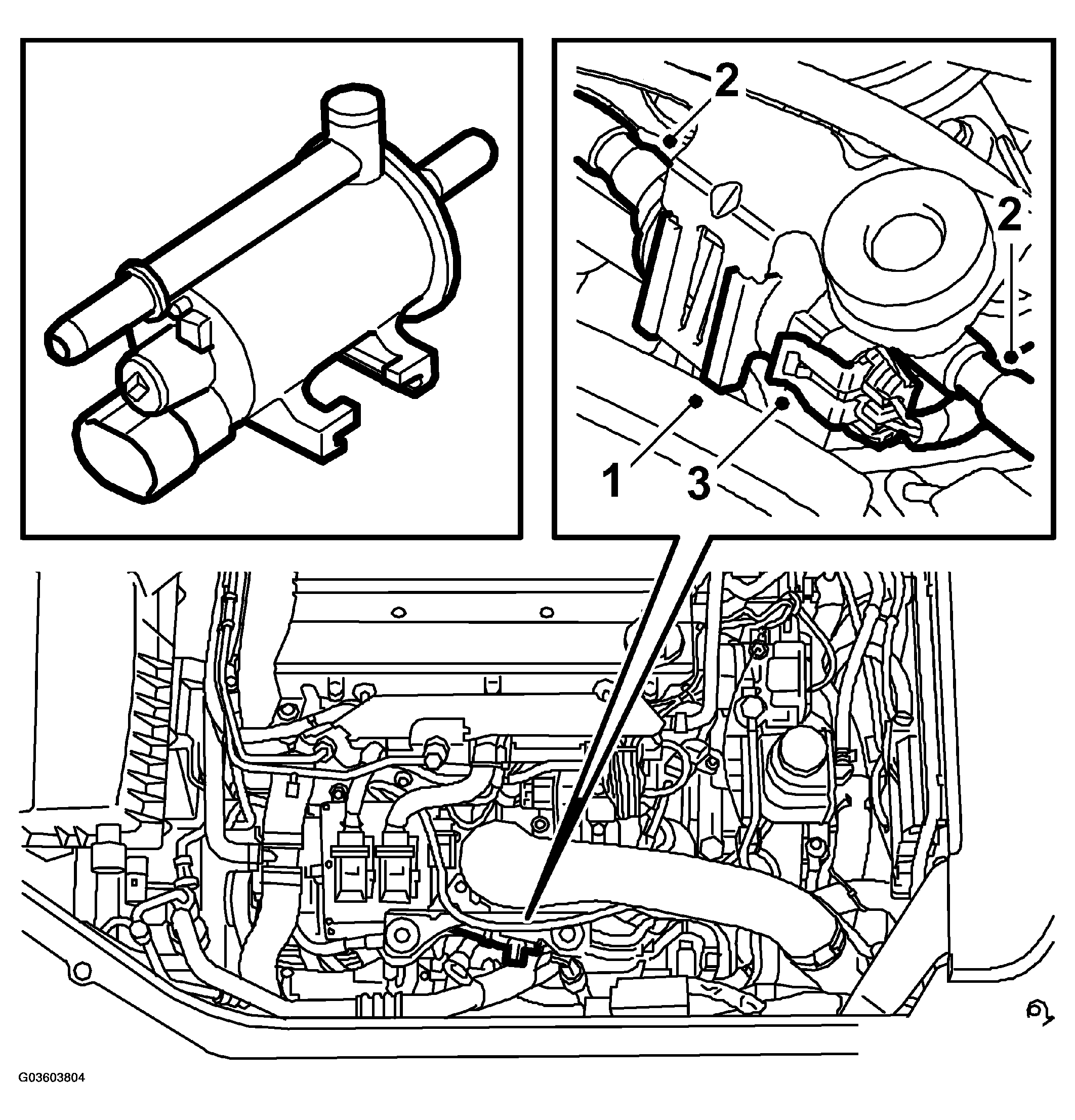

    Fig 1: Fitting Valve To Bracket
    G03603804Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Connect the hose to the valve, making sure the quick-release couplings are secured.
  3. Plug in the connector.
  4. Replace the upper engine cover.

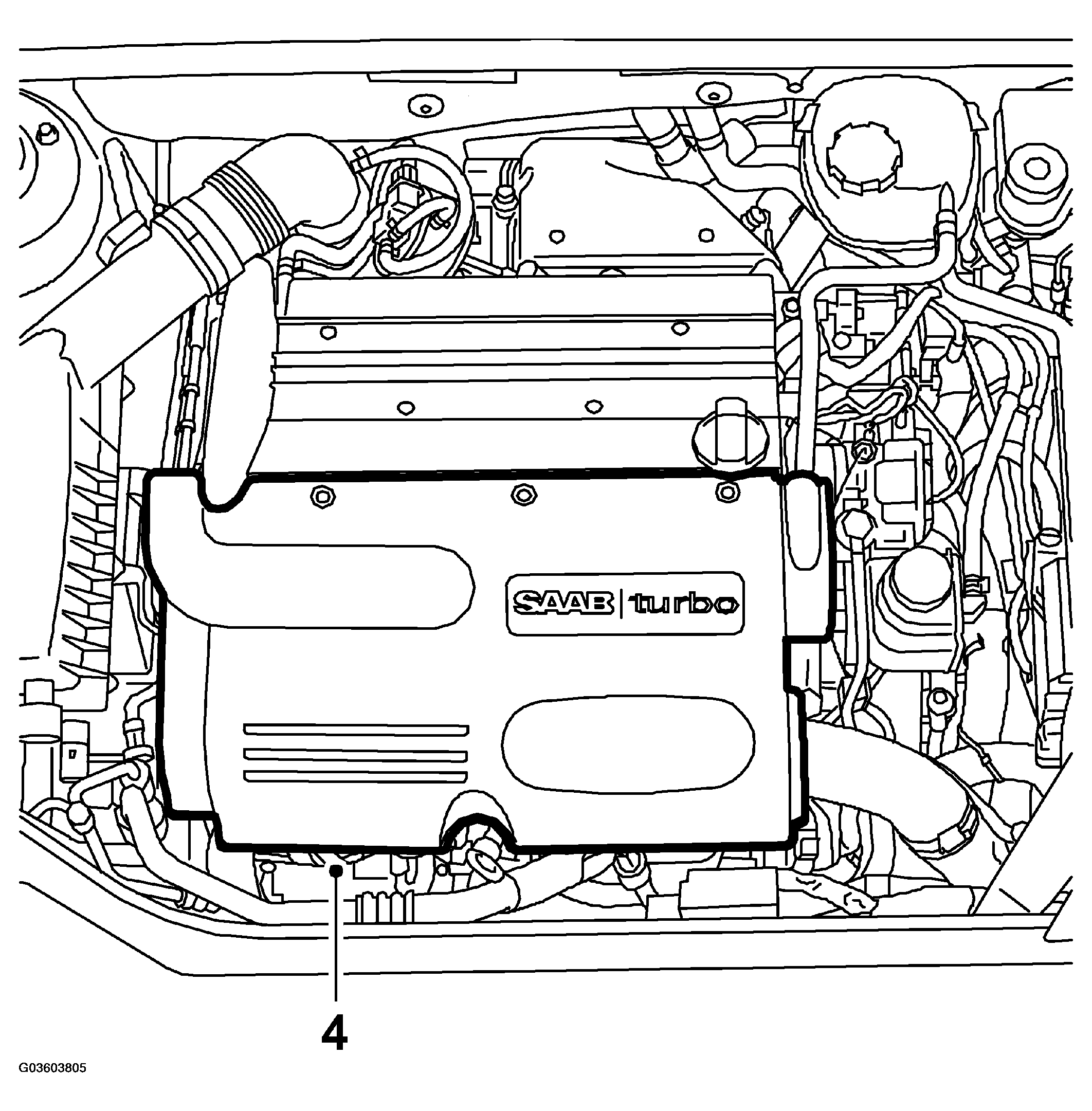

    Fig 2: Replacing Upper Engine Cover
    G03603805Courtesy of SAAB-SCANIA OF AMERICA, INC.
