Checking for leaks

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the pressure tester is in good condition and not leaking.
  2. Check that the filler cap is on tight.

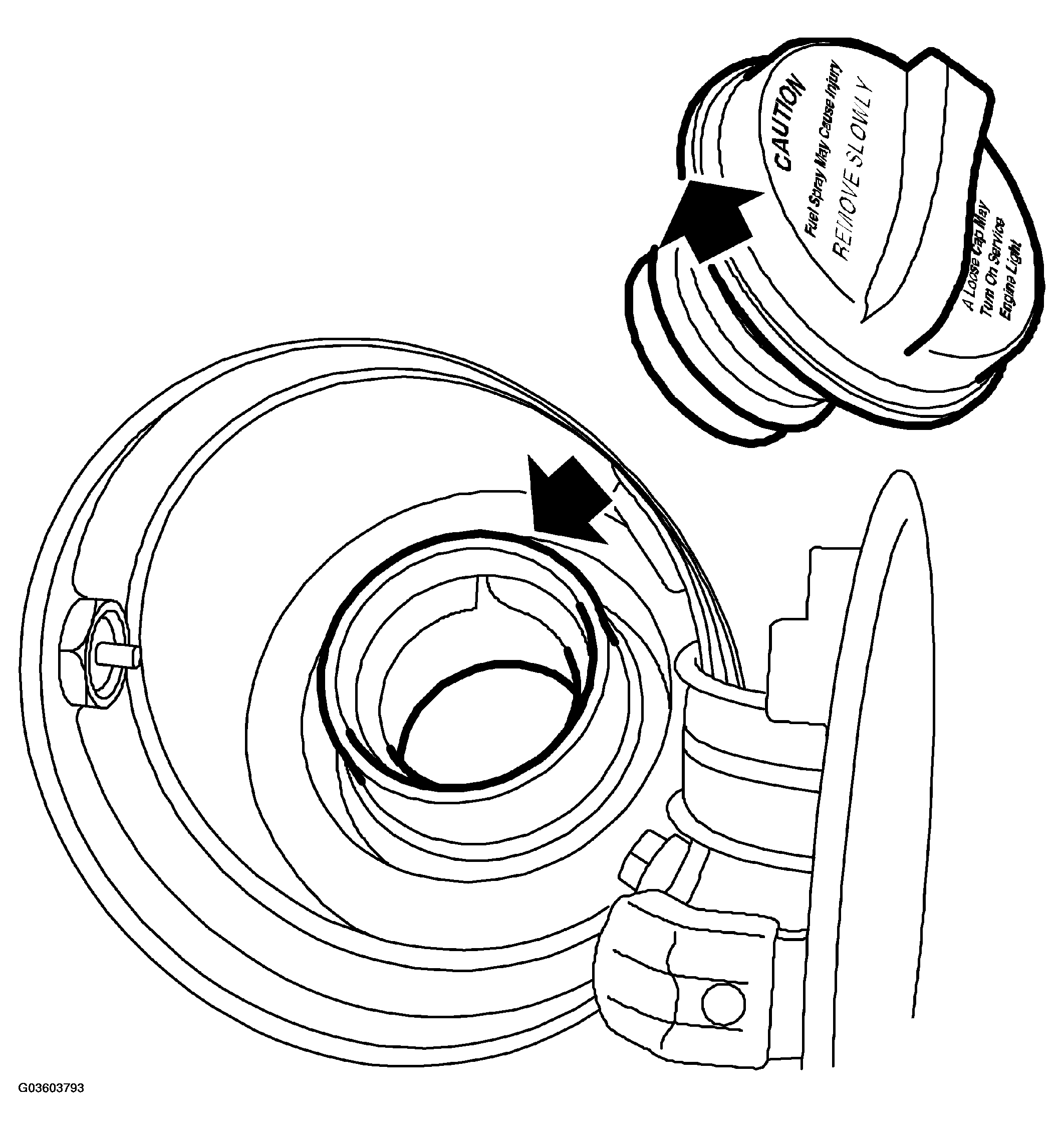

    Fig 1: Checking Filler Cap Is On Tight
    G03603793Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Connect pressure tester J41413 to the service port at the purge valve in the engine compartment.
    NOTE: Do not fit the pressure tester adapter to the filler cap connection, as this would prevent the filler cap from sealing in its correct position.

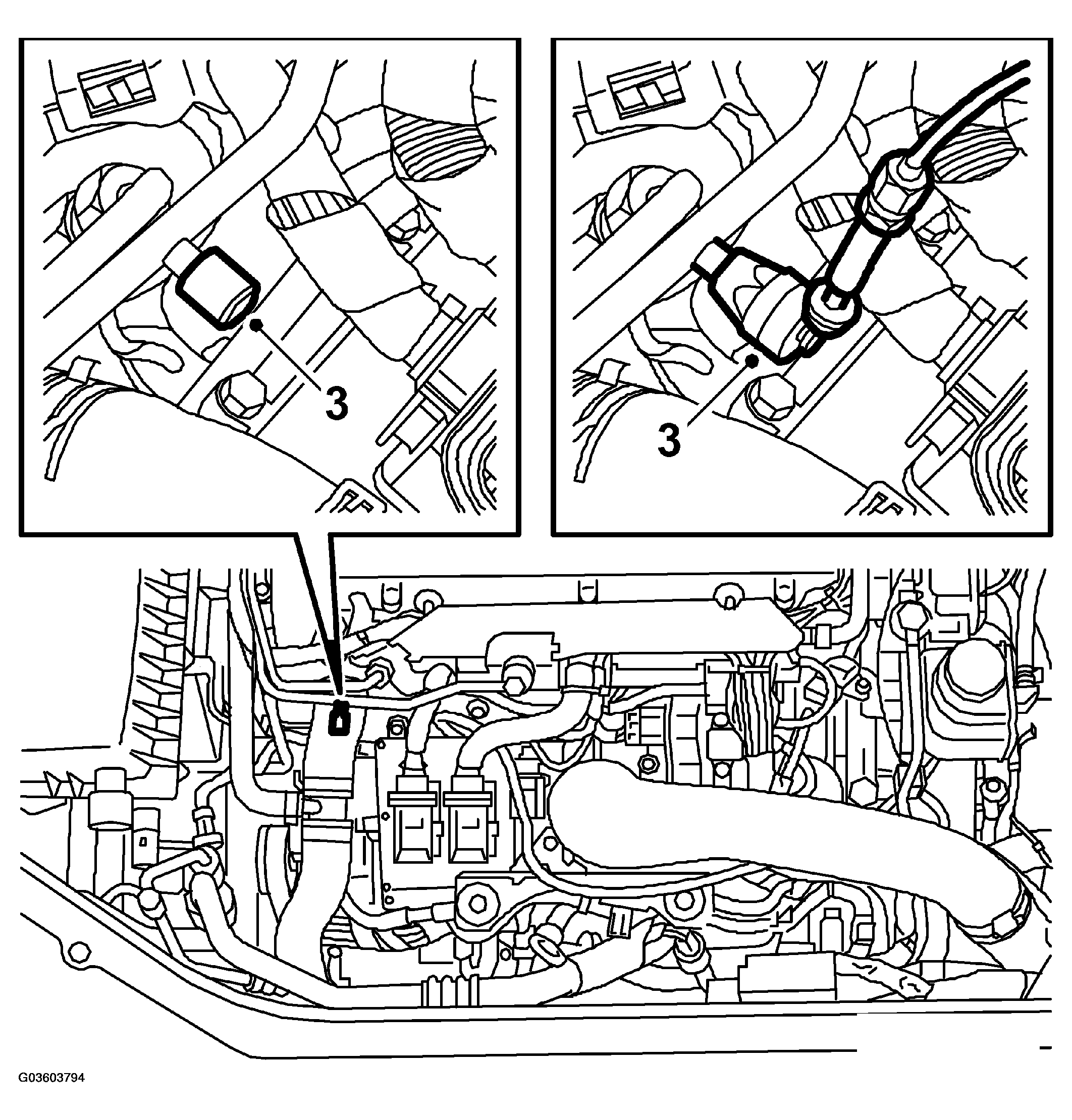

    Fig 2: Connecting Pressure Tester J41413 To Service Port At Purge Valve In Engine Compartment
    G03603794Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Activate the EVAP canister cut-off valve using the diagnostic tool.
    • Select the "ACTIVATE" menu.
    • Select "TANK BLEEDING OFF/ON".
    • Select "ON"
  5. Pressurize the system and perform the pressure test, following the instructions in the Kent-Moore manual.
