Horn relay

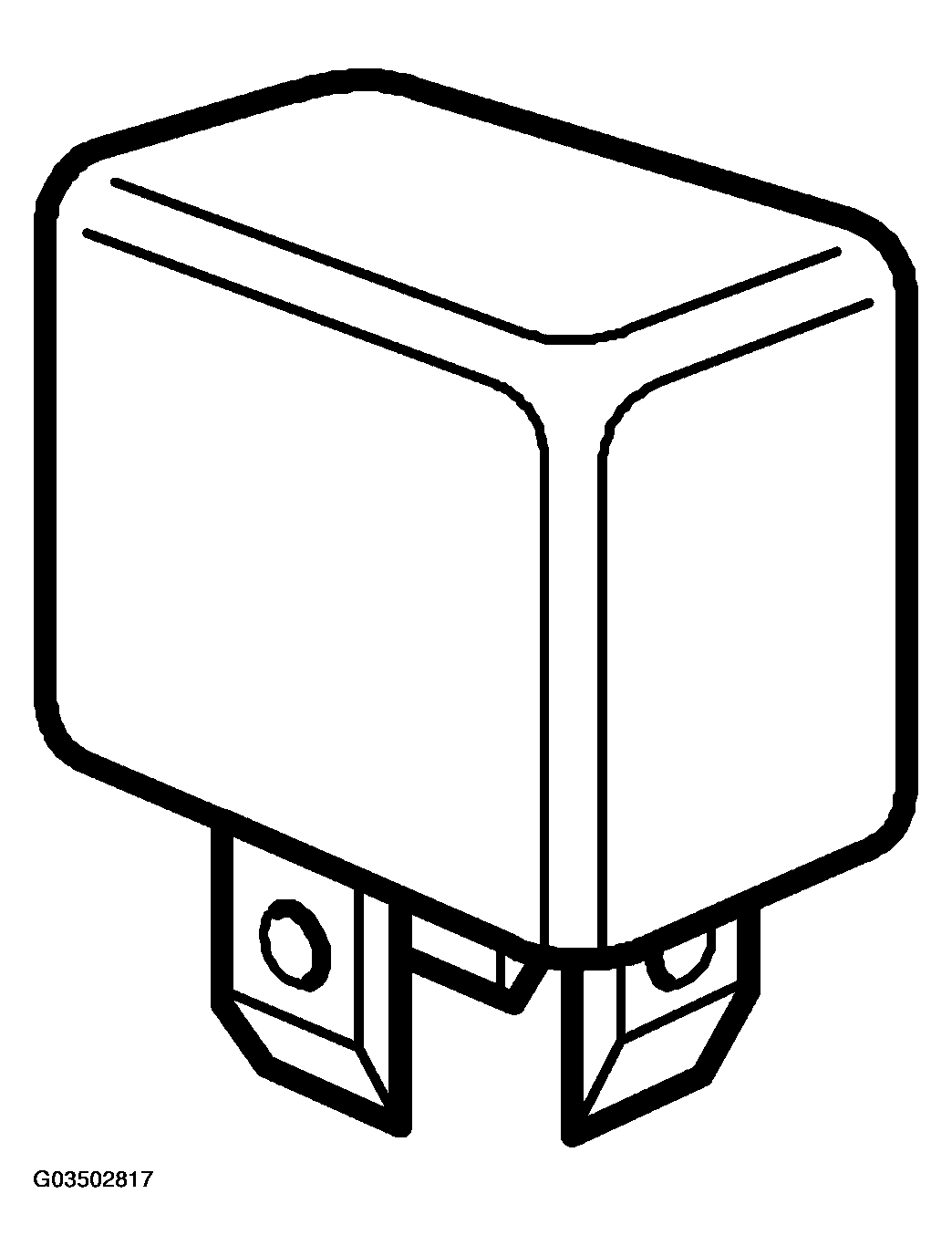

Fig 1: Identifying Horn Relay
G03502817Courtesy of SAAB-SCANIA OF AMERICA, INC.
HORN RELAY DESCRIPTIONS TABLE

Location   Main relay board, dashboard
Resistance of winding ohms 105 +/- 10%
Nominal operating current V 7 +/- 2
