Warning lamp, brake fluid level

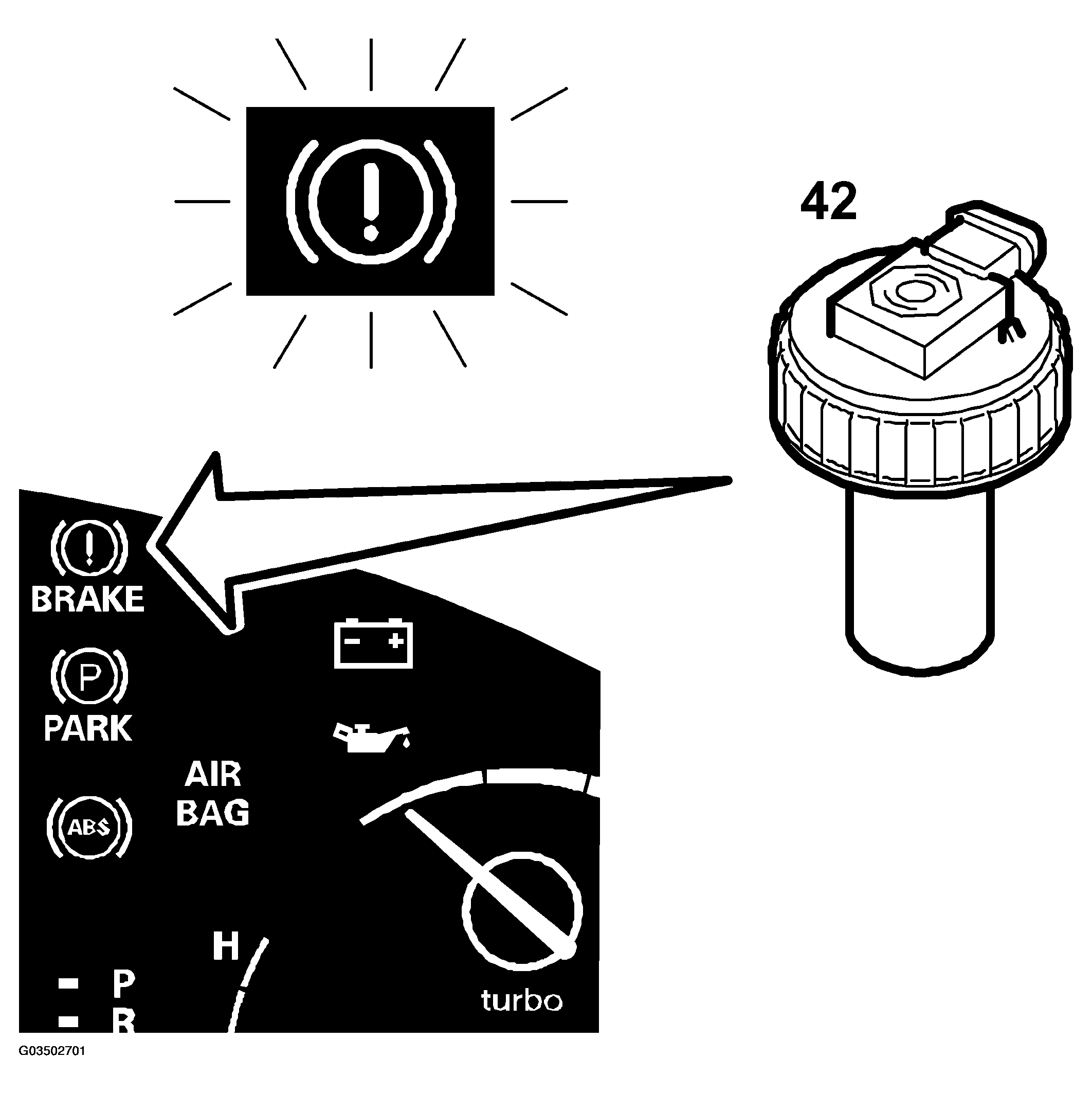

The brake fluid level warning lamp is located in the right-hand section of the main instrument unit and warns the driver if the level in the brake fluid reservoir becomes too low. The lamp also comes on if there is a fault in the ABS system.

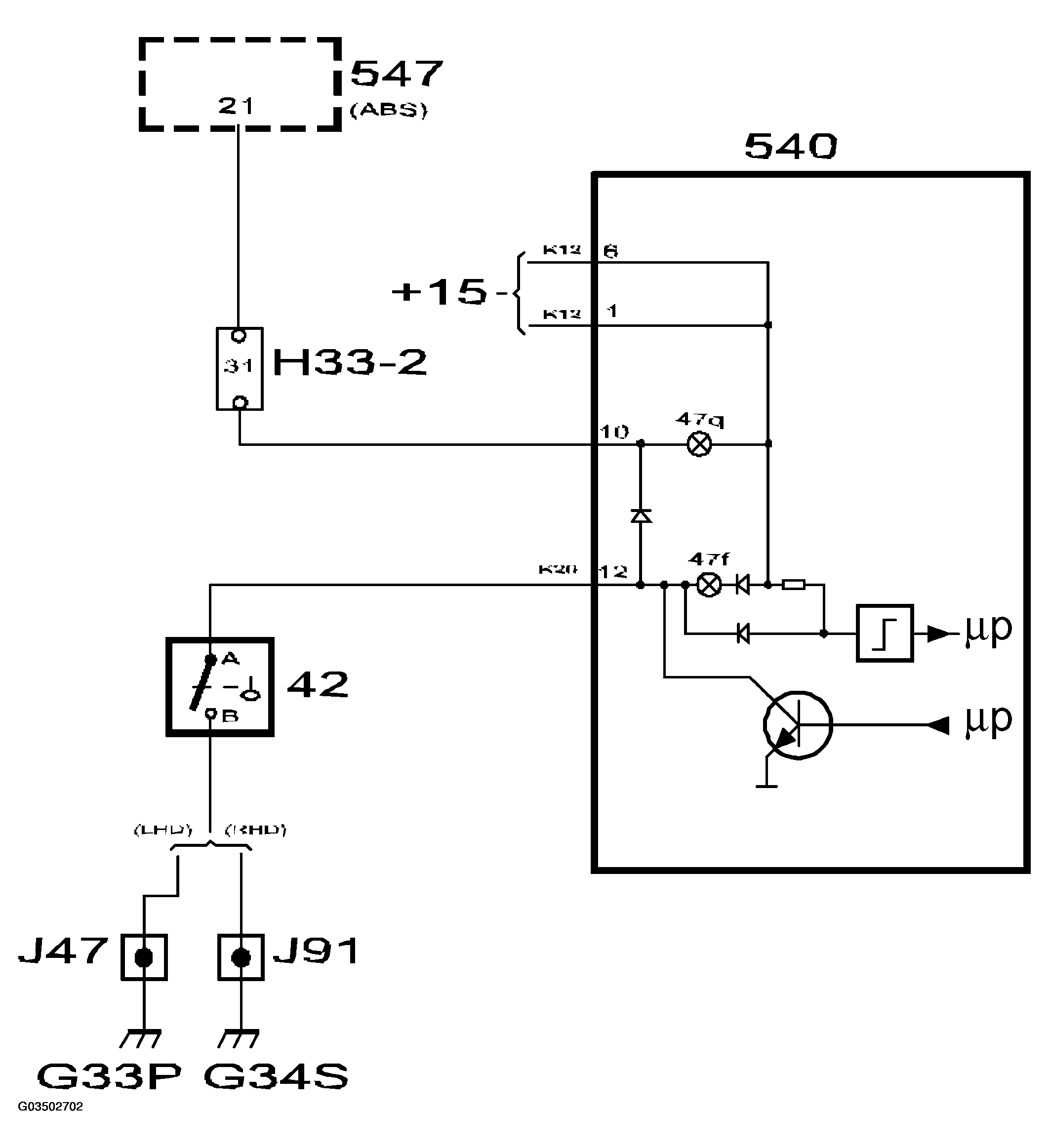

The lamp is supplied with current in the main instrument unit and grounded via terminal 12 (K20) of the brake fluid reservoir.
If the level is too low, the central warning lamp will also come on and at engine speed above 310 RPM, MIU will send a request to SID to activate the acoustic signal.
The main instrument unit lights the brake fluid level warning lamp for 3 seconds when the ignition is turned on.
