SPORT indicator lamp

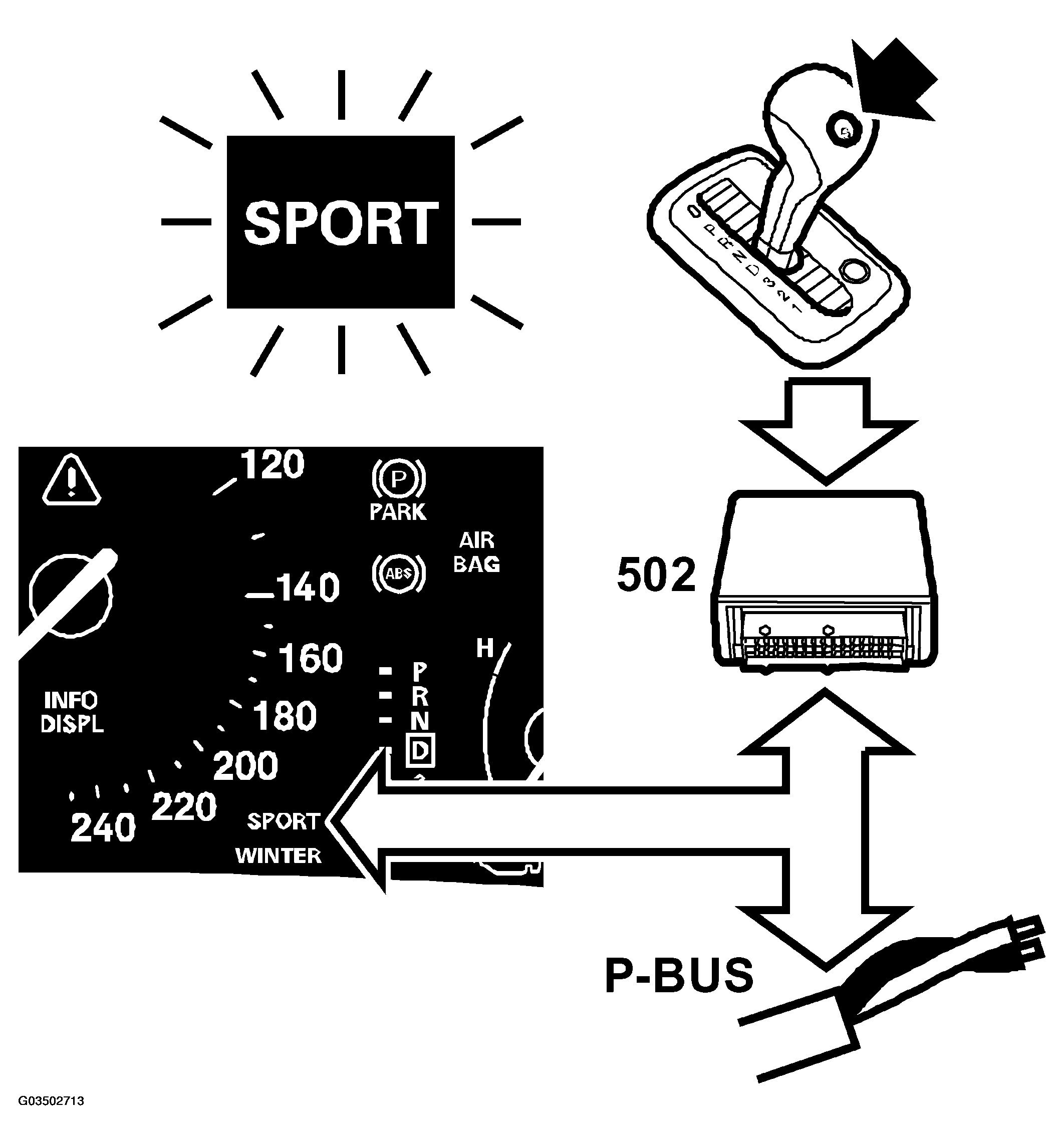

Fig 1: Identifying Communication Diagram - SPORT Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

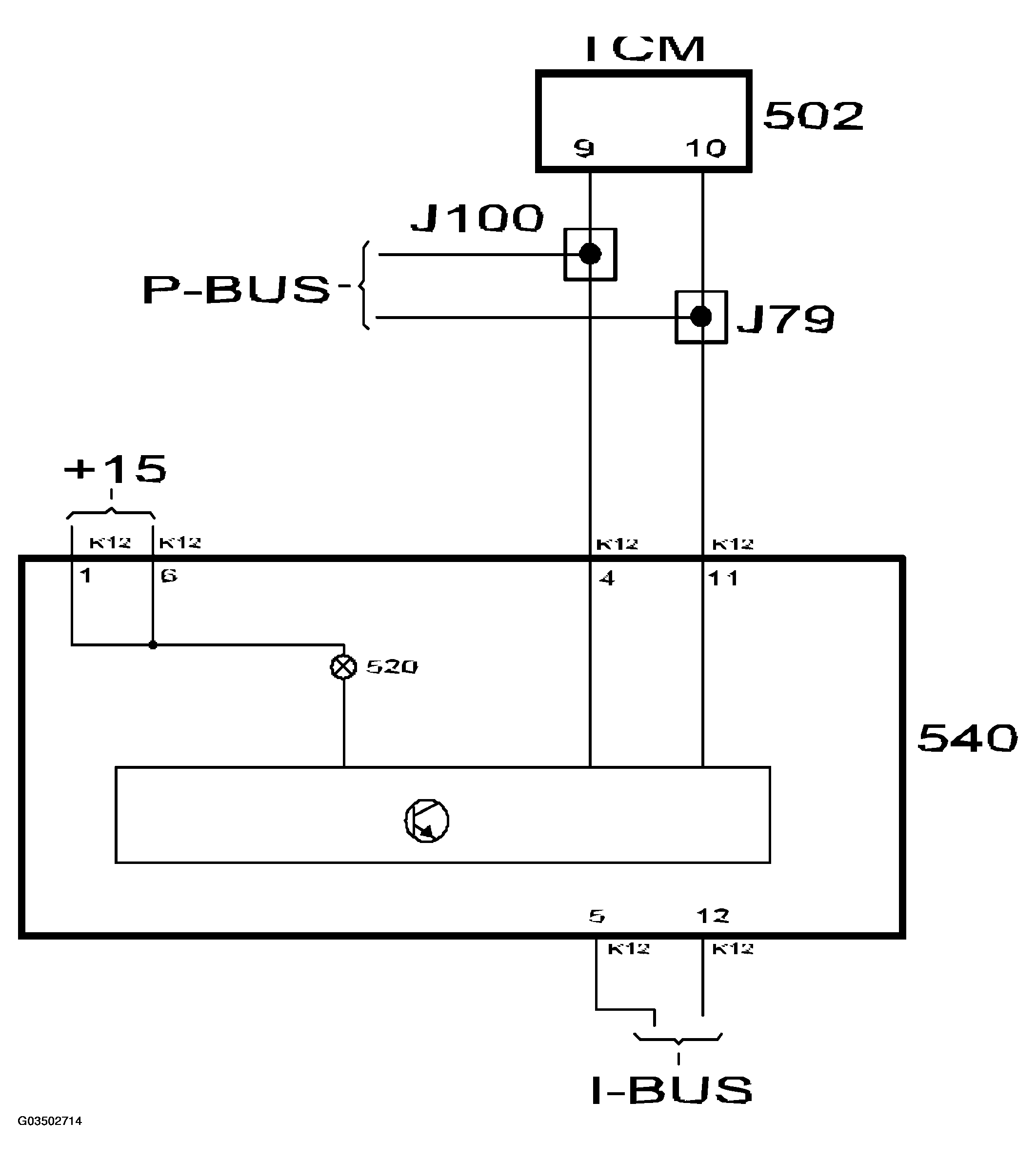

Fig 2: Identifying Communication Circuit Diagram - SPORT Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The SPORT indicator lamp on cars with automatic transmission will come on after pressing the Sport button (S) on the selector lever. The sport function can be activated with the selector lever in position D, 3, 2 and 1.

In SPORT mode, the transmission remains longer in each gear.

The lamp is powered from the main instrument unit and is grounded by the main instrument unit control module. TCM sends continuous bus information SPORT, unit ON/OFF.

The indicator lamp goes out under the following conditions:

• When the sport button is depressed again.
• When the transmission is in Limp-home mode.
• When Winter mode is selected.
• If the ignition is turned off and then on again.
• Selector lever to P or R.
