Main beam indicator lamp

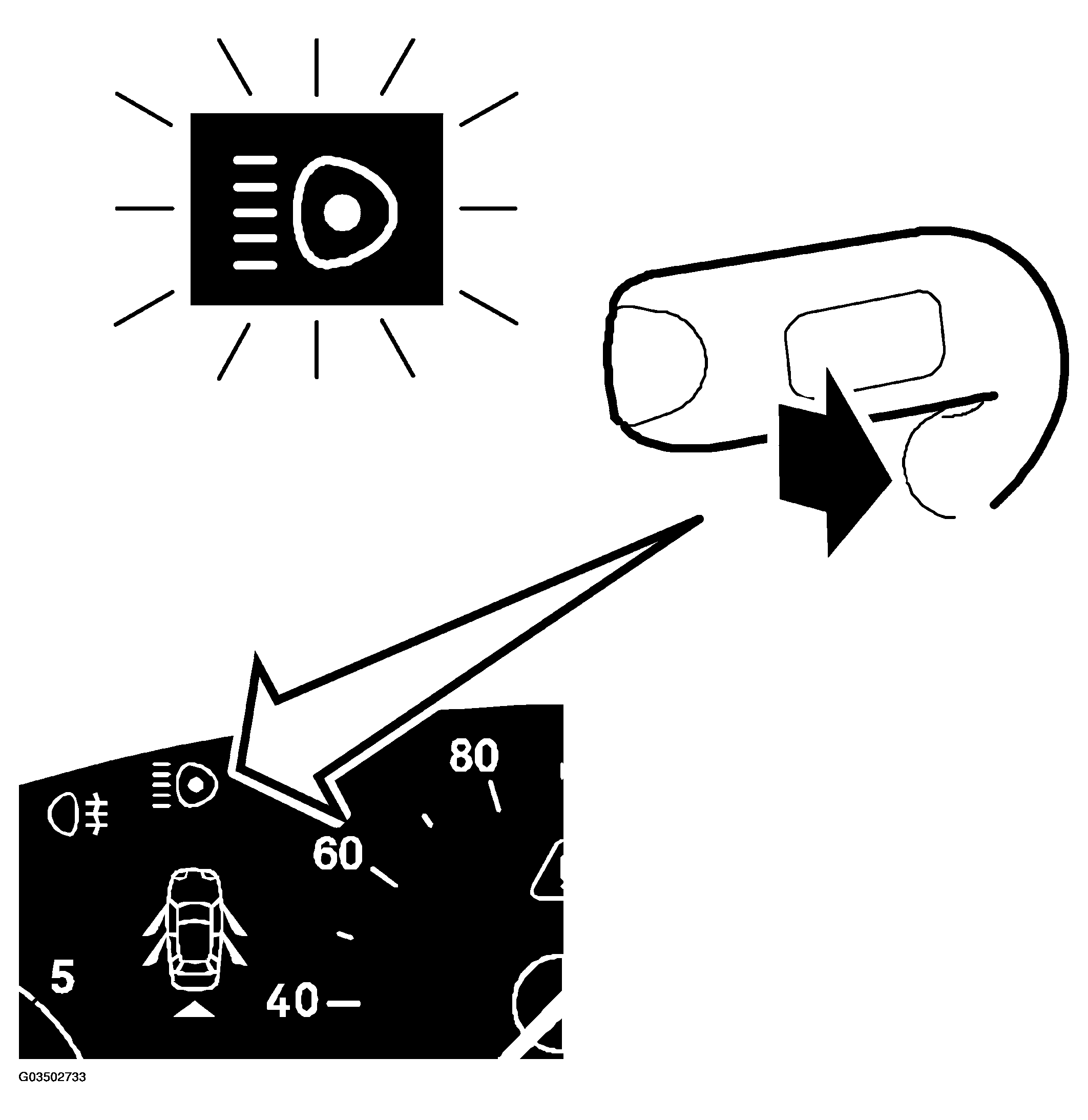

Fig 1: Identifying Main Beam Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

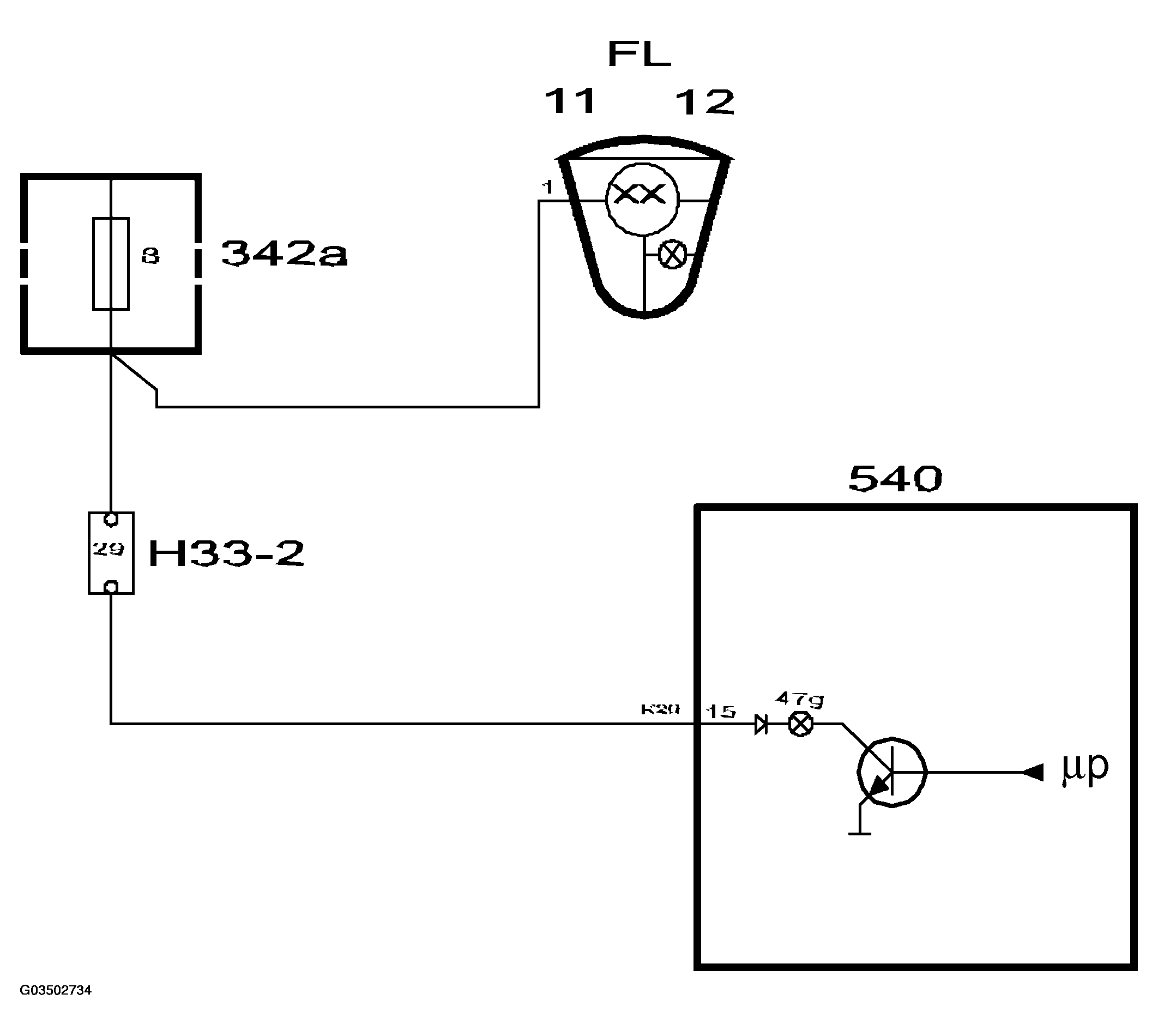

Fig 2: Identifying Circuit Diagram - Main Beam Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The indicator lamp is situated in the upper left-hand corner and informs the driver that main beams are switched on.

The lamp is supplied with current from main beam fuse 8 on pin 15 (K20) of the main instrument unit and is grounded in the main instrument unit.
