Lights-on indicator lamp

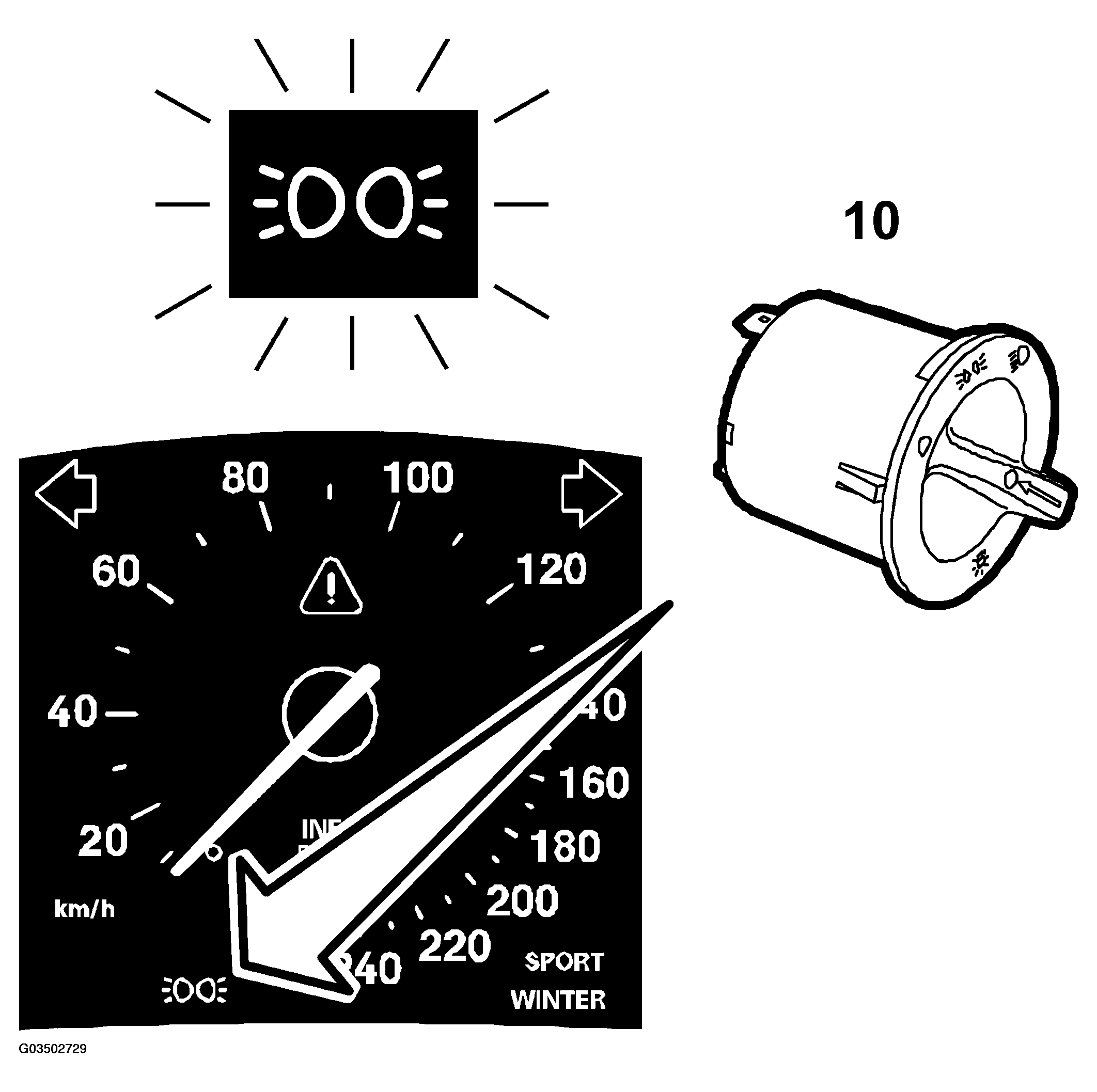

Fig 1: Identifying Lights-On Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

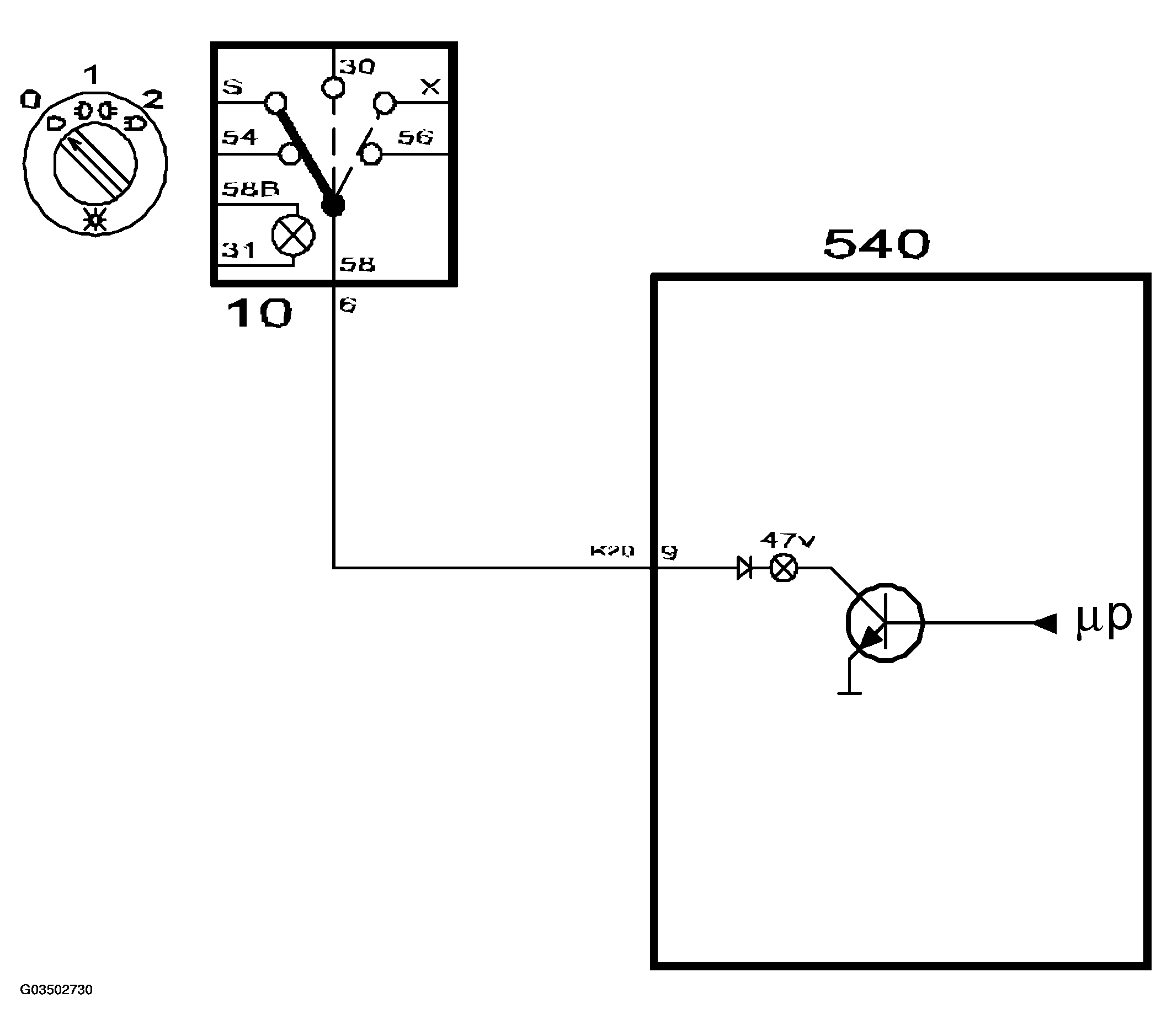

Fig 2: Identifying Circuit Diagram - Lights-On Indicator Lamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

An indicator lamp shows when the headlamps are switched on. The lamp is situated below the speedometer.

The indicator lamp is supplied with current from the lights switch on pin 9 (K20) of the main instrument unit and is grounded in the main instrument unit.
