Indicator lamp INFO DISPL

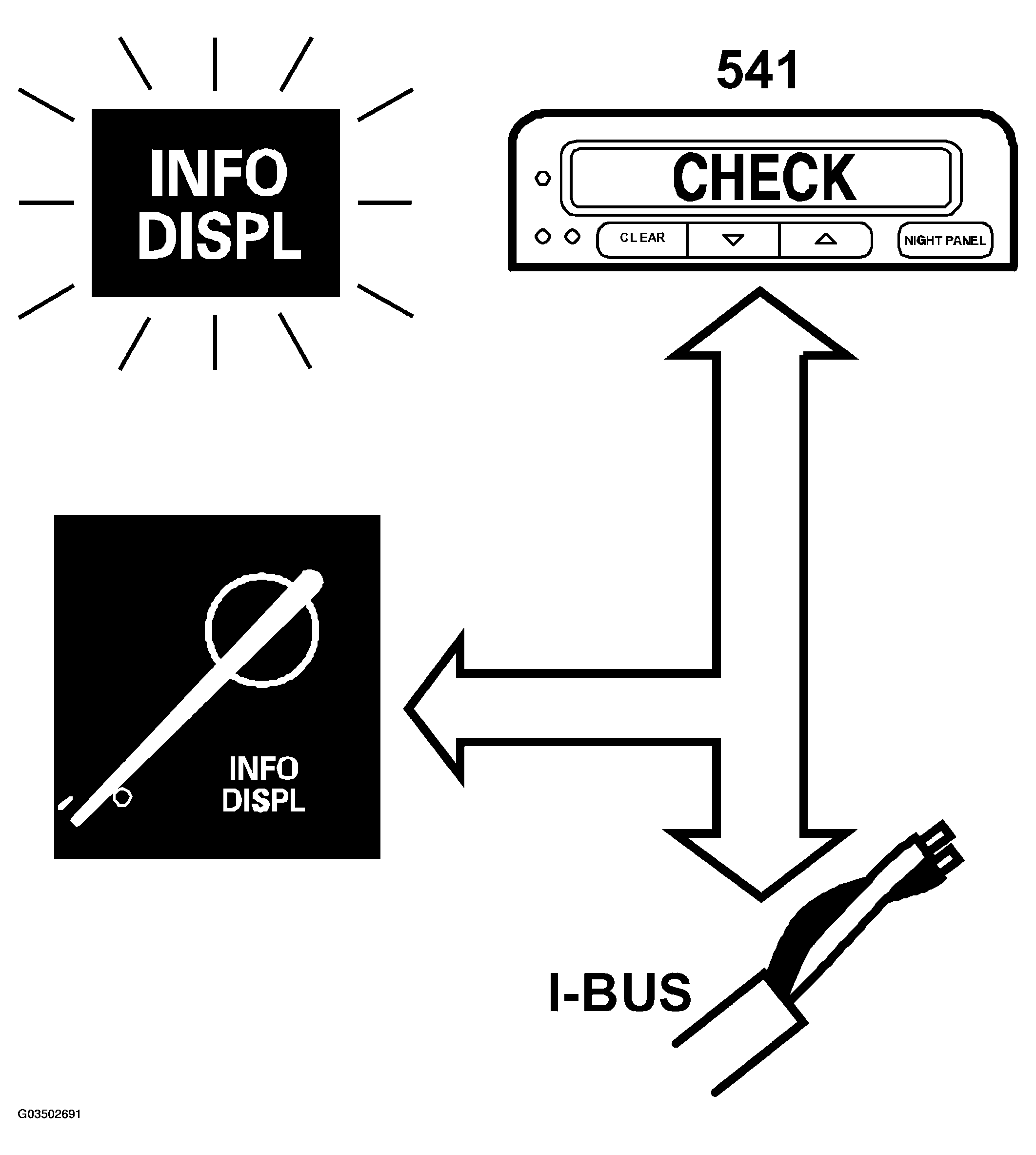

Fig 1: Identifying Communication Diagram - Indicator Lamp INFO DISPL

Courtesy of SAAB-SCANIA OF AMERICA, INC.

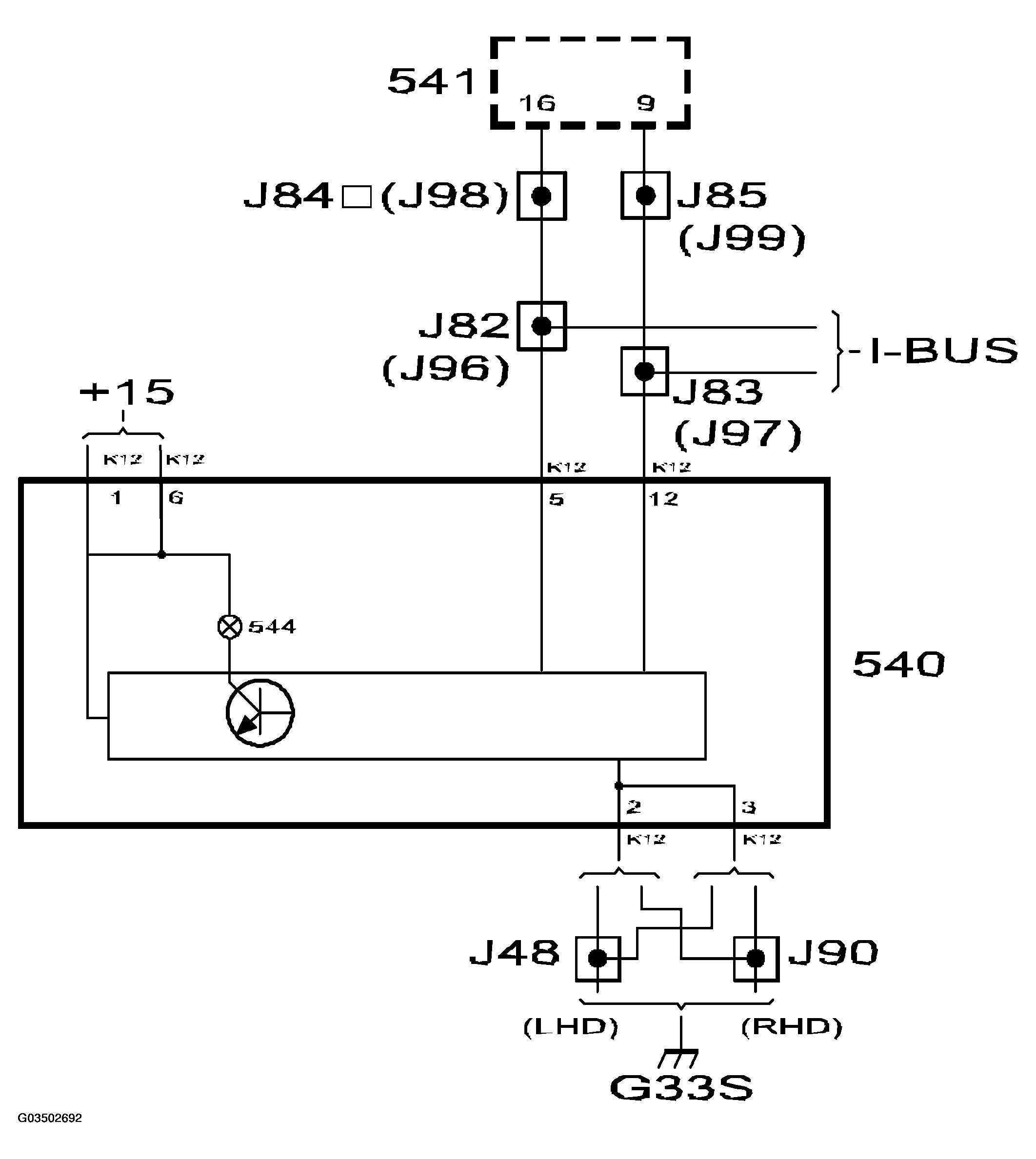

Fig 2: Identifying Communication Circuit Diagram - Indicator Lamp INFO DISPL

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The INFO DISPL lamp comes on when a message is displayed on SID. The lamp is powered with +15 from the main instrument unit and grounded by the main instrument unit control module. SID sends continuous bus information INFO DISPL, unit ON/OFF.

On receiving INFO DISPL ON, the control module grounds the output for the lamp which then lights up.

The main instrument unit lights this lamp for 3 seconds when the ignition is switched on.
