Door indication

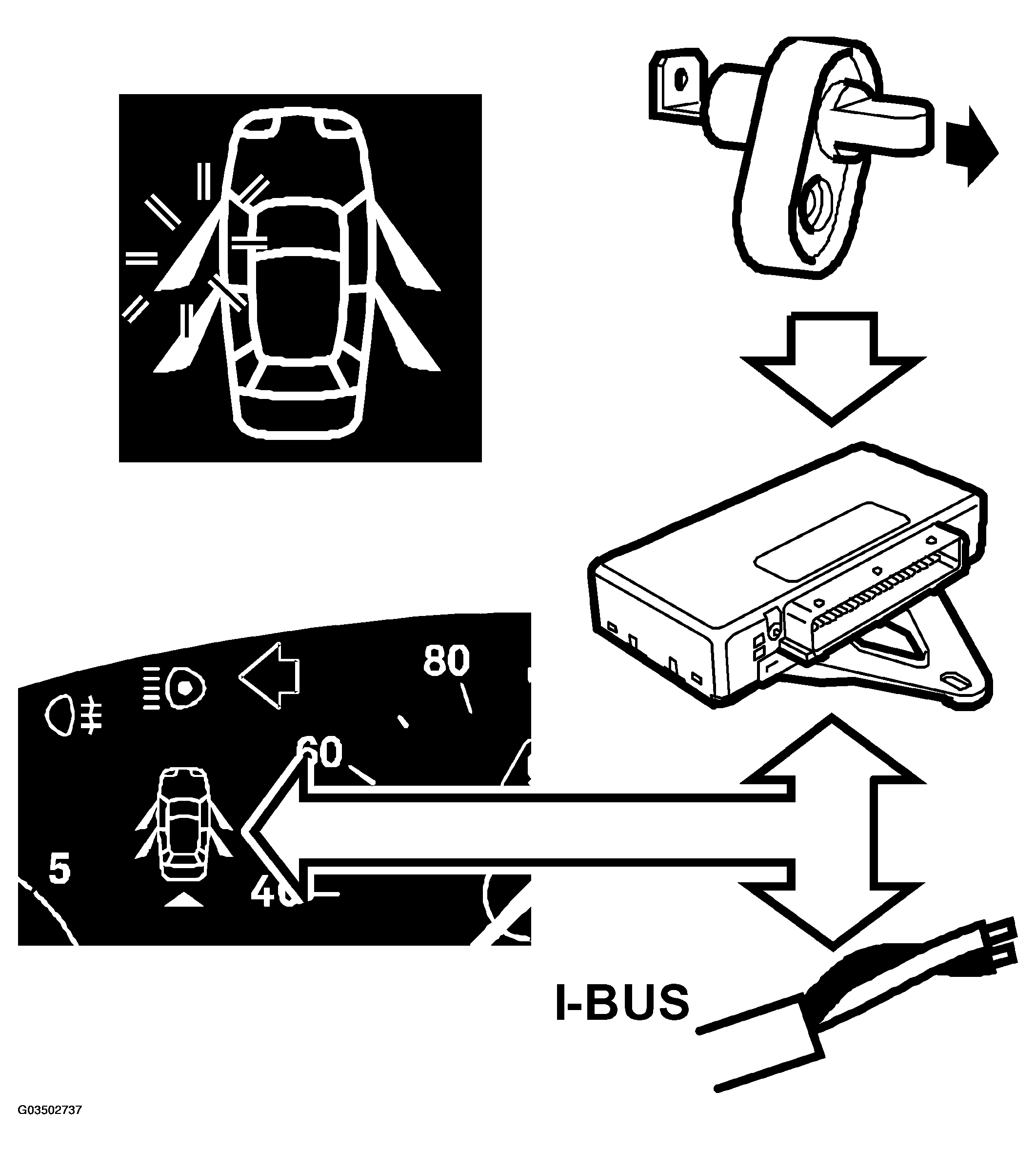

Fig 1: Identifying Communication Diagram - Door Indication

Courtesy of SAAB-SCANIA OF AMERICA, INC.

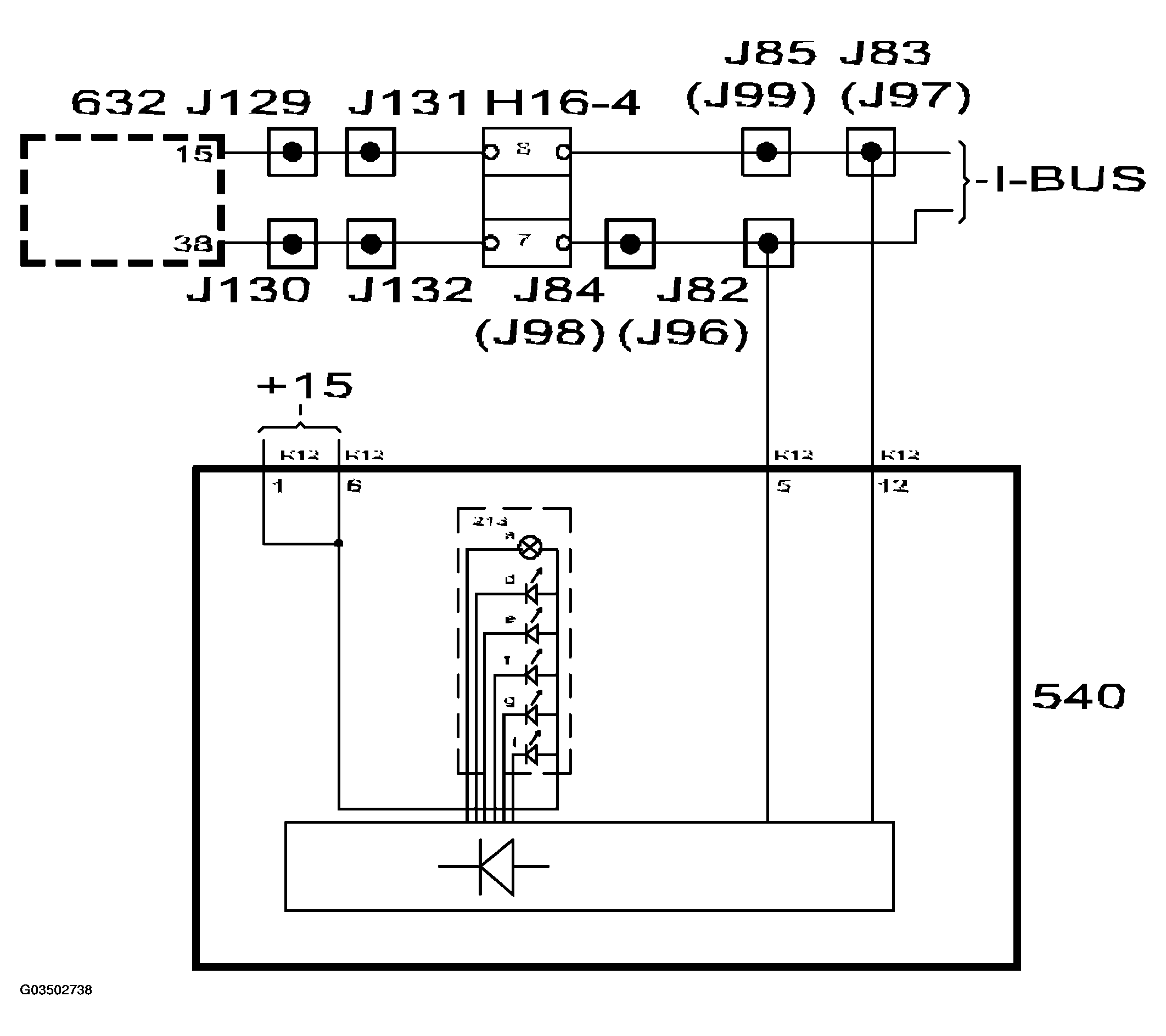

Fig 2: Identifying Communication Circuit Diagram - Door Indication

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Door indication (on the pictogram) informs the driver if any of the doors or the tailgate is open. It consists of five red LEDs and a lamp. The doors and the tailgate each have an LED. The car is indicated in orange by a lamp.

The LEDs and the lamp are supplied with current in the main instrument unit and grounded by the main instrument unit control module.

TWICE continuously sends bus information on the status of the doors and tailgate, unit OPEN/CLOSED.
