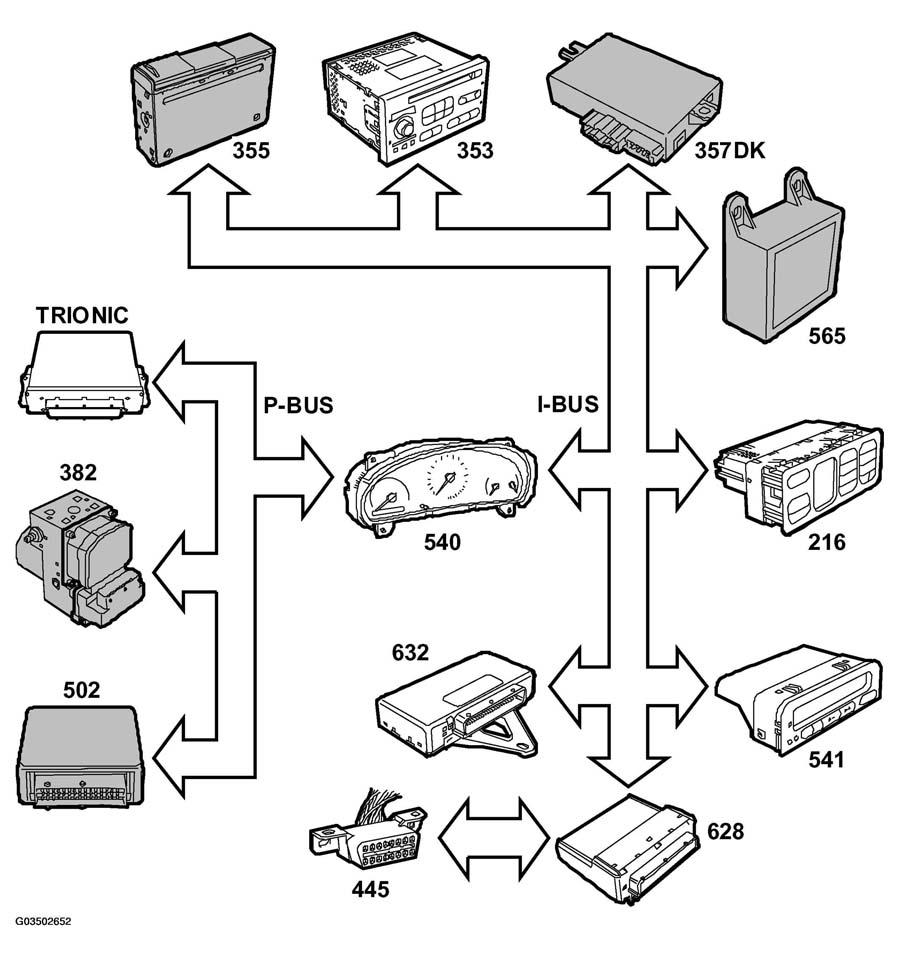

Control module outputs, bus
- Vehicle speed, see FUSES & CIRCUIT BREAKERS
- Sound is used by SID (541)
- Fuel consumed since start is used by SID (541).
- Fuel level is used by SID (541), Trionic (430b/589b) see FUSES & CIRCUIT BREAKERS
- Odometer reading is used by SID (541), see FUSES & CIRCUIT BREAKERS
- Identification number is used by TWICE (632)
- Diagnostics communication (445)
