Control module inputs

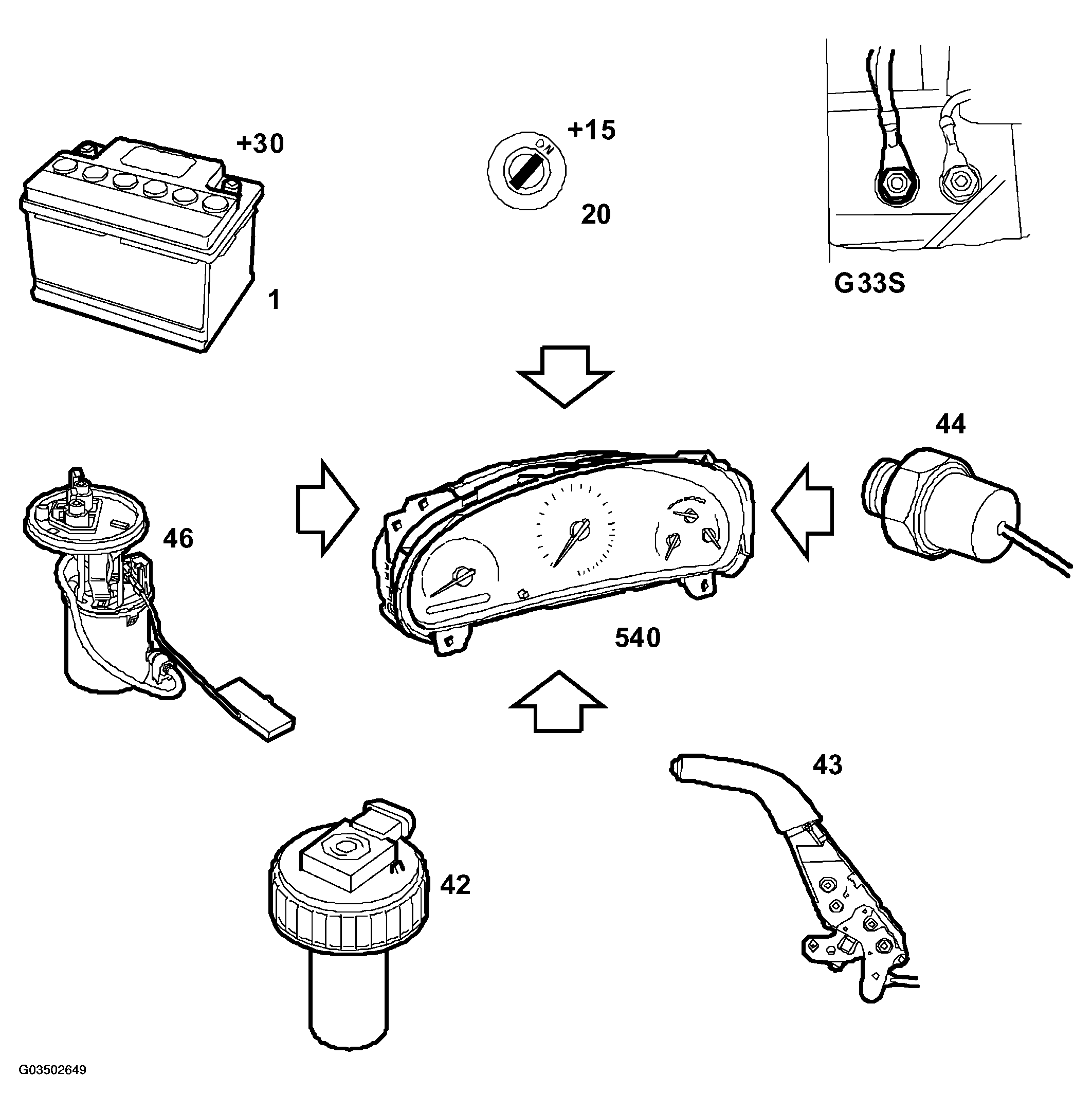

Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Battery voltage +30 (1), see FUSES & CIRCUIT BREAKERS
- Battery voltage +15 (20), see FUSES & CIRCUIT BREAKERS
- Ground connection (G33S), see FUSES & CIRCUIT BREAKERS
- Engine oil pressure warning lamp from the oil pressure sensor (44), see FUSES & CIRCUIT BREAKERS
- Brake fluid level warning lamp from the brake fluid level sensor (42), see FUSES & CIRCUIT BREAKERS
- Handbrake warning lamp (43), see FUSES & CIRCUIT BREAKERS
- Fuel level from the fuel level sensor (46), see FUSES & CIRCUIT BREAKERS
- Low fuel level indicator lamp (46), see FUSES & CIRCUIT BREAKERS

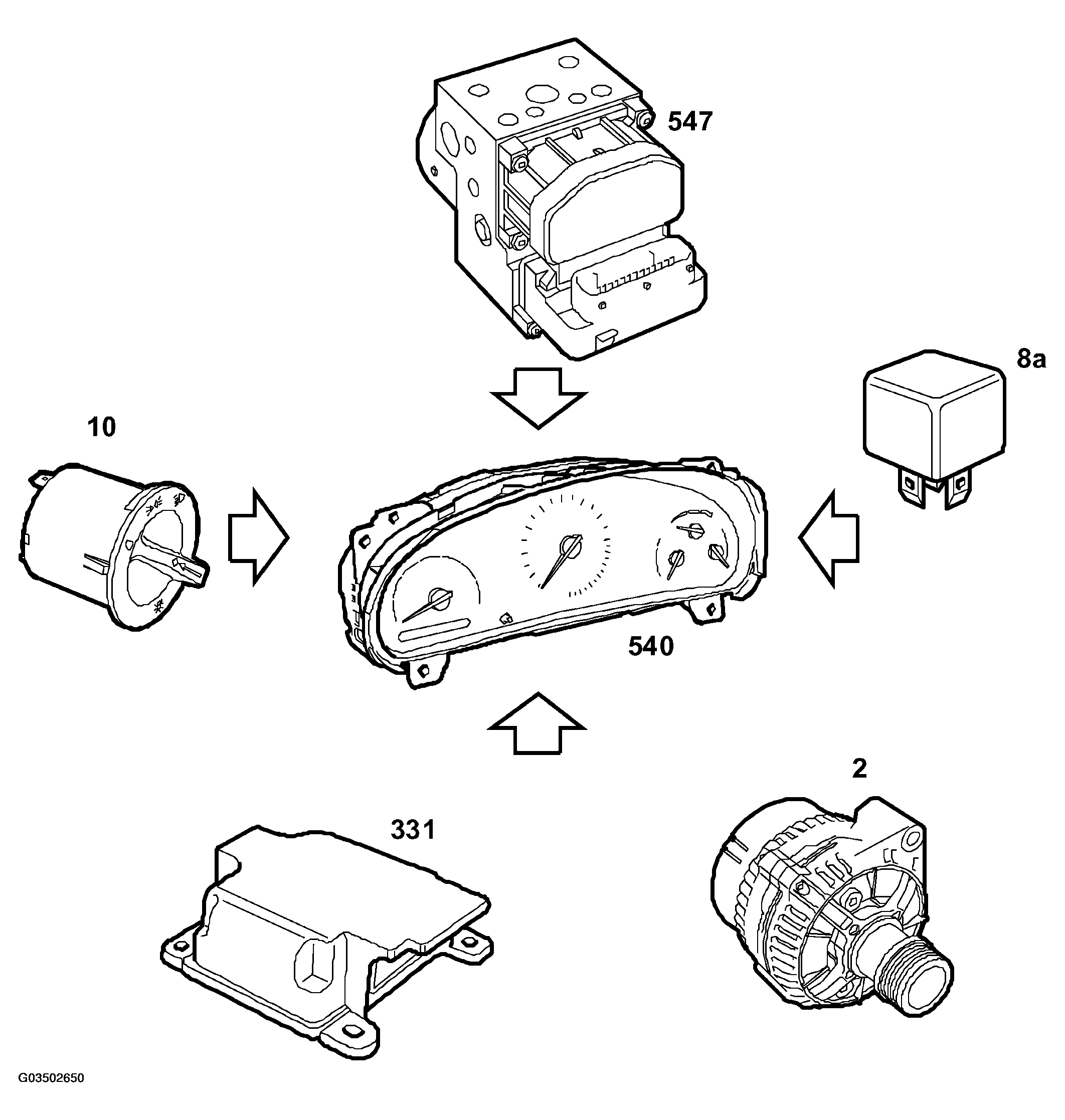

Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Vehicle speed signal from the ABS control module (547), see FUSES & CIRCUIT BREAKERS
- ABS warning lamp (ANTI LOCK) from the ABS control module (547), see FUSES & CIRCUIT BREAKERS
- AIRBAG warning lamp from the airbag control module (331), see FUSES & CIRCUIT BREAKERS
- Charging warning lamp, generator (2), see FUSES & CIRCUIT BREAKERS
- Lights-on indicator lamp from the light switch (10), see FUSES & CIRCUIT BREAKERS
- Main beam indicator lamp from the main beam relay (8a), see FUSES & CIRCUIT BREAKERS
