Control module inputs, bus

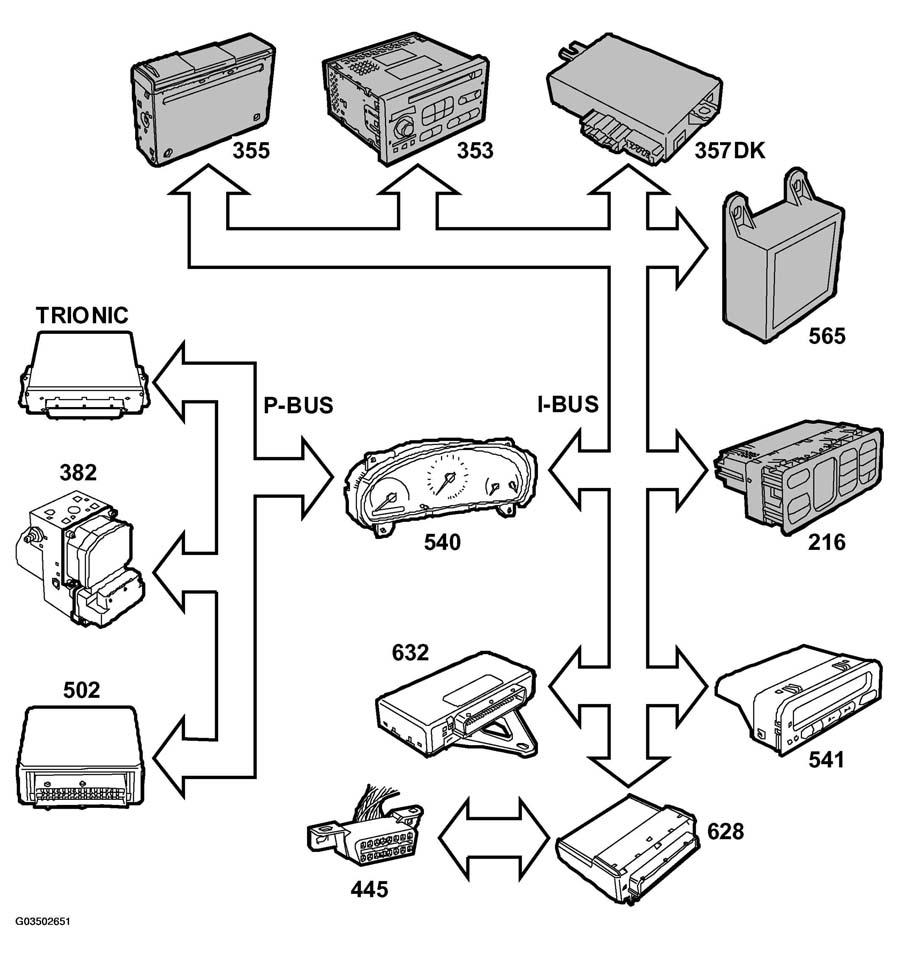

Fig 1: Identifying Control Module Inputs, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Info Disp Lamp from SID (541), see FUSES & CIRCUIT BREAKERS
Rheostat value from SID (541), see FUSES & CIRCUIT BREAKERS
Rheostat Night Panel from SID (541), see FUSES & CIRCUIT BREAKERS
Night Panel from SID (541), see FUSES & CIRCUIT BREAKERS
Display lighting from SID (541), see FUSES & CIRCUIT BREAKERS
Light intensity in cabin from SID (541), see FUSES & CIRCUIT BREAKERS
Driver's door from TWICE (632), see FUSES & CIRCUIT BREAKERS
Passenger door from TWICE (632), see FUSES & CIRCUIT BREAKERS
Rear left door from TWICE (632), see FUSES & CIRCUIT BREAKERS
Rear right door from TWICE (632), see FUSES & CIRCUIT BREAKERS
Boot lid/tailgate from TWICE (632), see FUSES & CIRCUIT BREAKERS
Steering wheel location from TWICE (632). FUSES & CIRCUIT BREAKERS
Left direction indicator from DICE (628), see FUSES & CIRCUIT BREAKERS
Right direction indicator from DICE (628), see FUSES & CIRCUIT BREAKERS
Rear fog lights from DICE (628), see FUSES & CIRCUIT BREAKERS
Check Engine Lamp from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
Shift Up Lamp from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
TURBO gauge from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
CRUISE Lamp from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
Fuel consumed since start from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
Engine speed from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
Coolant temperature from T7 (430b/589b), see FUSES & CIRCUIT BREAKERS
Wheel speed from TC/ABS (382) FUSES & CIRCUIT BREAKERS
Selector lever position from TCM (502b), see FUSES & CIRCUIT BREAKERS
Check Gearbox lamp from TCM (502b), see FUSES & CIRCUIT BREAKERS
SPORT from TCM (502b), see FUSES & CIRCUIT BREAKERS
WINTER lamp from TCM (502b), see FUSES & CIRCUIT BREAKERS
ABS warning lamp from TC/ABS (382), see FUSES & CIRCUIT BREAKERS
TCS OFF indicator lamp from TC/ABS (382), see FUSES & CIRCUIT BREAKERS
TCS indicator lamp from TC/ABS (382), see FUSES & CIRCUIT BREAKERS
