Test readings, control module connections: Remember:

Note the test conditions and use common sense when assessing the test result.
The test readings presented are with the ignition ON unless otherwise stated.
First check that the control module has a power supply and is grounded.
Then check all sensor inputs and signals from other systems.
Finally check the control module outputs. Remember that the test readings do not indicate whether the actuator is working.
If any reading is not OK, consult the wiring diagram to trace the leads, connectors or components which should be checked more thoroughly.
The specified test readings refer to those obtained with a calibrated Fluke 88/97.
The test values %(+) and ms(+) indicate the pulse ratio and pulse duration of the signal. A test instrument for measuring pulse ratio and pulse width must be used. The (+) sign indicates a positive trigger pulse, TRIG+.

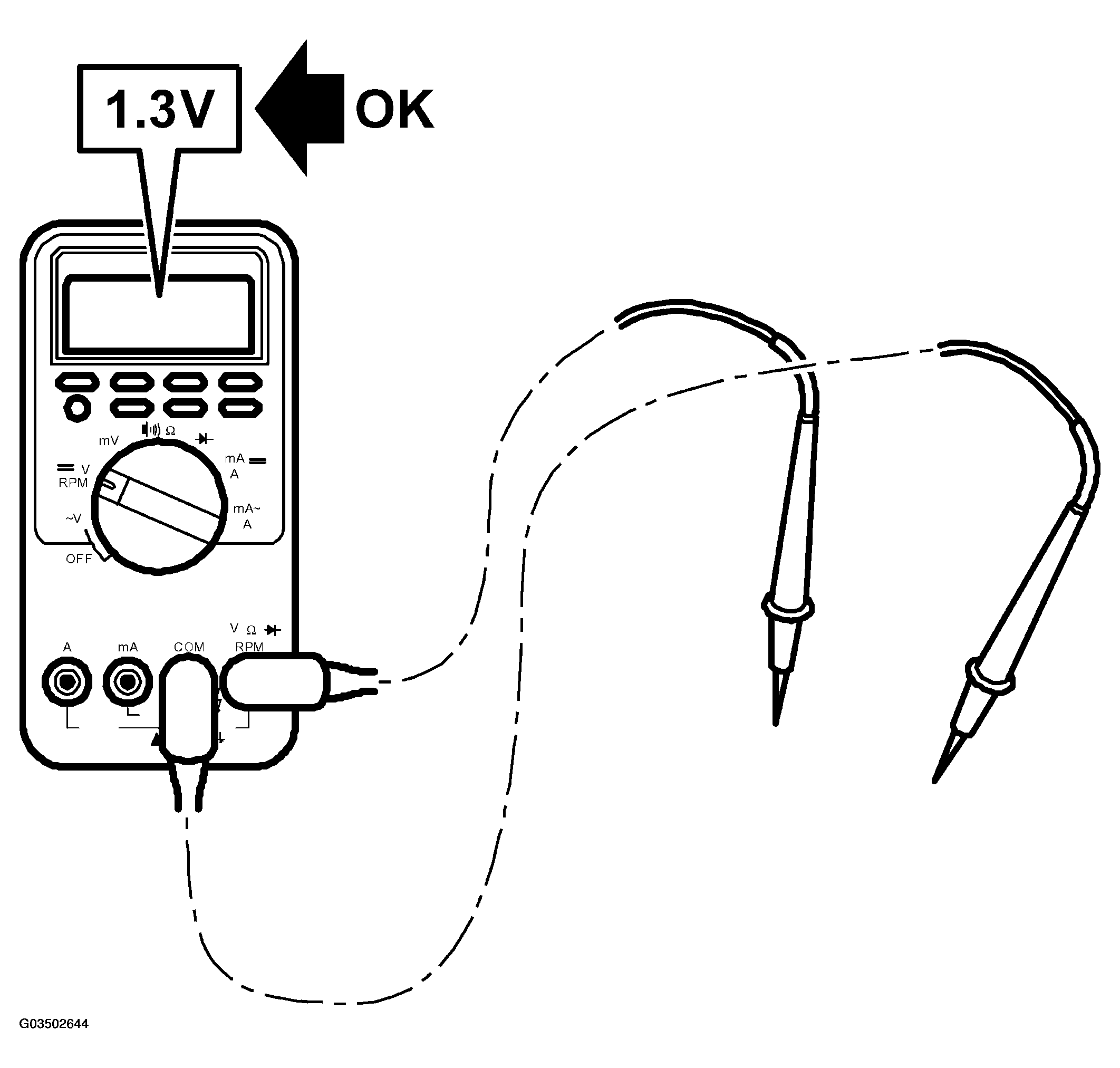

Fig 1: Identifying Test Readings
Courtesy of SAAB-SCANIA OF AMERICA, INC.
