Warning and Indicator lamps controlled by main instrument unit: Notes

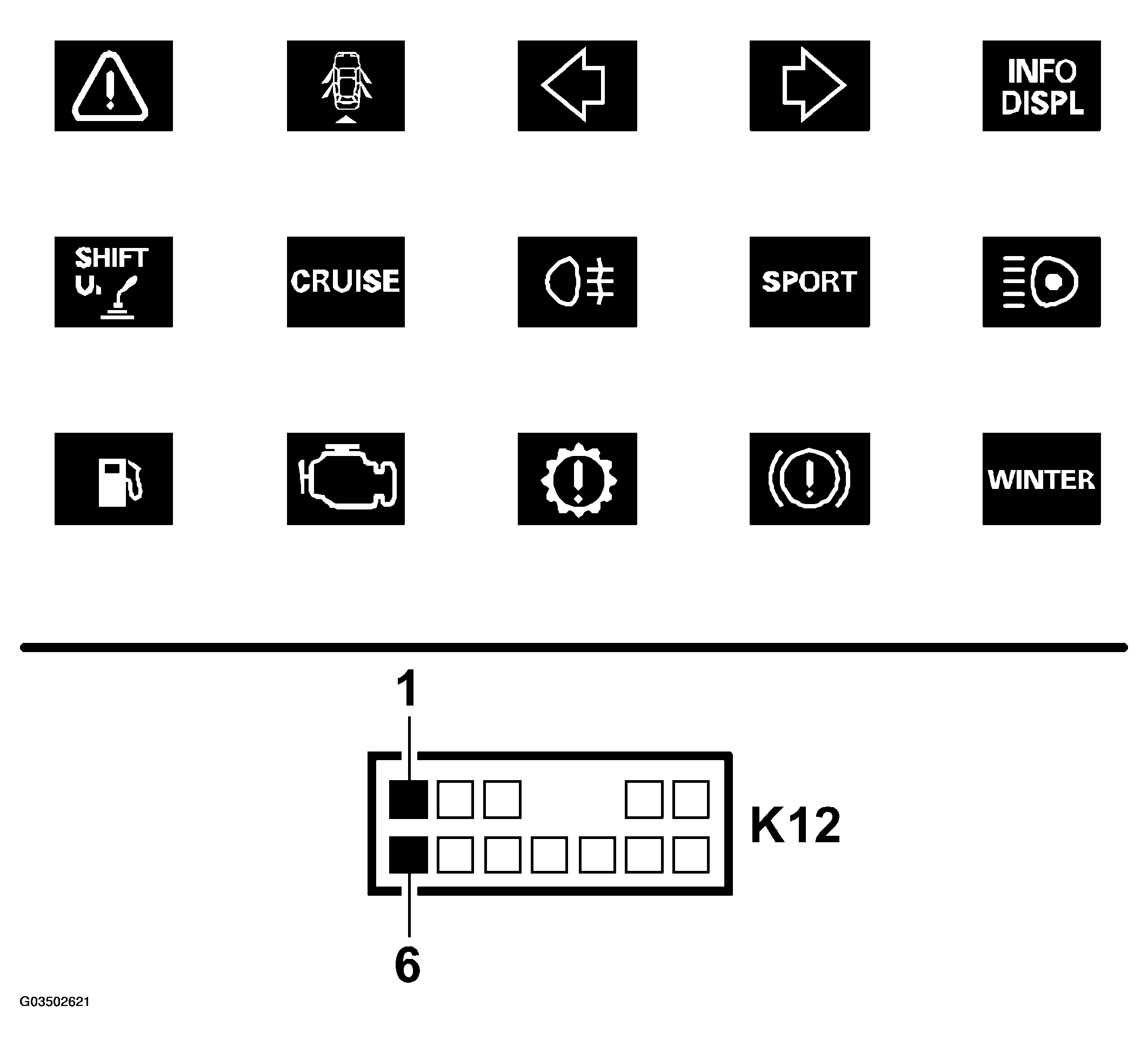

Fig 1: Identifying Warning And Indicator Lamps Controlled By Main Instrument Unit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

This applies to the following lamps:

• Central warning lamp
• Door indicator lamp with associated doors
• Direction indicator repeater lamp, LH
• Direction indicator repeater lamp, RH
• Indicator lamp INFO DISPL
• Indicator lamp, rear fog light
• Selector lever position indicator lamps (P, R, N, 3, 2, 1)
• Fuel reserve indicator lamp
• Warning lamp, brake fluid level
