Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Main Instrument Panel, Petrol >> Component location >> Main instrument unit for petrol cars (540d) >> K20

Main instrument unit for petrol cars (540d): K20

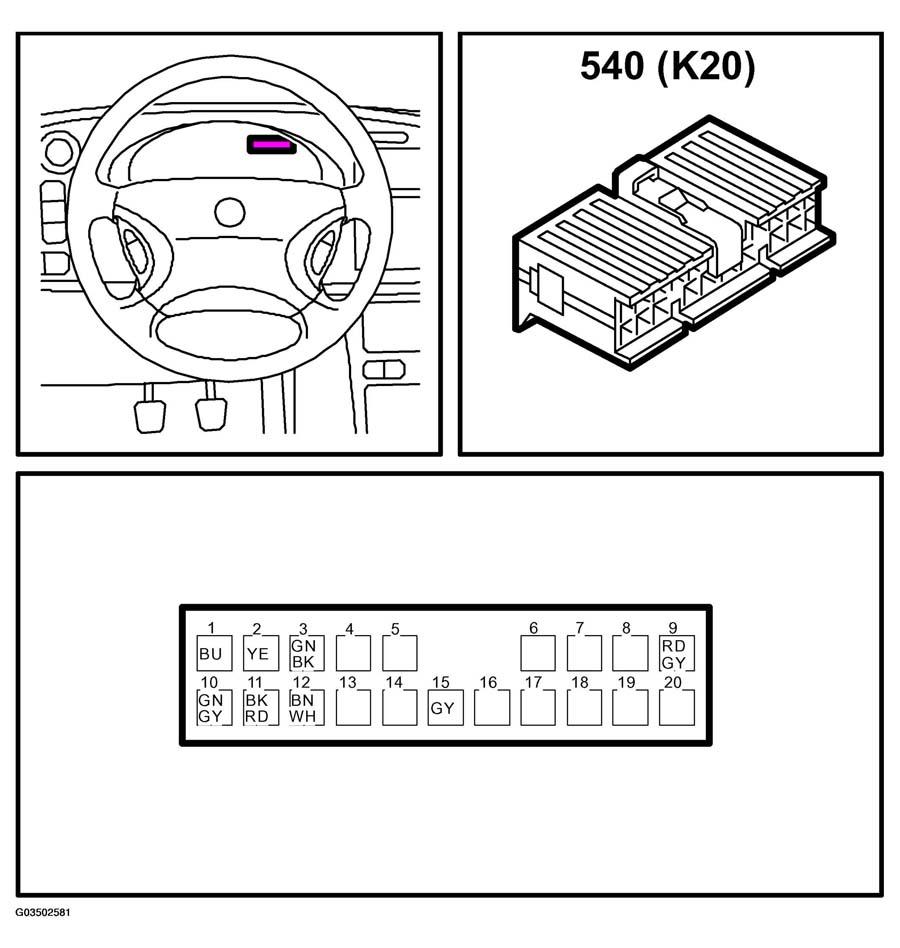

Fig 1: Identifying Main Instrument Unit For Petrol Cars (K20) Pinouts And Location

G03502581

Courtesy of SAAB-SCANIA OF AMERICA, INC.
