B. Connected components on RHD cars

CONNECTED COMPONENTS ON RHD CARS

	Via crimp J94
36	Motor, ventilation fan (not ACC)
42	Level switch, brake fluid
220	Control unit, ventilation fan
282	Switch, headlamp beam adjustment
375	Connection, mobile telephone
432	Relay, washer fluid pump

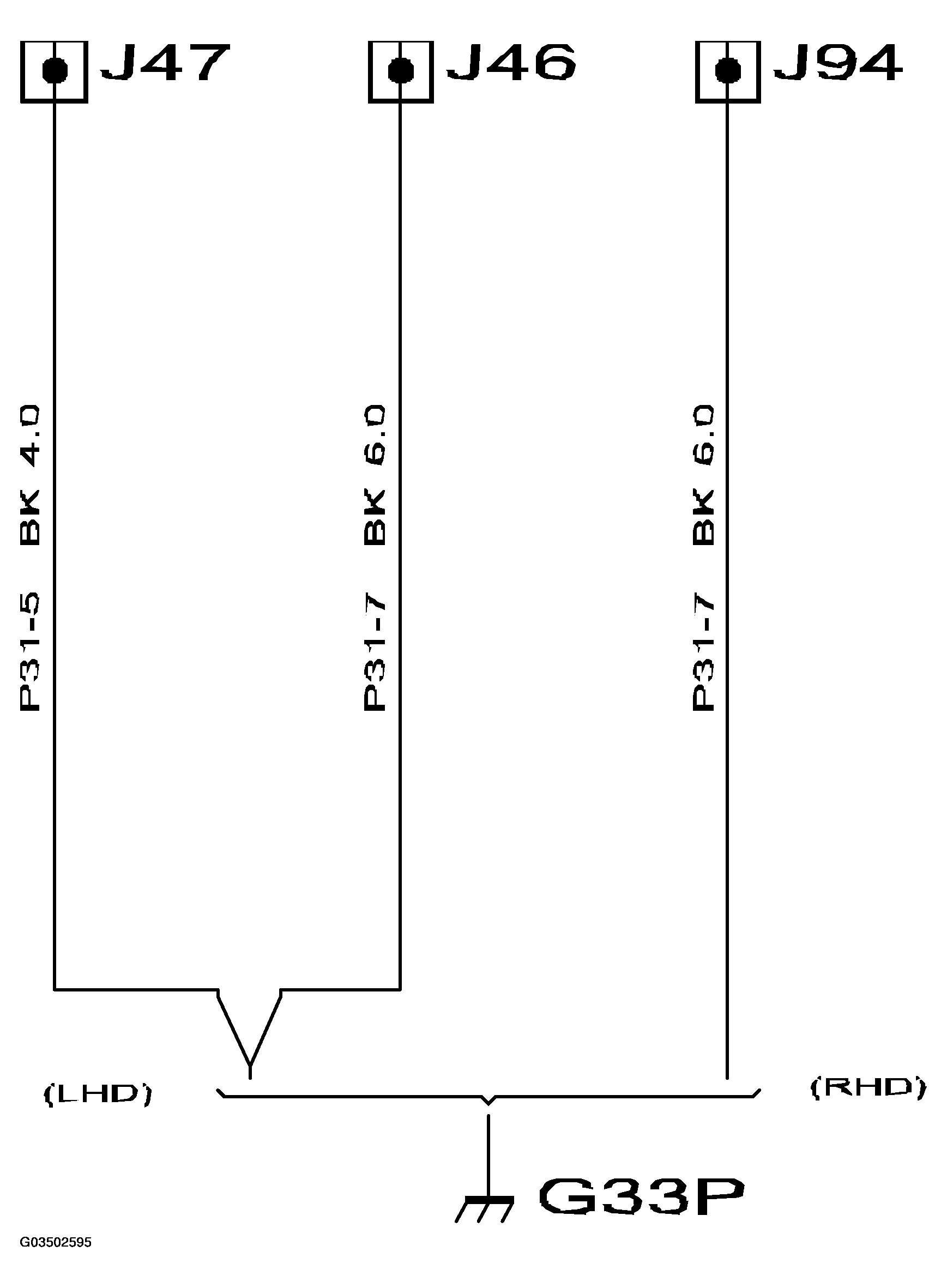

Fig 1: Identifying Grounding Point G33P Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
