Home >> Saab >> 2001 >> 9-3 Base, 4D Hatchback, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Main Instrument Panel, Petrol >> Component location >> Generator (2) >> Petrol engine

Petrol engine

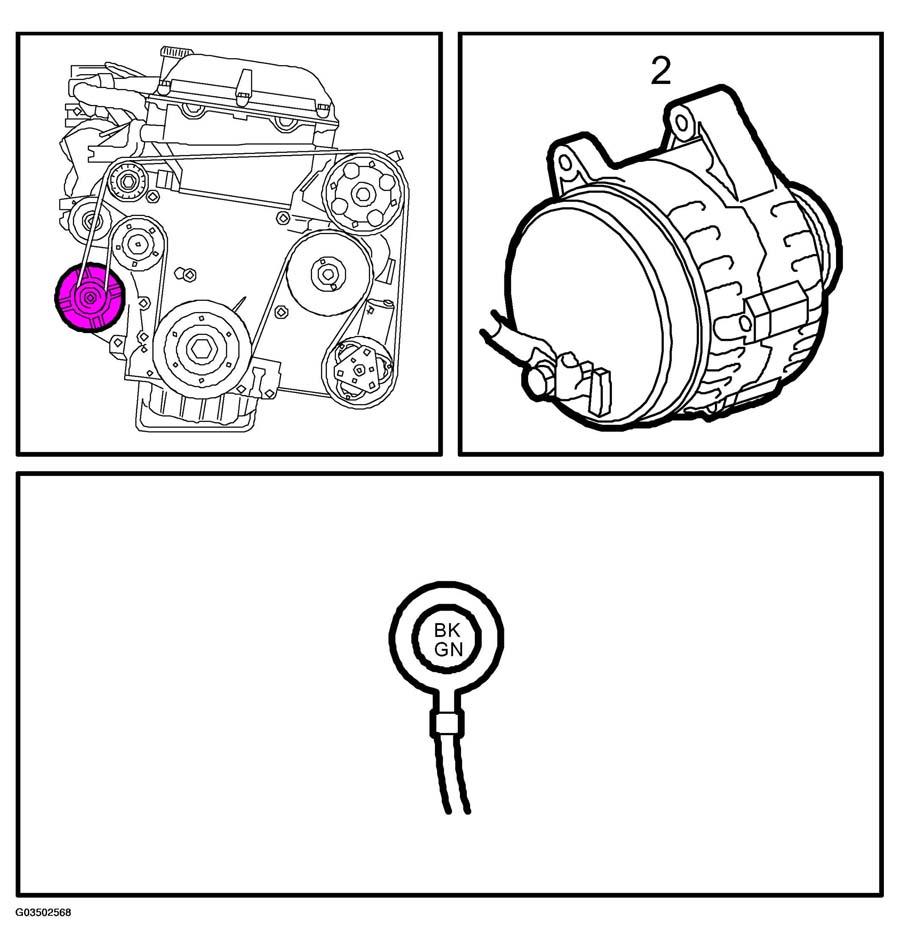

Fig 1: Identifying Generator Terminals (Petrol Engine)
G03502568Courtesy of SAAB-SCANIA OF AMERICA, INC.

Diesel engine

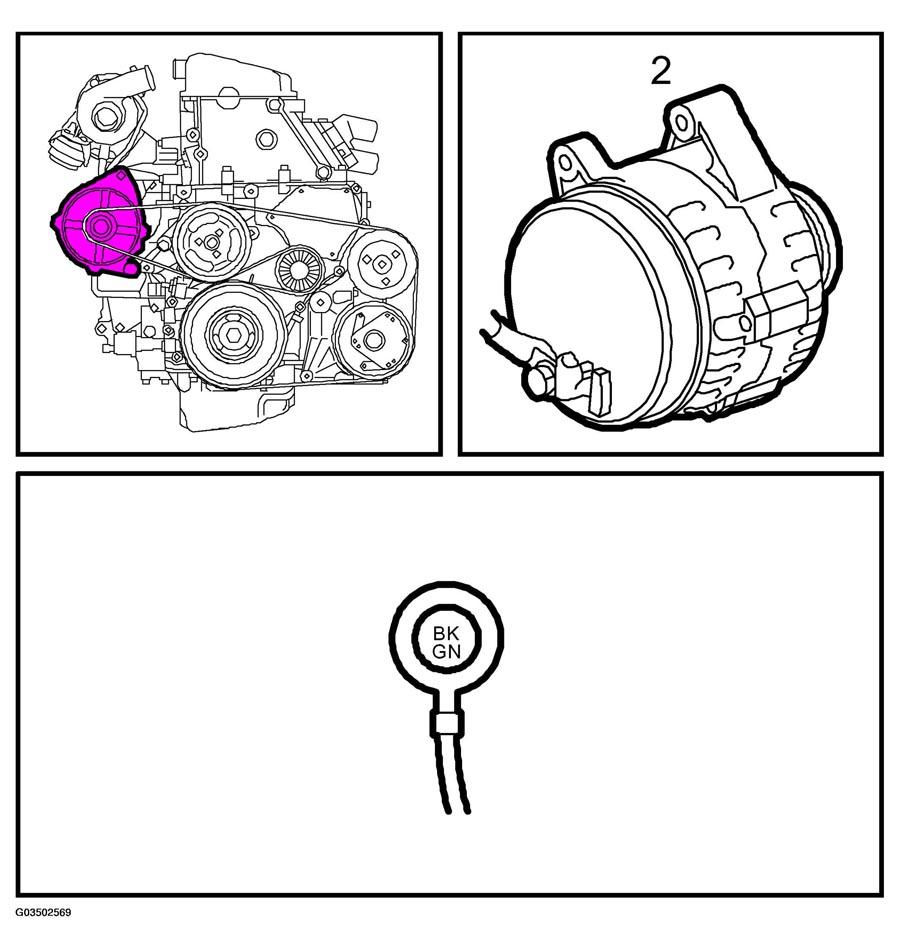

Fig 2: Identifying Generator Terminals (Diesel Engine)
G03502569Courtesy of SAAB-SCANIA OF AMERICA, INC.
