To remove

  1. Remove the main instrument unit, see MAIN INSTRUMENT UNIT
  2. Remove the instrument glass, seven lock tabs.

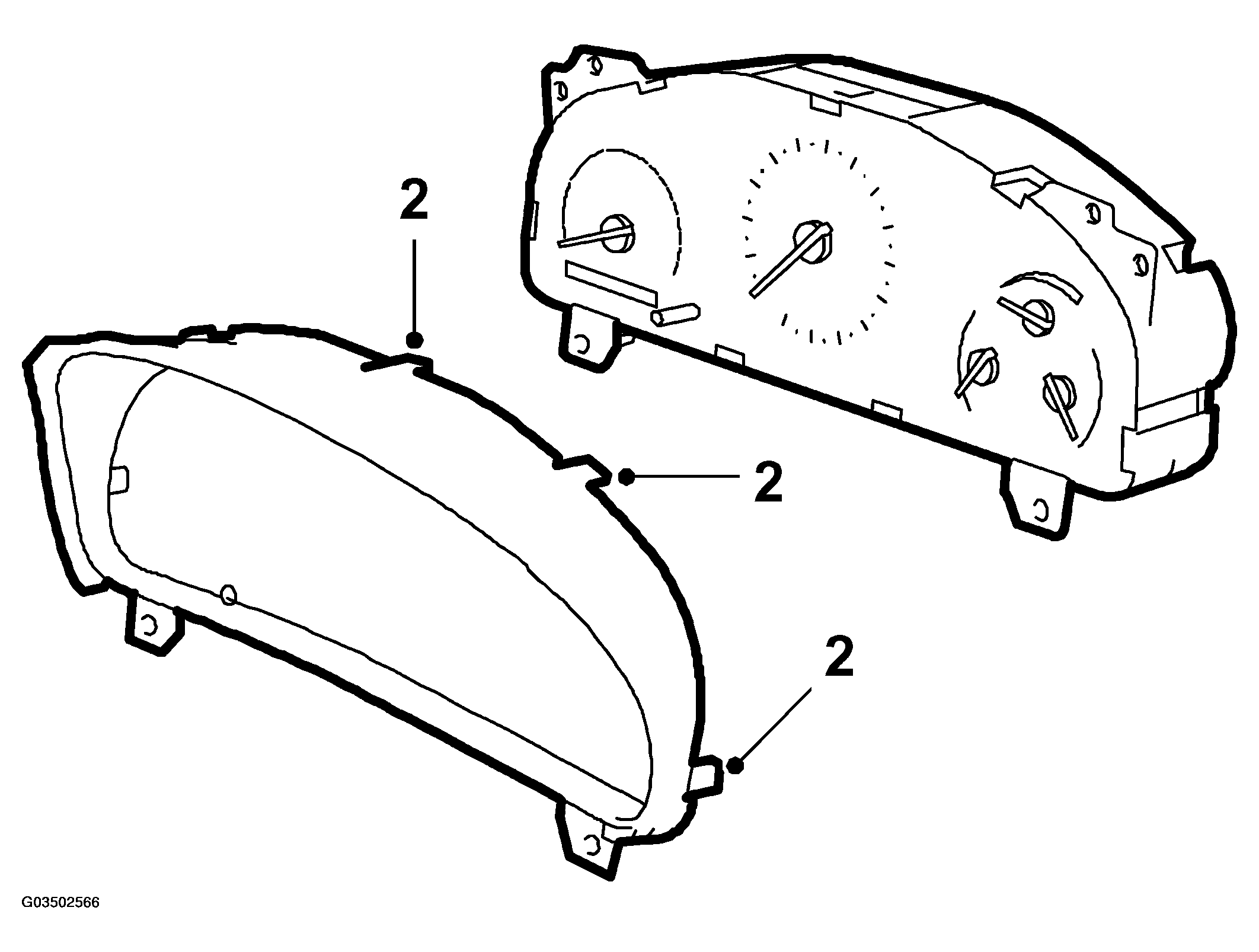

    3. Fig 1: Illustration For Step 2
    G03502566Courtesy of SAAB-SCANIA OF AMERICA, INC.
