Electrically operated soft top opening (Part 2/2): Notes

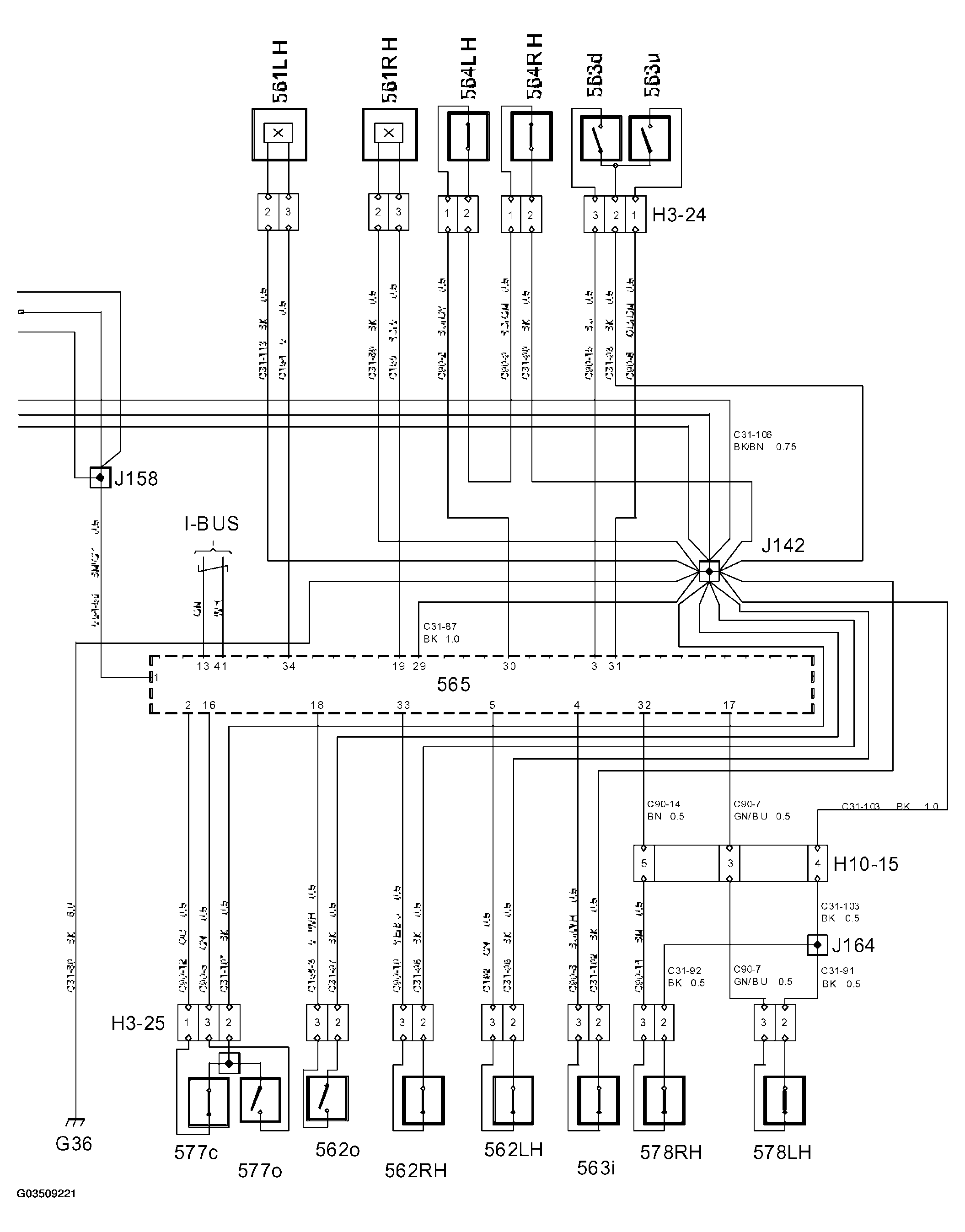

Fig 1: Soft Top Opening Circuit Diagram (Part 2/2)

G03509221

Courtesy of SAAB-SCANIA OF AMERICA, INC.
