Electric window lifts, convertible (Part 1/2): Notes

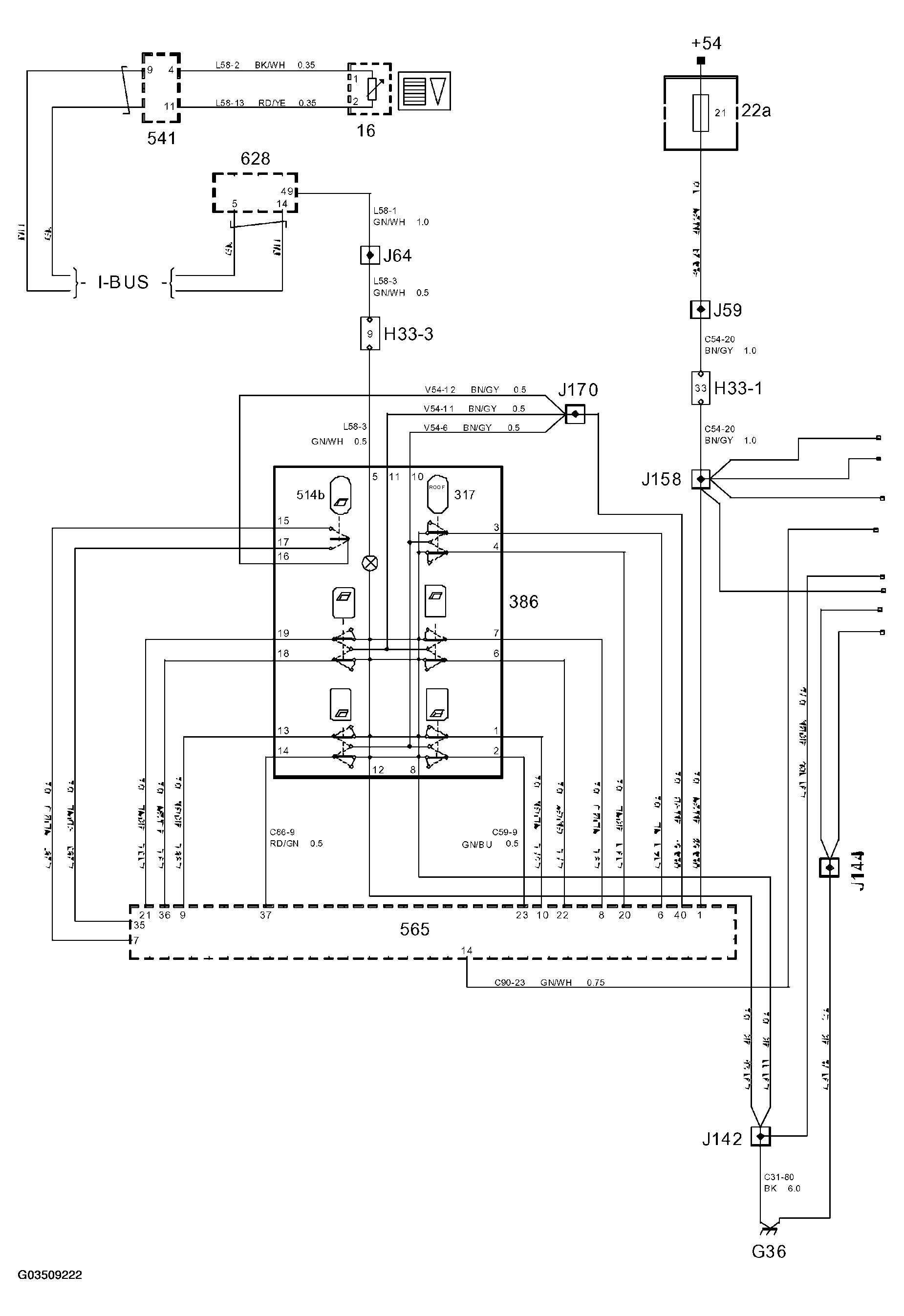

Fig 1: Convertible Window Lifts Circuit Diagram (Part 1/2)

G03509222

Courtesy of SAAB-SCANIA OF AMERICA, INC.
