9 Fifth bow latches lock

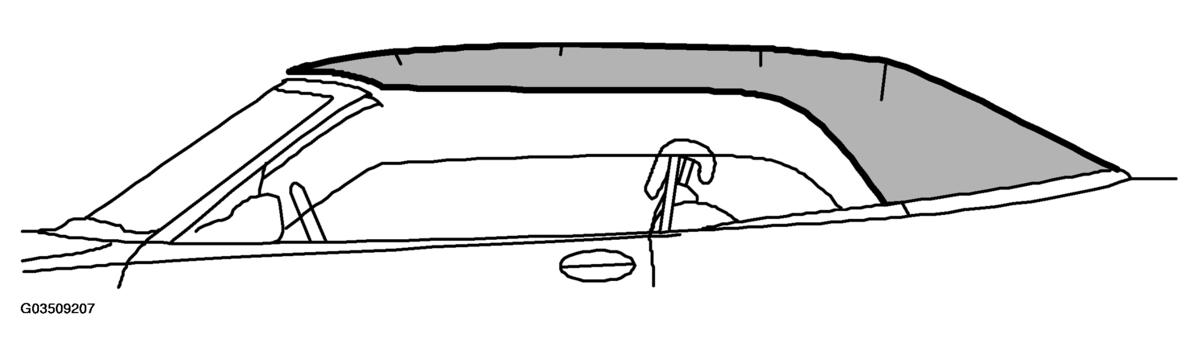

Fig 1: Identifying Fifth Bow Latches Lock Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Fifth bow latch, left	OFF changes to ON
Fifth bow latch, right	OFF changes to ON

The fifth bow latches lock and the relay for the fifth bow latch motor assumes the following condition.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Relay for fifth bow latch motor	OFF changes to LOCK
