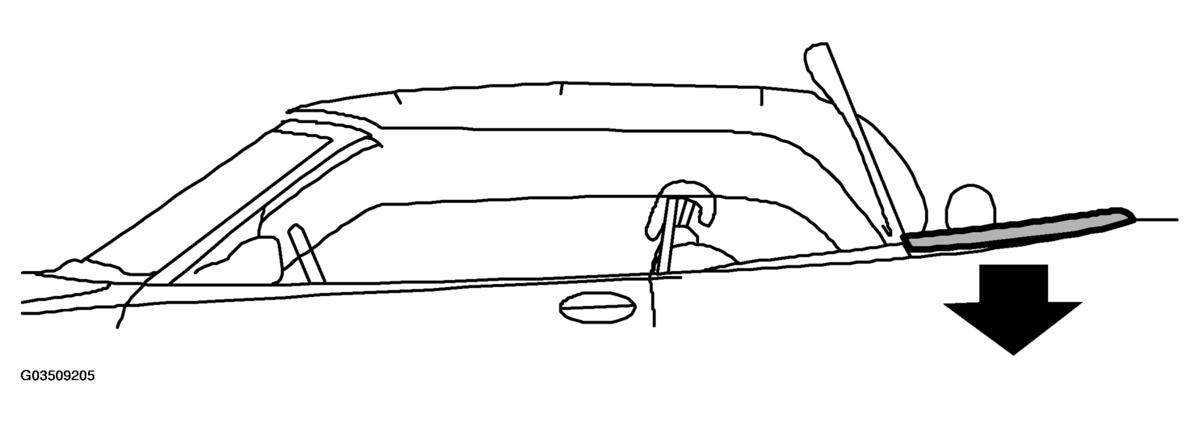

7 Soft top cover latches lock
SWITCH/MICROSWITCH CONDITION SPECIFICATIONS
| Switch/Microswitch | Condition |
|---|---|
| Soft top cover latch, left | OPEN changes to CLOSED |
| Soft top cover latch, right | OPEN changes to CLOSED |
The soft top cover latches lock
FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS
| Pump, valves, relay for fifth bow latch motor | Condition |
|---|---|
| Valve 3, fifth bow cylinder up | ON changes to OFF |
