6 Soft top cover lowered

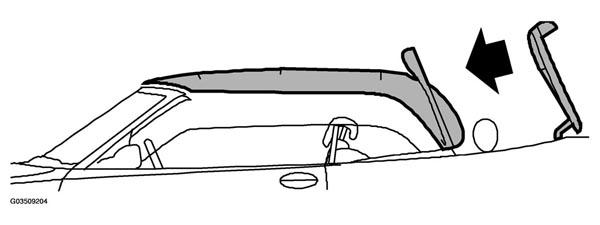

Fig 1: Identifying Soft Top Cover Lowered Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Soft top cover cylinder, up	ON changes to OFF

The soft top cover is lowered and the pump, valves and relay for the fifth bow latch motor assume the following conditions.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Pump, pull	ON changes to OFF
Pump, push	OFF changes to ON
Relay for fifth bow latch motor	Unlock changes to OFF
