5 Fifth bow raised and fifth bow latches unlock

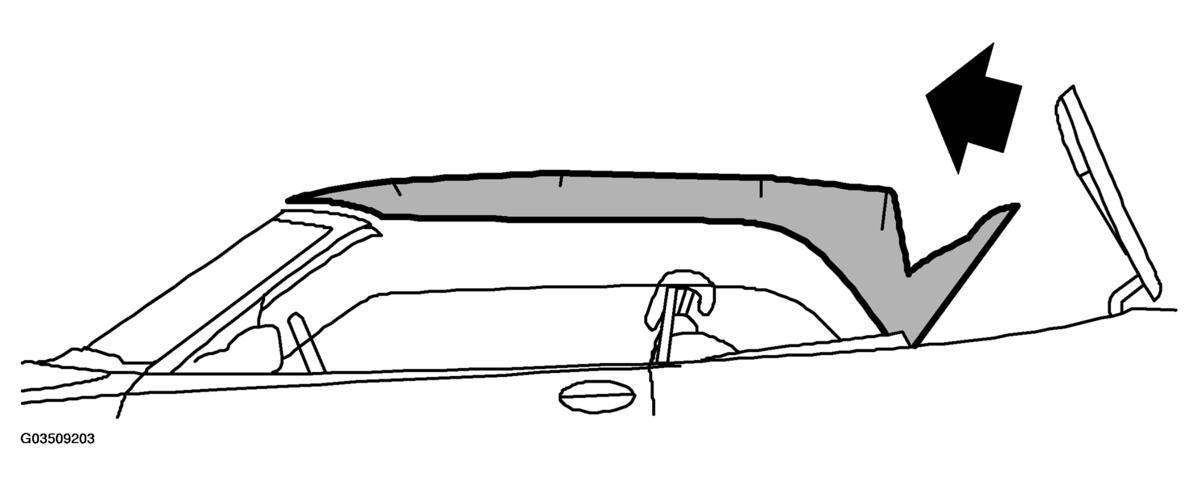

Fig 1: Identifying Fifth Bow Raised And Fifth Bow Latches Unlock Position

Courtesy of SAAB-SCANIA OF AMERICA, INC.

SWITCH/MICROSWITCH CONDITION SPECIFICATIONS

Switch/Microswitch	Condition
Fifth bow cylinder, up	OFF changes to ON
Fifth bow intermediate position	ON changes to OFF

The fifth bow is raised, the fifth bow latches unlock and the swivelling covers on the soft top cover are raised. The pump, valves and relay for the fifth bow latch motor assume the following conditions.

FIFTH BOW LATCH MOTOR PUMP, VALVES AND RELAY CONDITION SPECIFICATIONS

Pump, valves, relay for fifth bow latch motor	Condition
Valve 2, main cylinder up	ON changes to OFF
Valve 3, fifth bow cylinder up	OFF changes to ON
Relay for fifth bow latch motor	OFF changes to UNLOCK
